Zyxel GS1900-8HP [176/246] The dscp mapping screen

Chapter 28 Configuration: QoS

GS1900 Series User’s Guide

176

28.2.5 The DSCP Mapping Screen

Use this screen to configure the DSCP Mapping settings. Click Configuration > QoS > General

> DSCP Mapping to open this screen.

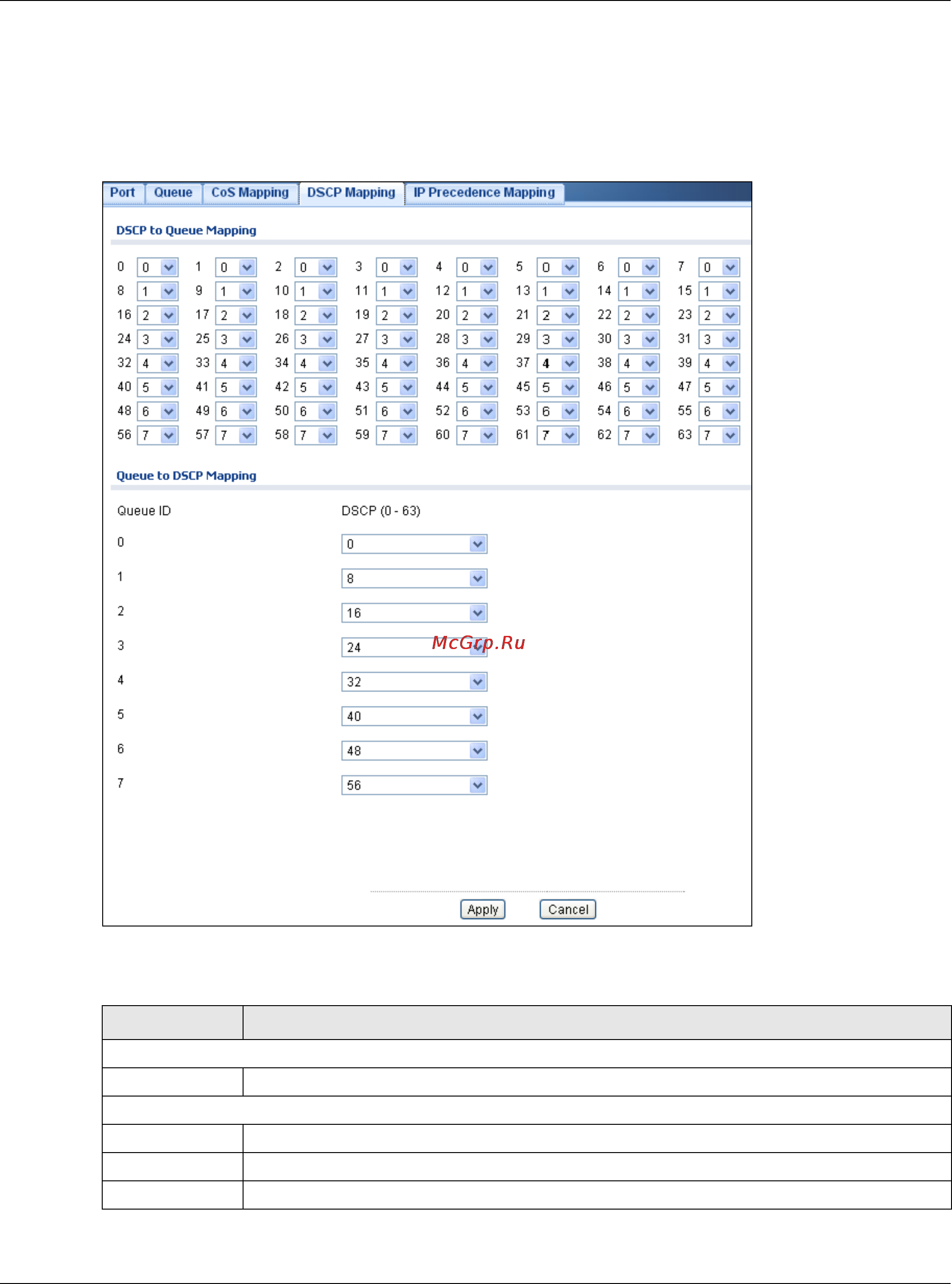

Figure 166 Configuration > QoS > General > DSCP Mapping

The following table describes the labels in this screen.

Table 132 Configuration > QoS > General > DSCP Mapping

LABEL DESCRIPTION

DSCP to Queue Mapping

Queue ID Displays the DSCP Queue ID value.

Queue to DSCP Mapping

DSCP (0-63) Select the DSCP mapping value from the dropdown list.

Apply Click Apply to save the changes.

Cancel Click Cancel to discard the changes.
