Инструкция по эксплуатации Страница: 52

Zyxel GS1900-8HP [52/246] Monitor system

GS1900 Series User’s Guide

CHAPTER 7

Monitor: System

7.1 Overview

This section provides information for System in Monitor. Use the System screens to view general

Switch settings.

7.1.1 What You Can Do in this Chapter

•The IP screen (Section 7.2 on page 52) displays IPv4 and IPv6.

•The Information screen (Section 7.3 on page 54) displays the system information.

7.2 IP

The Switch needs an IP address for it to be managed over the network. The factory default IP

address is 192.168.1.1. The subnet mask specifies the network number portion of an IP address.

The factory default subnet mask is 255.255.255.0.

7.2.1 IPv4

Use this screen to view the Switch’s IPv4 information. Click Monitor > System > IP > IPv4 to

open this screen.

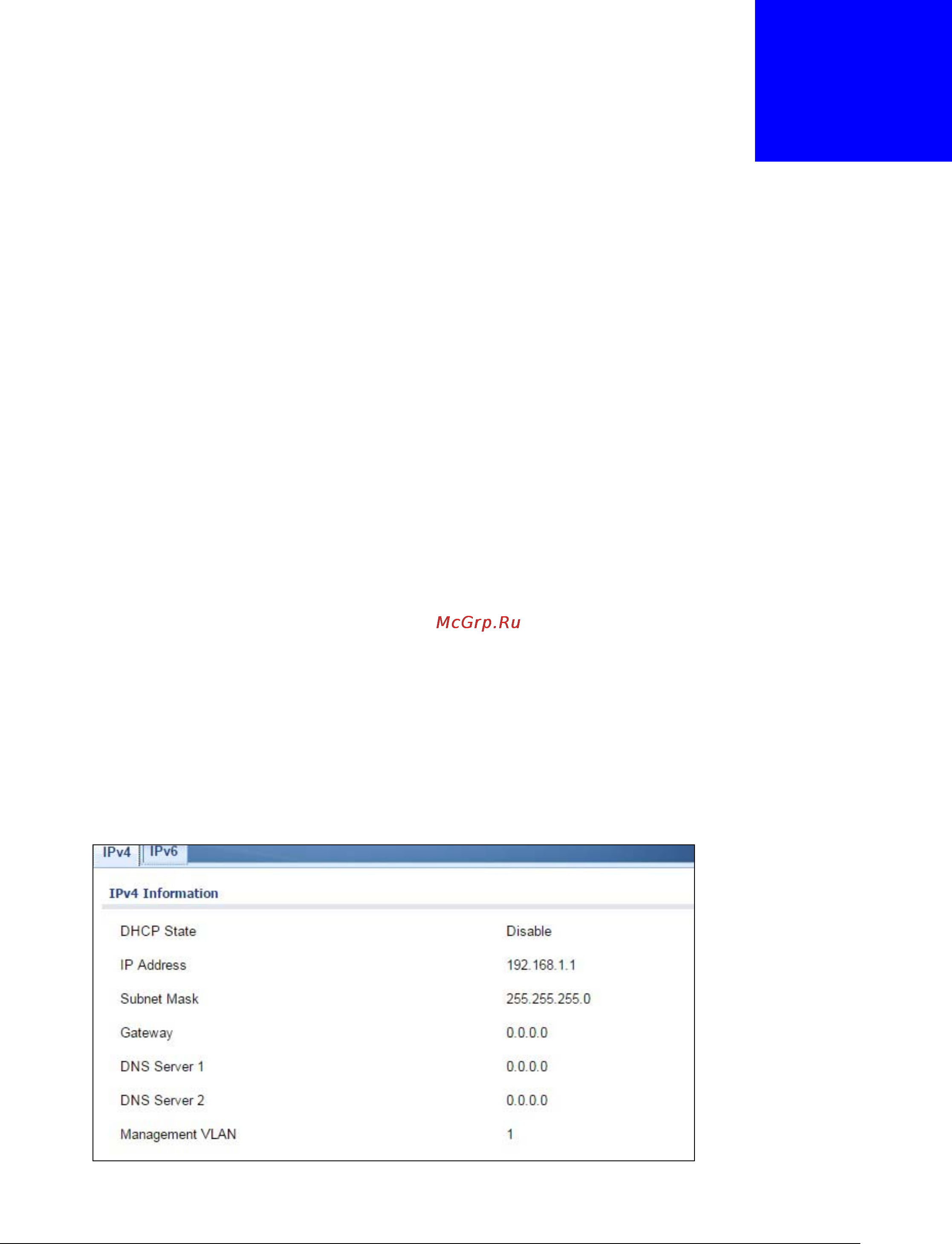

Figure 47 Monitor > System > IP > IPv4
