Chapter 17 File Manager
NWA3000-N Series CLI Reference Guide
114

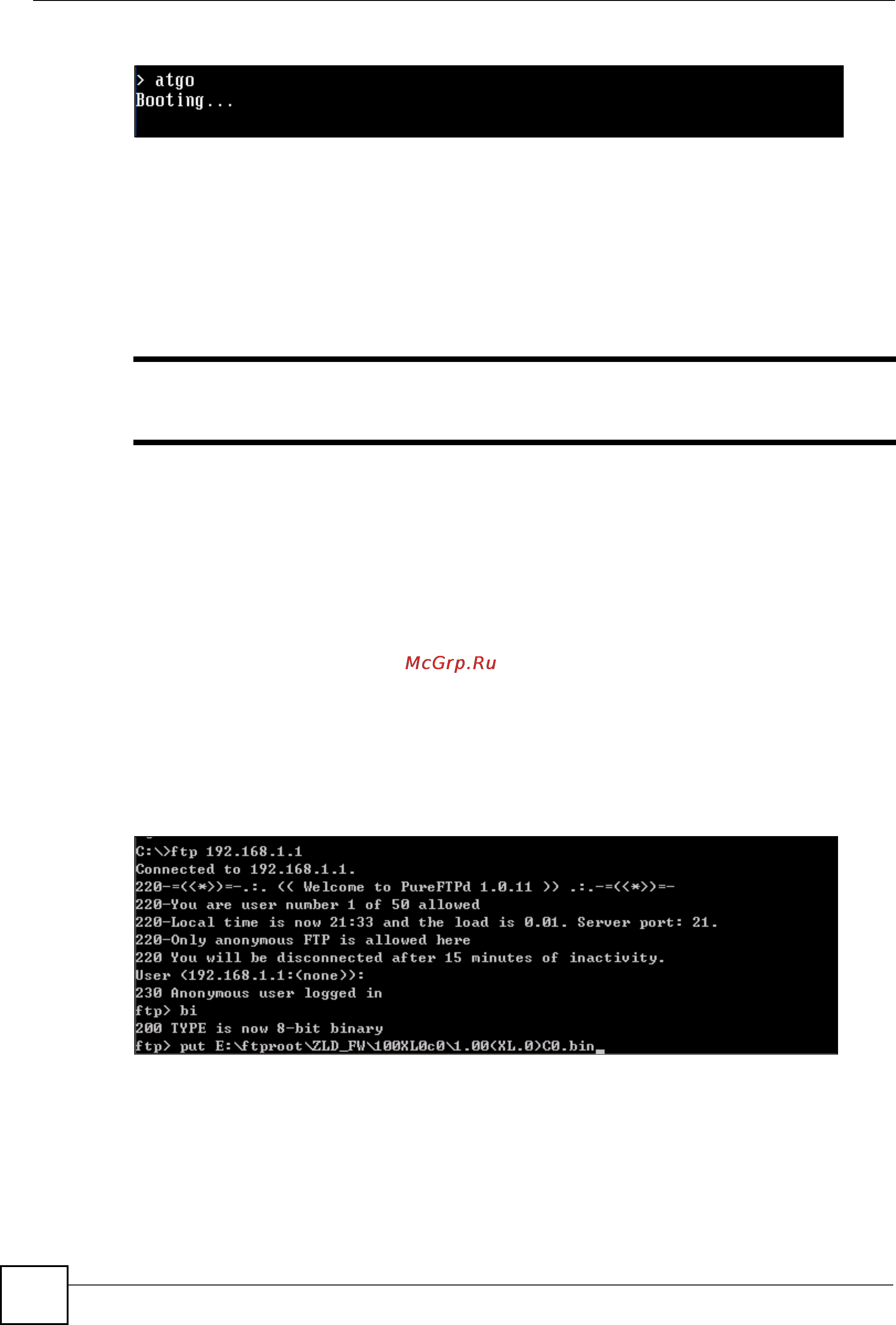

Figure 24 atgo Debug Command
17.10 Restoring the Firmware
This procedure requires the NWA3000-N Series AP’s firmware. Download the firmware
package from www.zyxel.com and unzip it. The firmware file uses a .bin extension, for
example, "1.01(XL.0)C0.bin". Do the following after you have obtained the firmware file.
" This section is not for normal firmware uploads. You only need to use this
section if you need to recover the firmware.
1 Connect your computer to the NWA3000-N Series AP’s port 1 (only port 1 can be used).
2 The NWA3000-N Series AP’s FTP server IP address for firmware recovery is
192.168.1.1, so set your computer to use a static IP address from 192.168.1.2
~192.168.1.254.
3 Use an FTP client on your computer to connect to the NWA3000-N Series AP. For
example, in the Windows command prompt, type ftp 192.168.1.1. Keep the
console session connected in order to see when the firmware recovery finishes.
4 Hit enter to log in anonymously.
5 Set the transfer mode to binary (type bin).
6 Transfer the firmware file from your computer to the NWA3000-N Series AP. Type put
followed by the path and name of the firmware file. This examples uses put
e:\ftproot\ZLD FW \1.01(XL.0)C0.bin.
Figure 25 FTP Firmware Transfer Command
7 Wait for the file transfer to complete.
