AWK-6222 User’s Manual Software Installation/Configuration

5-3

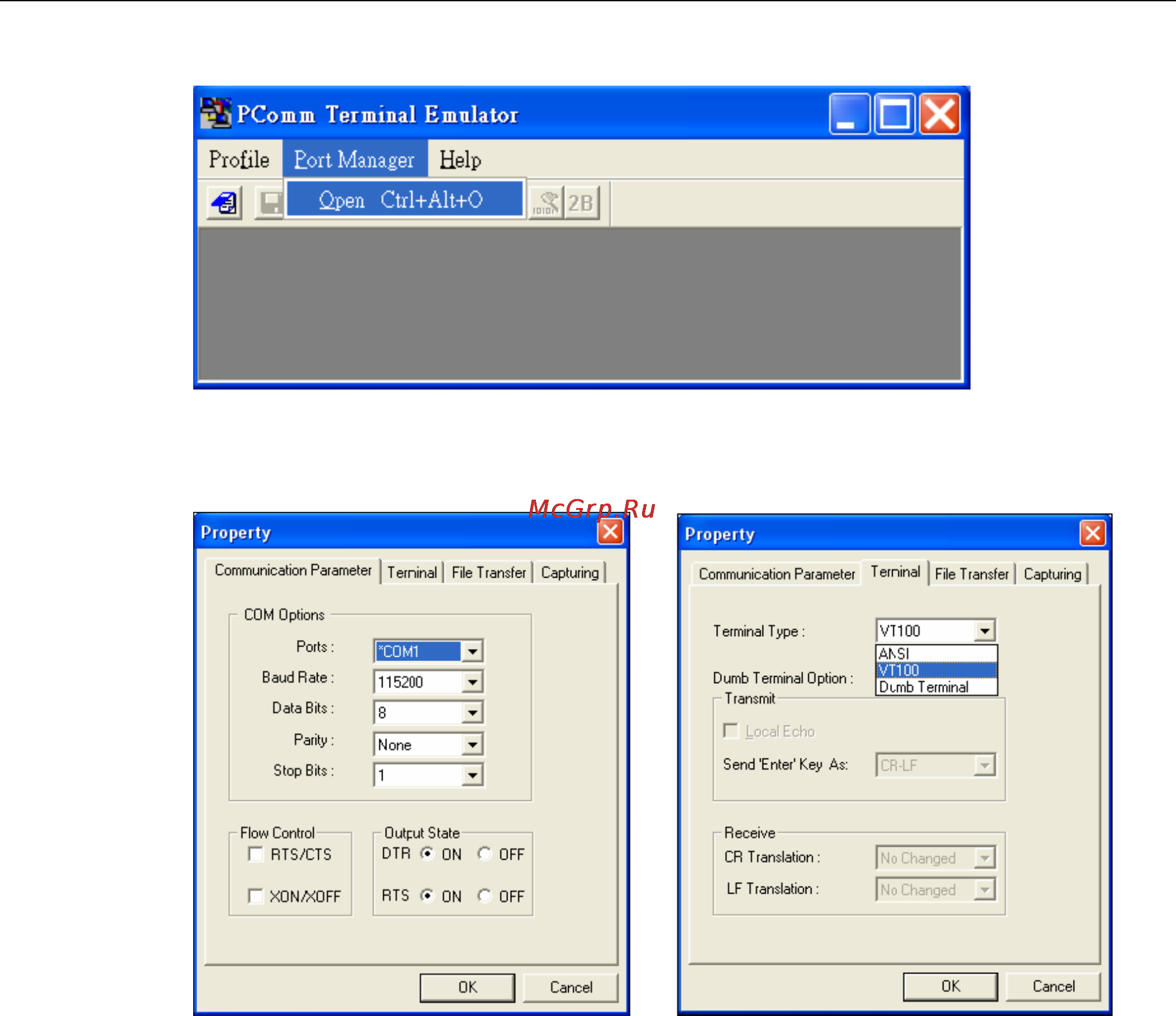

2. Select Open under Port Manager to open a new connection.

3. The Communication Parameter page of the Property window opens. Select the appropriate

COM port for Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity,

and 1 for Stop Bits.

4. Click on the Terminal tab, and select VT100 (or ANSI) for Terminal Type. Click on OK to

continue.
