Click&Go V2 Click&Go V2 Developing Process
3-7
Temperature Input Mode Selection
Thermocouple (TC) and resistance temperature detector (RTD) sensors are mostly used to perform
temperature measurements. For Moxa ioLogik Active Ethernet I/O servers, selecting the temperature input
modes is equal to selecting the sensor types.
Mode Available
Number of
Temperature Input
Channels
Sensor Type Selection:
ioLogik E2260 6 RTD Pt100, Pt200, Pt500, Pt1000, JPt100, JPt200, JPt500,
JPt1000, Ni 100, Ni 200, Ni 500, Ni 1000, Ni 120, R
esistance
(1-310 mΩ), Resistance (1-620 mΩ), Resistance (1-1250
mΩ), Resistance (1-2200 mΩ)
ioLogik E2262 8 TC J, K, T, E, R, S, B, N Type and 78.126/39.062/19.532mV

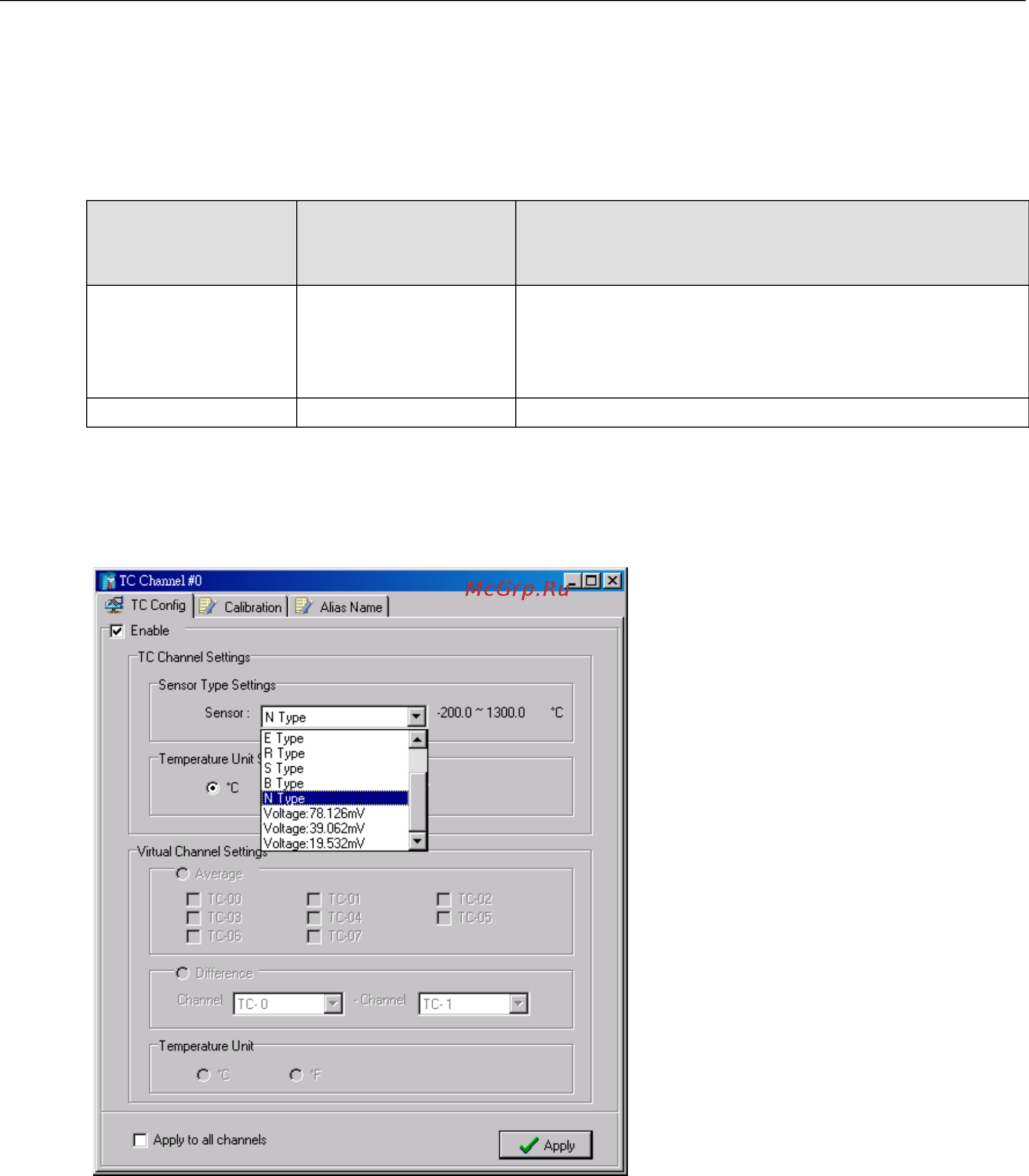

When logged in as an administrator, double click on a channel in the I/O Configuration tab to configure that
channel’s settings. A window will open with configuration options for that channel. Each temperature input
channel will be configured to support different types of sensors according to the RTD Channel Settings
(ioLogik E2260) or TC Channel Settings (ioLogik E2262).
