Click&Go V2 Click&Go Examples and Applications
4-19
Moxa Solution
The ioLogik E2242 is an Active Ethernet I/O server designed for mixed I/O applications. The 4 analog inputs are
able to connect to liquid level sensors based on either voltage or electric current, and the 12 built-in
configurable DIOs provide the best flexibility for connecting to multiple input switches or triggering pumps and
alarms. With the user-friendly Click&Go local control logic, users can easily program the ioLogik E2242 to act
as a front-end pump controller and alarm generator to control automatically the action of the pumps, generate
alarms, and send the most up-to-date status to the central SCADA system, or by e-mail to the field engineers.
Solution Benefits
Moxa’s ioLogik E2242 provided the sump pump control system with the following benefits:
• Click&Go’s easy IF-THEN-ELSE style control logic, which eliminates the need for a PLC or RTU
• Active reports via TCP/UDP/SNMP trap, and e-mail
• Relay count reports
• Compact size and cost-effectiveness
Additional Features
The ioLogik E2242 is also equipped with the following features:
• Scheduling function to set when to pump the wastewater
• Moxa’s Active OPC Server to connect ioLogik devices to the most popular SCADA systems

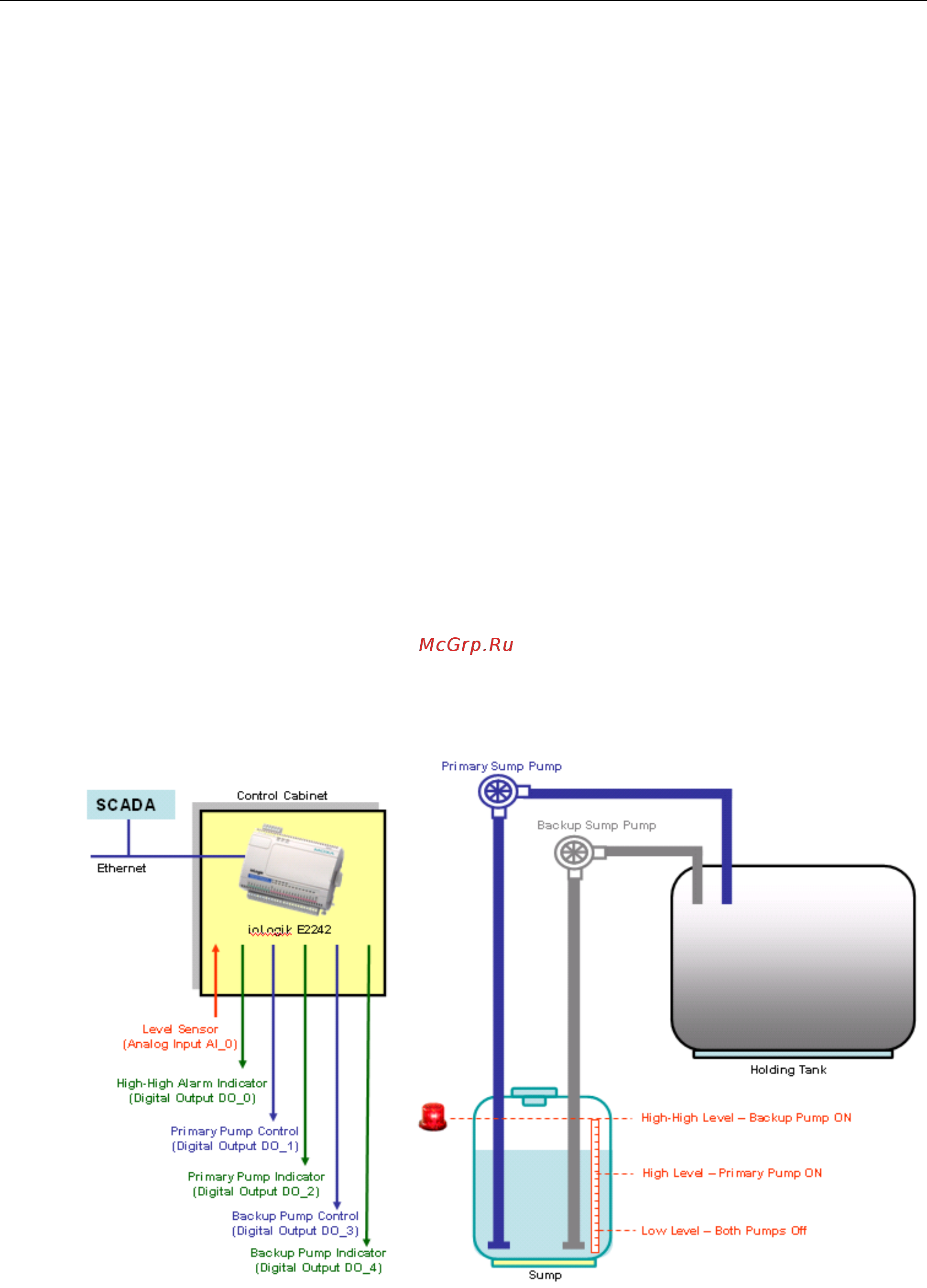

System Diagram
