Click&Go V2 Click&Go Examples and Applications
4-10
Output Module (192.168.127.3)
Rule 0: DI-0 at 192.168.127.154 mapped to DO-0
Rule 1: DI-1 at 192.168.127.154 mapped to DO-1
1. In ioAdmin, make sure that you have searched for and selected the correct ioLogik E2242 server, at IP
address 192.168.127.3. Also, make sure you are logged in on the Server Settings tab. Go to the
Click&Go Logic tab.
2. Double click #0 in the Rule-set. The Logic Configuration window will appear.
3. Make sure that Enable in the upper left hand corner is checked.

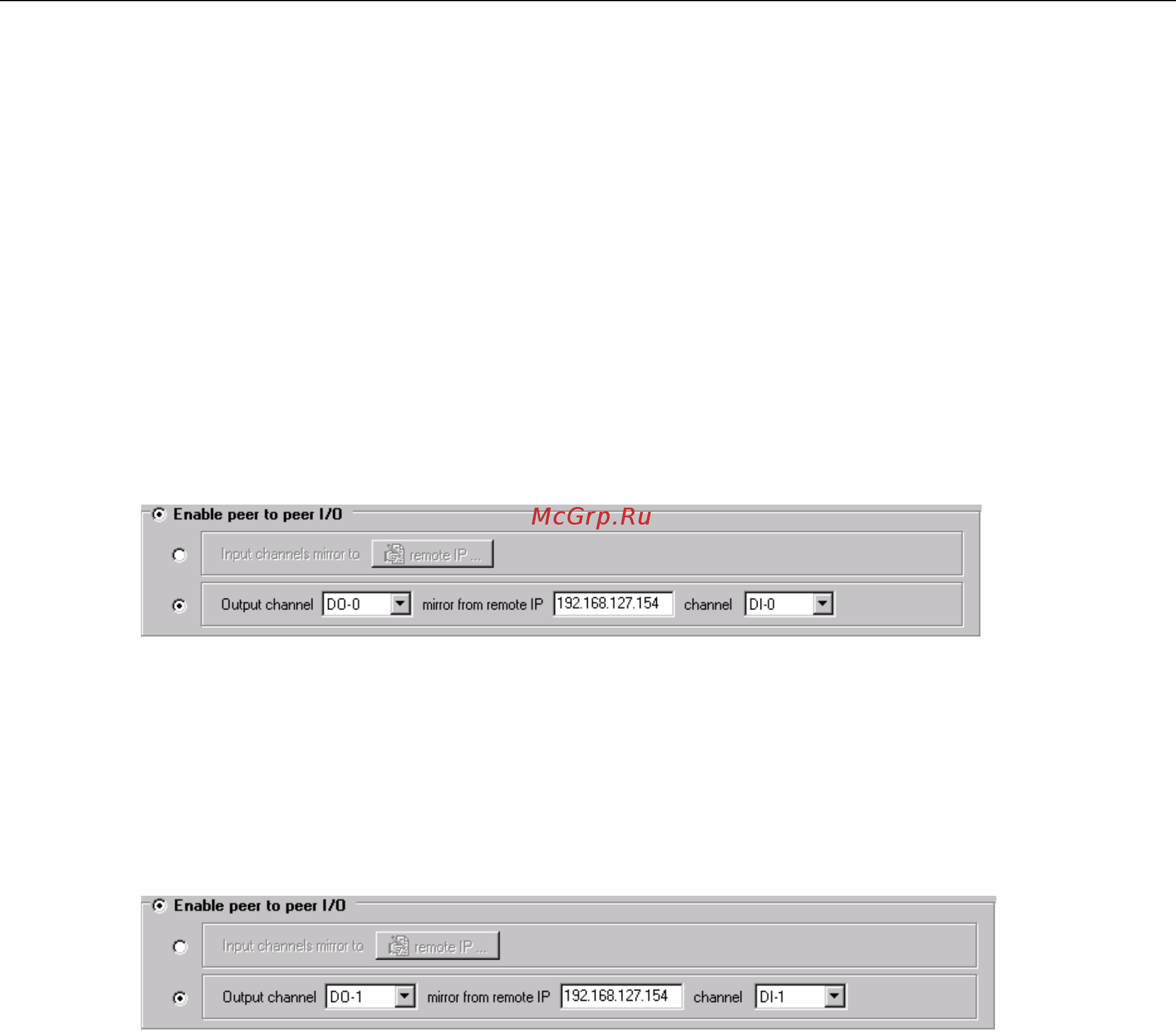

4. Select Enable peer-to-peer I/O.
5. Select Output channel, then select DO-0 for the first field, enter 192.168.127.154 for the second field,
and select DI-0 for the third field.
6. Click OK to close the Logic Configuration window.
7. Double click #1 in the Rule-set. The Logic Configuration window will appear.
8. Make sure that Enable in the upper left hand corner is checked.
9. Select Enable peer-to-peer I/O.
10. Select Output channel, then select DO-1 for the first field, enter 192.168.127.154 for the second field,
and select DI-1 for the third field.
11. Click OK to close the Logic Configuration window.
12. Click Download on the Rule-set Management Bar.
13. Select Yes when asked to restart and wait until the server has restarted and is back on-line.
14. Click Run on the Rule-set Management Bar. The RDY LED will be flashing green, showing that the ioLogik
is now operating as an Active Ethernet I/O server, using the rule-set that was just defined.
