Click&Go V2 Click&Go Examples and Applications
4-26
Programming Manners
1. Turn on the power switch remotely and start recording the counts.
2. Turn off the power switch remotely and stop recording the counts. Report the readings and reset the
counter.

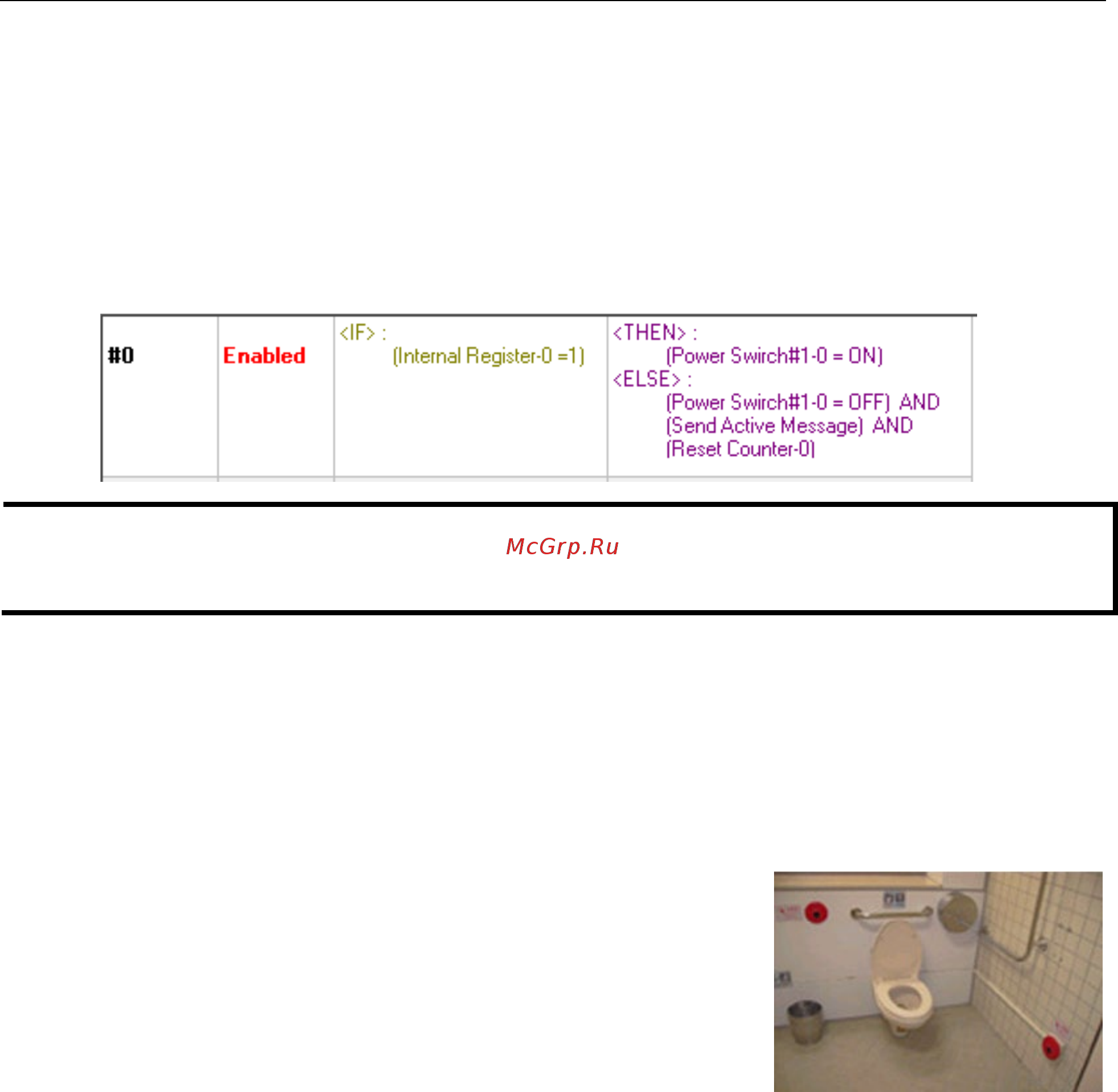

Click&Go Rule-set
NOTE
Internal Register
-
0 in this case is used to control the power switch attached to the digital output channel. The
control is done outside the ioLogik when running Click&Go logic. Refer to the appendix for the Modbus/TCP
Address table of the internal registe
rs.
Applications_7
The ioLogik E2210 handles the safety and alarm system of a public restroom.
Project Background
S
ecurity and safety systems in public facilities such as train stations,
museums, and movie theaters
, are increasingly incorporating medic
al
assistance, police
, and fire alarm
s for patrons to trigger in emergency
situations
. In particular, public restrooms are deploying emergency
alarm
systems
to assist women, handicapped patrons, and parents with
children.
Application Requirements
Several types of emergency push buttons are required for this application. In the women’s restroom, there
needs to be an individual emergency push button in each toilet stall and another one on the wall near the
entrance. Handicap stalls include two types of buttons. One type of button calls for medical assistance and is
located near the flush handle under a plastic covering. In case the patron falls down while moving between the
toilet and his wheelchair, suffers a heart attack, or is unable to get back up for any other reason, there is
another emergency button located near the floor to provide better assistance. In most cases, it is attached to
the other call button by 2 meters of expansion cable. The emergency button located near the door is designed
primarily for people walking by to report a fire alarm or accident.
After an emergency button is triggered, alarm lights will start flashing and the speaker will start broadcasting
for 30 to 60 seconds. This event will be reported to the control center as well. After receiving the alarm, the
control center can remotely turn off the alarm light outside the restroom. Finally, security personnel or
paramedics will arrive.
