Click&Go V2 Click&Go V2 Developing Process
3-29
AO

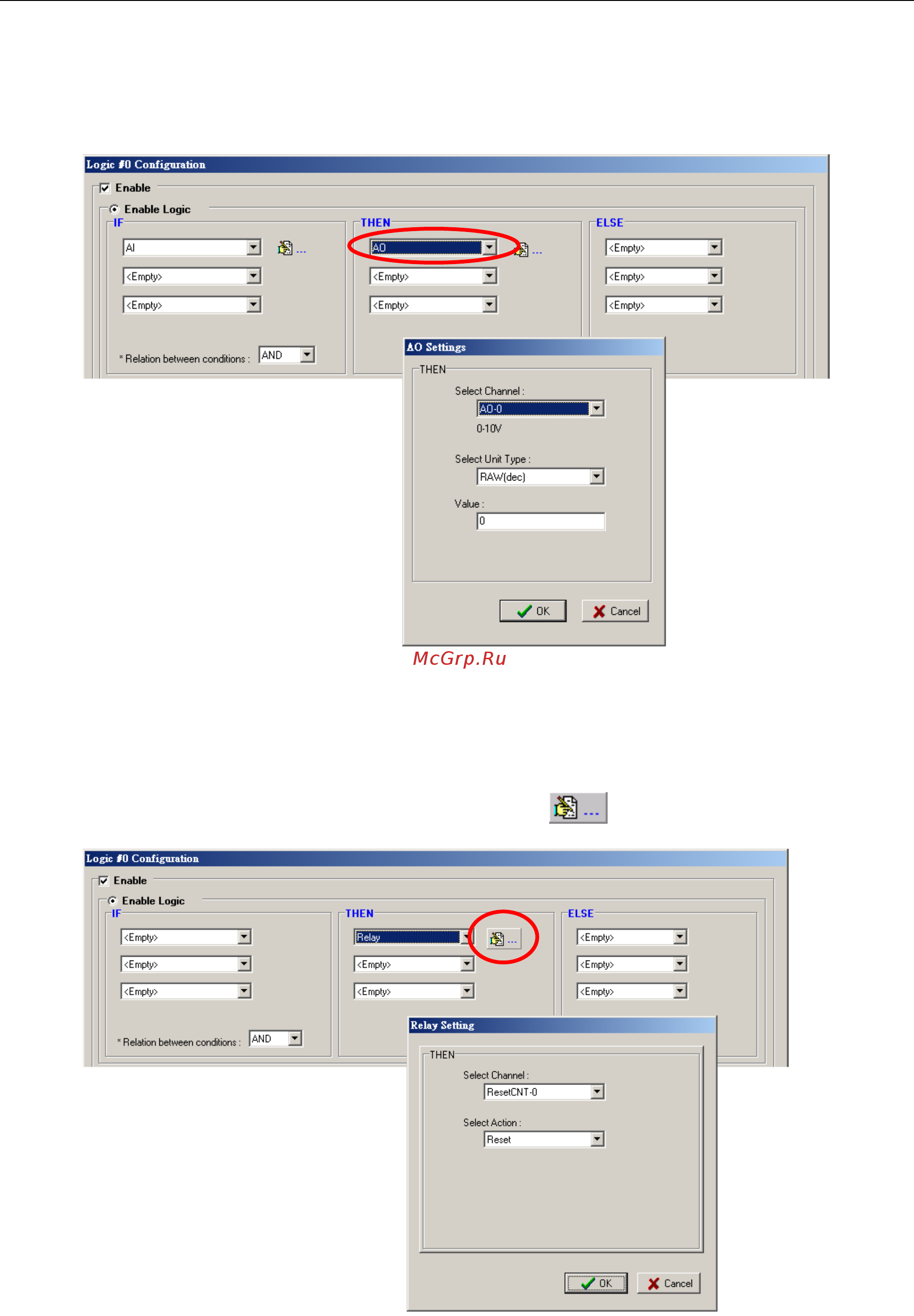

AO refers to the local control of the analog output channels, including voltage and current. Analog output can
be used to control the open angle of a valve of the movement of a solar panel.
Relay (Counts)
In the THEN/ELSE action, Relay refers to the current counts specifying how many times a relay has been
triggered. The counts are stored internally and can be cleared. “RESET” is the only operator. Select the
THEN/ELSE action to Relay and click on the property button ( ) to enter the Relay Settings window.
