Click&Go V2 Click&Go V2 Developing Process
3-20
Internal Register
Internal Register represents a status flag to link the status of the first logic to the second one. Mostly it will
be used with the Timer function or to combine other input statuses together. The Internal Register function also
allows a PC to control the ioLogik’s local output when the remote output is controlled by Click&Go log (e.g.,
digital output, active message, e-mail and SNMP Trap). Select the IF condition for the Internal Register and

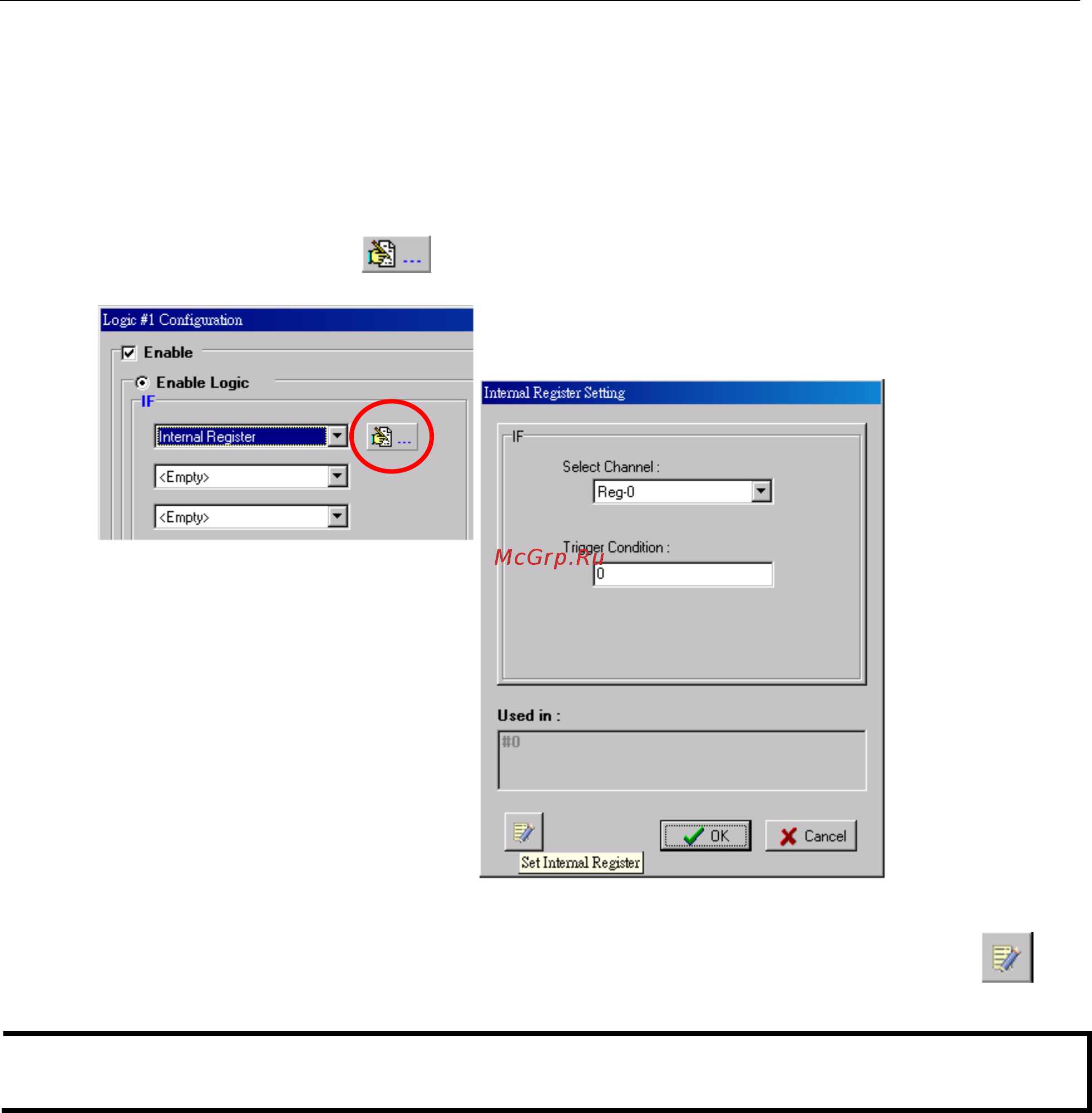

click on the property button ( ) to enter the Set Internal Register window.
In the above figure, the “Used in:” column indicates that this Internal Register is also used in the Rule-0, which
helps the user to identify the relationship between the rules. Also, the Set Internal Register button ( ) will
help to define the default value of all the Internal Registers.
NOTE
Internal Registers can be controlled by Modbus/TCP protocol. Refer to the appendix for the address list for all
the Internal Registers.
