Moxa ioLogik E2210 [44/90] Pulse output

Click&Go V2 Click&Go V2 Developing Process

3-28

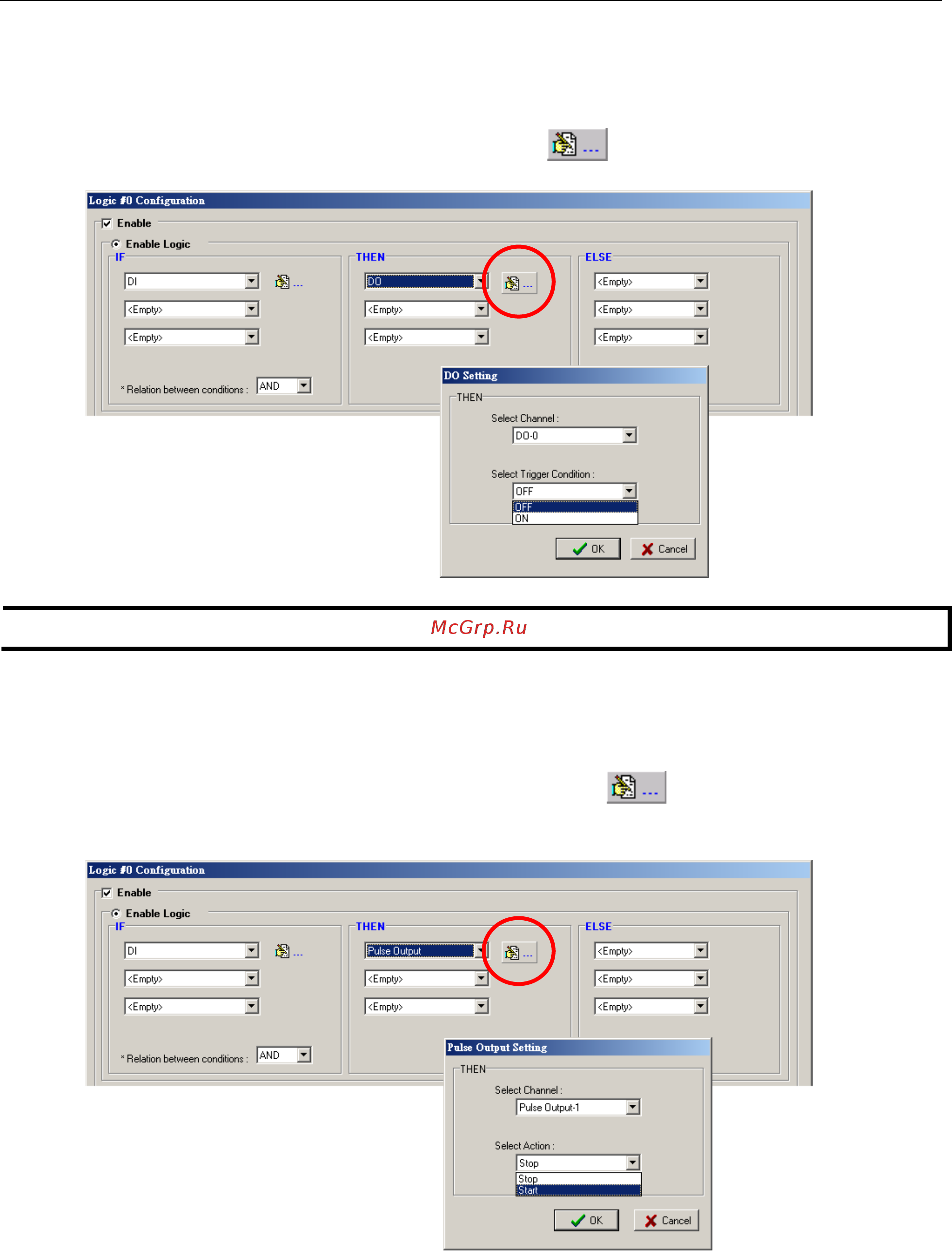

DO refers to the action of controlling the local digital output channels that react to the IF conditions. Select the

THEN/ELSE action to DO and click on the property button ( ) to enter the DO Settings window.

NOTE

A Relay output channel is also referred t

o as a DO channel in the THEN/ELSE action fields.

Pulse Output

Pulse Output starts or stops a pulse. It is usually used to create the flash for an alarm light. Select the

THEN/ELSE action to Pulse Output and click on the property button ( ) to enter the Pulse Output Settings

window.
