Click&Go V2 Click&Go V2 Developing Process
3-25

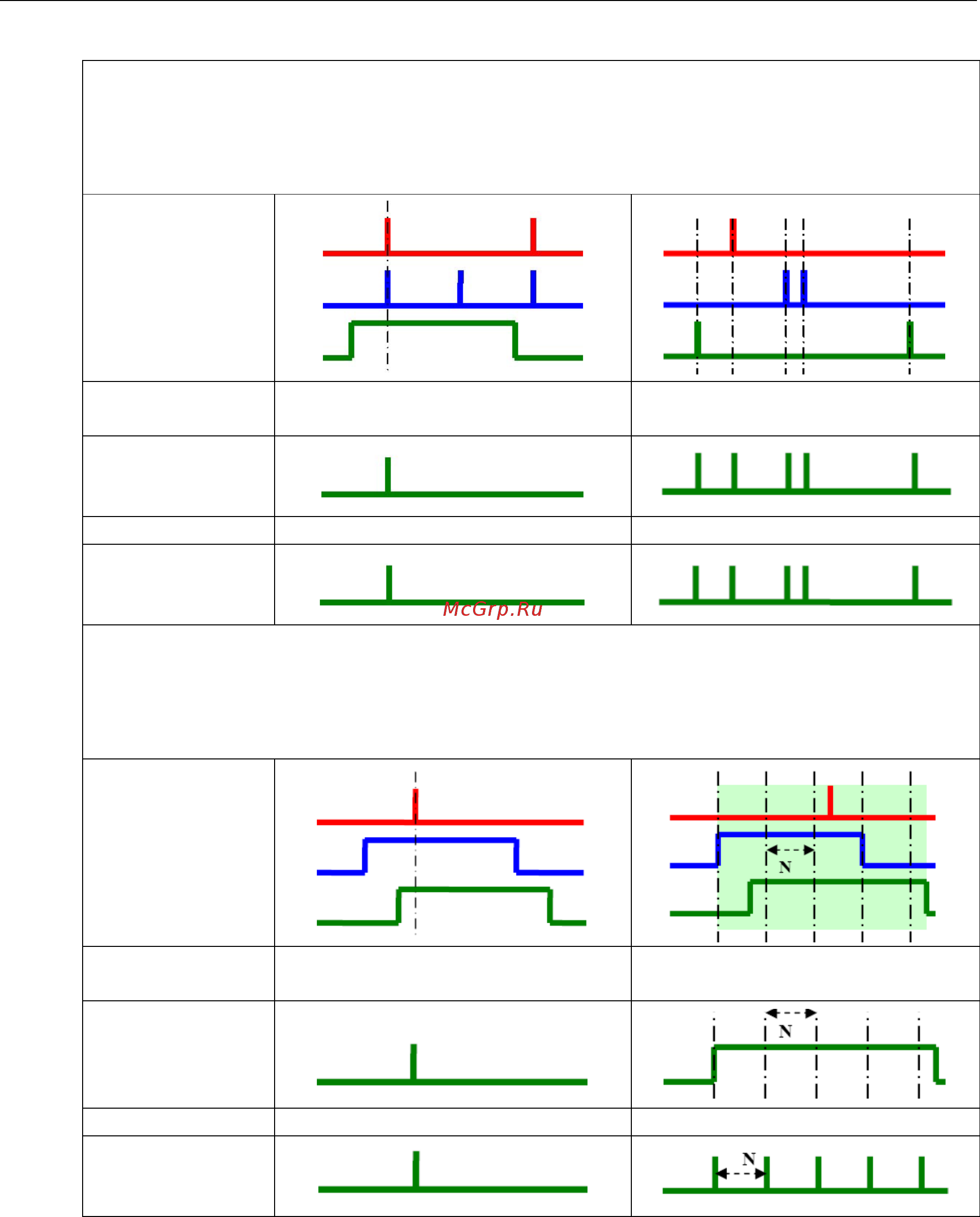

Edge Detection for Two Conditions
In this scenario, the rule checks DI-0 and DI-1 for a change in status and DI-2 for status only. The repeat
interval will not have an effect if the AND relationship is used, because the two edge conditions can never be
sustained over a length of time. With the OR relationship, the IF conditions will be satisfied as long as DI-
2 is
“on”, and the THEN actions will be triggered over interval N.
DI-0 = OFF to ON
DI-1 = OFF to ON
DI-2 = ON
Relation between
conditions
AND
OR
“IF” conditions
satisfied
Repeat interval N/A N/A
“THEN” action
triggered
Edge Detection for One Condition
In this scenario, the rule checks DI-0 for a change in status and DI-1 and DI-2 for status only. The repeat
interval will not have an effect if the AND relationship is used, because the edge condition for DI-0 can never
be sustained over a length of time. With the OR relationship, the IF conditions will be satisfied as long as DI-
1
or DI-2 is “on”, and the THEN actions will be triggered over interval N.
DI-0 = OFF to ON
DI-1 = ON
DI-2 = ON
Relation between
conditions
AND OR
“IF” conditions
satisfied
Repeat interval N/A “Timer = N sec”
“THEN” action
triggered
