Click&Go V2 Click&Go Examples and Applications
4-21

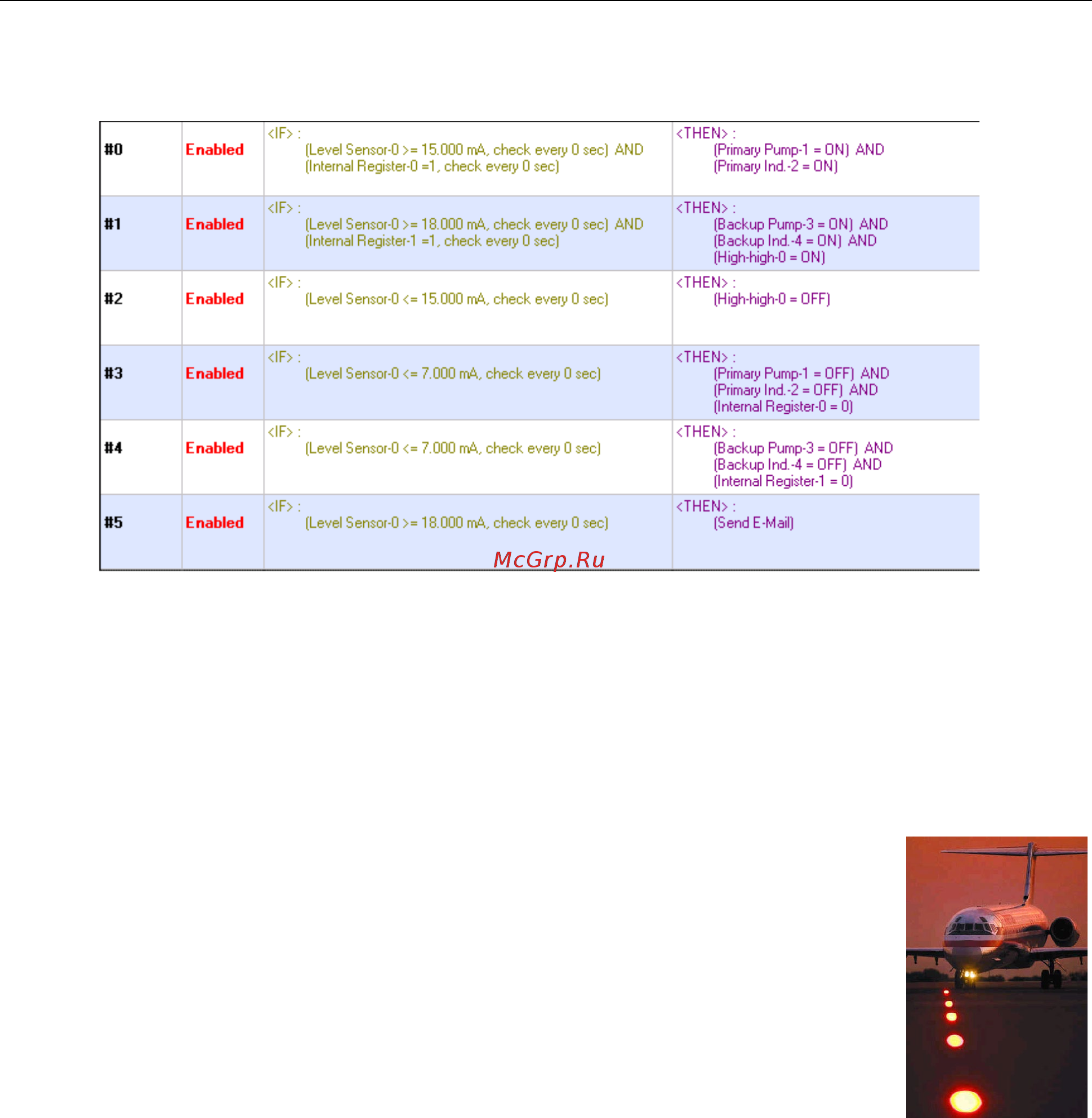

Click&Go Rule-set
Applications_5
The ioLogik E2214 reduces downtime in a runway perimeter security system.
Project Background
Relay control for lighting and motion detection is at the heart of
a runway perimeter
intrusion detection and alarm system
application.
