Moxa ioLogik E2210 [63/90] Programming examples
![Moxa ioLogik E2260 [63/90] Programming examples](/views2/1201328/page63/bg3f.png)
Click&Go V2 Click&Go Examples and Applications
4-6
Programming Examples
Local I/O Control
In this scenario, we planned to trigger the DO from local DI on the ioLogik.
Product Model: ioLogik E2210, E2212 or E2214.

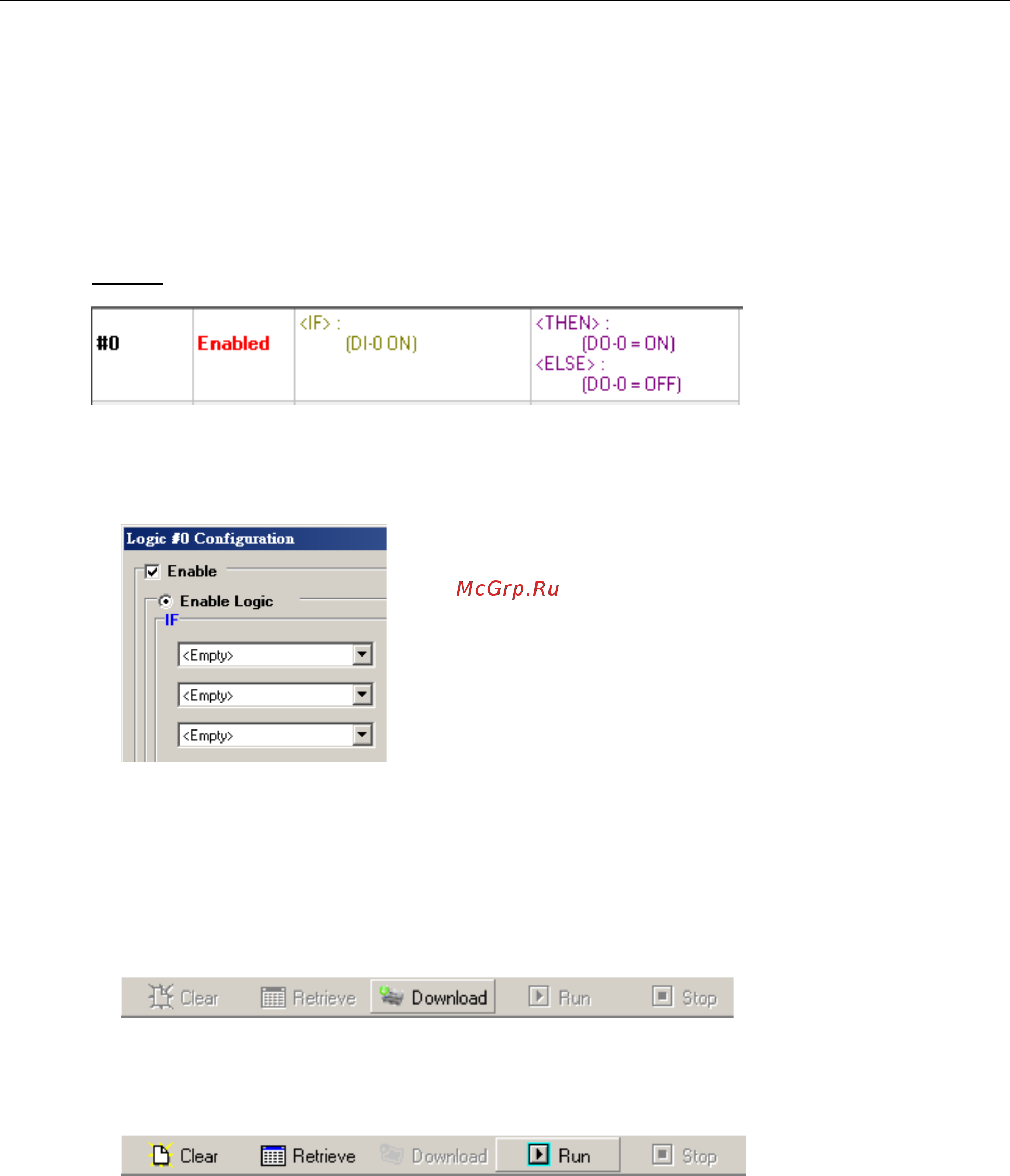

Rule 0: IF DI-0=ON, THEN DO-0=ON, ELSE DO-0=OFF
1. In ioAdmin, make sure you have logged in on the Server Settings tab. Go to the Click&Go Logic tab.
2. Double click #0 in the Rule-set. The rule configuration window will appear.
3. Make sure that Enable in the upper left hand corner is checked.
4. Select Enable Logic.
5. Select DI-0 as your condition in the first IF field, and set its value to ON.
6. Select DO-0 as your action in the first THEN field, and set its value to ON.
7. Select DO-0 as your action in the first ELSE field, and set it value to OFF.
8. Click OK.
9. Click Download on the Rule-set Management Bar.
10. Select Yes when asked to restart and wait until the ioLogik has restarted and is back on-line.
11. Click Run on the Rule-set Management Bar. The RDY LED will be flashing green, showing that the
ioLogik is now operating as an Active Ethernet I/O server, using the rule-set that was just defined.
