Click&Go V2 Click&Go V2 Developing Process
3-13
Work with Logic
Click&Go Logic Basics
The Click&Go Logic tab is available after logging in as an administrator. This is where Click&Go logic is
configured. With a set of rules (known as a rule-set) defined through Click&Go, the ioLogik can perform local
and remote I/O control, report I/O status and actively send out messages, e-mails or SNMP traps to a host as
soon as user-defined I/O conditions have been met.
To use Click&Go Logic, open ioAdmin and log in as an ioLogik administrator on the Server Settings tab. Once
you are logged in, go to the Click&Go Logic tab. The following screen should appear:

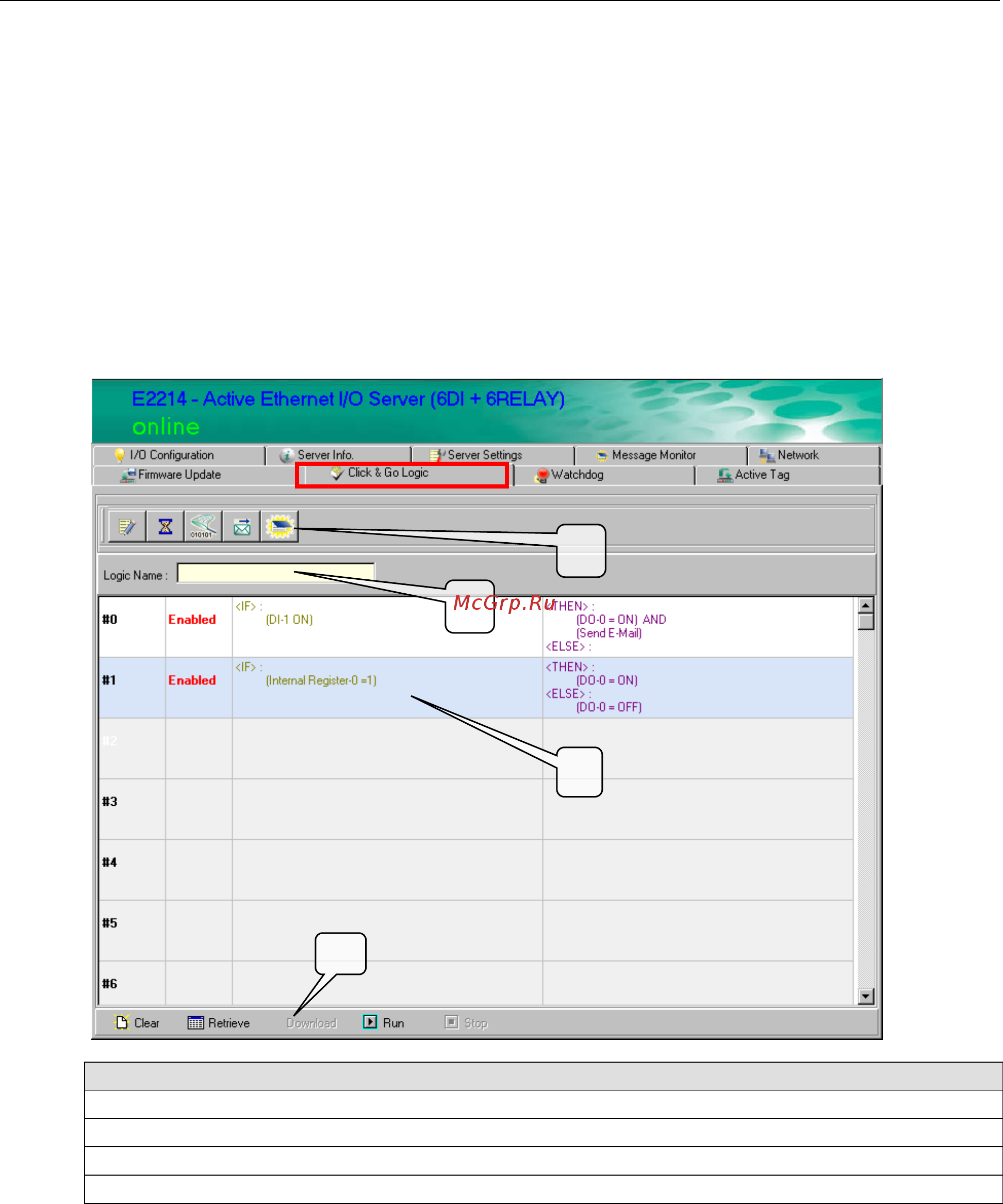

Click&Go Logic Tab
1. Global Variables: In this field, you can configure the global variables of rules.
2. Logic Name: In this field, you can assign a name for the set of rules.
3. Rule-set: In this area, each rule’s conditions, actions, and status are displayed.
4. Rule-set Management Bar: In this area, you manage the rule-set.
Rules are the building blocks of your ioLogik system. With rules, you define the exact trigger conditions for
transmission of I/O information as well as the content and destination of that information.
2
3
4
1
