Click&Go V2 Click&Go V2 Developing Process
3-32
Timer
The Timer function can be used to control the time settings of a logic rule. Actions such as “START”, STOP, and
“RESTART” can be configured here.

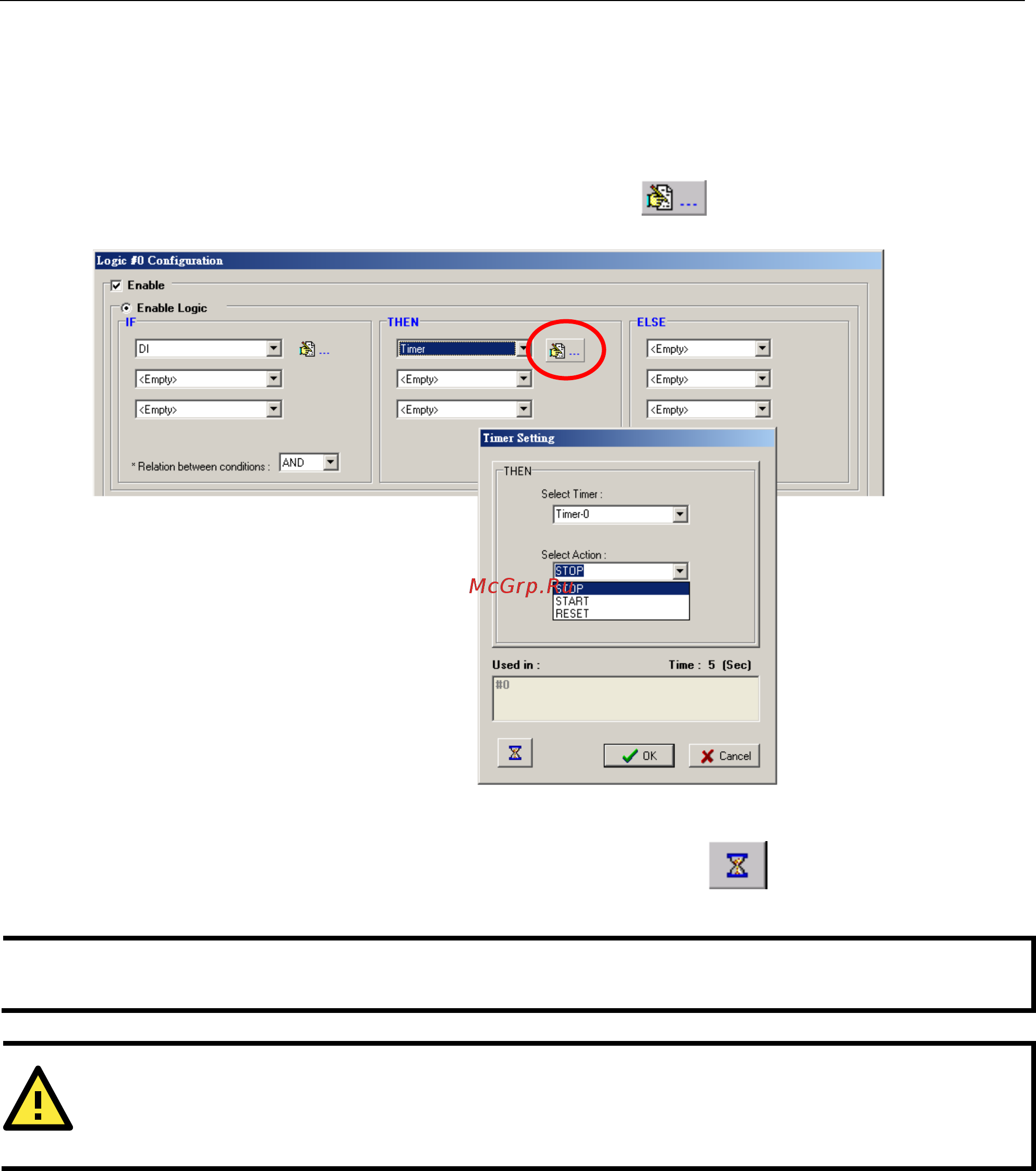

Select the IF condition to Timer and click on the property button ( ) to enter the Timer Settings window.
In the above figure, the “Used in:” column indicates this Timer is also used in the Rule-0, which helps the user
to identify the relationship between the rules. Also, the Set Timer button ( ) will help to define the default
value for the Timer.
NOTE
While the “STOP” operator stops the timer and returns to “0”, the “RESTART” operator clears and restarts the
timer.
ATTENTION
The
STOP or RESTART operator should always be used to reset or to restart the timer. Without using these
operators,
the Timer function can only be triggered once.
