Click&Go V2 Click&Go Examples and Applications
4-22
Moxa Solution
The ioLogik E2214 is designed with 6 DI and 6 relay channels. With the user-friendly Click&Go local control logic,
users can easily program the ioLogik E2214 as the front-end relay controller to detect intrusions. Click&Go also
supports a special function called ''relay counter storage'' to provide readings of the current relay usage. This
allows the ioLogik E2214 to send out TCP packets to the central SCADA system and a warning e-mail at the
same time so that site maintainers can replace the relay components of the second-tier relay board. After the
replacement, site maintainers simply press the RESET button attached to the ioLogik E2214 to clear the counts.
In other words, there is no need to use laptop computers or remote commands.
Solution Benefits
The Moxa ioLogik E2214 provided the runway security system with the following benefits:
• Click&Go’s easy IF-THEN-ELSE style control logic, which eliminates the need for a PLC or RTU
• Active reports via TCP/UDP/SNMP trap and e-mail
• Relay count reports
• Compact size and cost-effectiveness
Additional Features
The ioLogik E2214 is also equipped with the following features:
• Local alarm output using digital channels
• Alarm notifications via e-mail
• Periodic status updates with SNMP trap
• Moxa’s Active OPC Server to connect ioLogik devices to the most popular SCADA systems

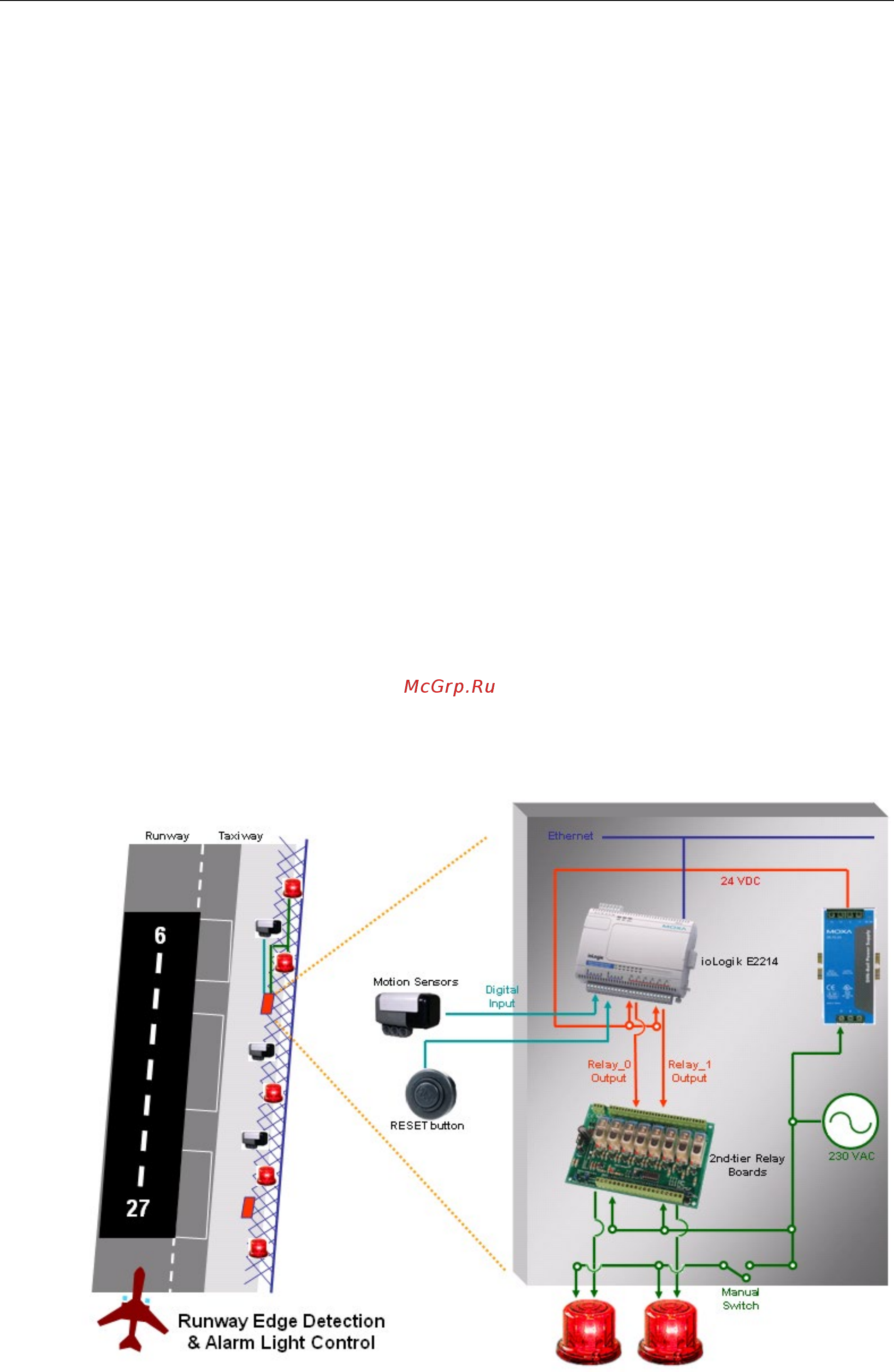

System Diagram
