Click&Go V2 Click&Go Examples and Applications
4-23
Click&Go Programming Example

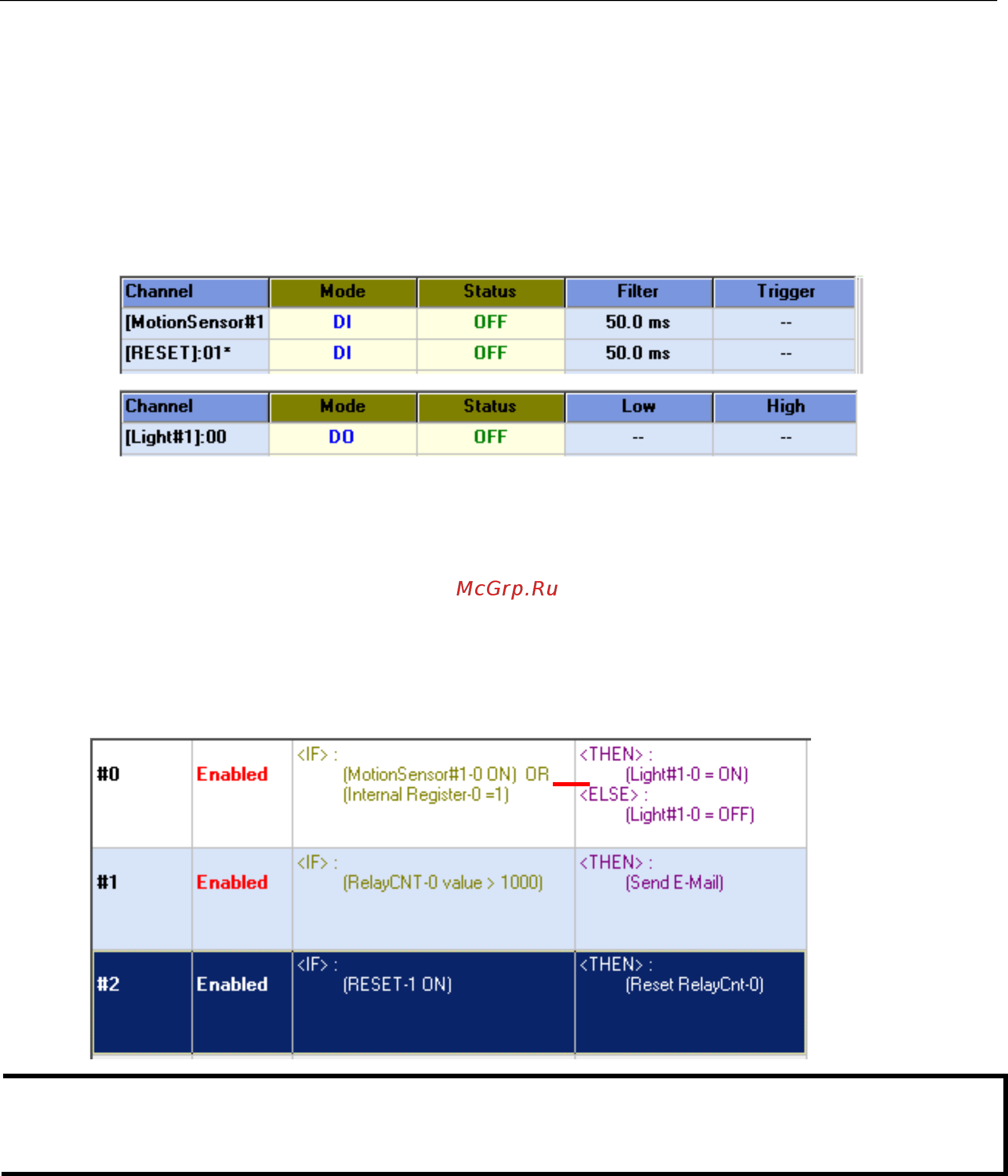

I/O Alias Configuration
1. Configure the alias name of DI_0 channel to MotionSensor#0.
2. Configure the alias name of DI_1 channel to RESET#0.
3. Configure the alias name of DO_0 channel to Light#0.
Programming Manners
1. Lights should be turned ON locally (for the motion sensor) and remotely
2. Report the current relay counts via e-mail upon reaching 1,000 uses
3. After a relay is replaced, site maintainers can manually reset the counts by pressing the RESET button
Click&Go Rule-set
NOTE
Internal Register
-0 in this case is used to control the relay output to a light. The control is done outside the
ioLogik or locally depending on the DI status when running Click&Go logic. Refer to the appendix for the
Modbus/TCP Address table of the intern
al registers.
