Click&Go V2 Click&Go V2 Developing Process
3-38
The ioLogik E2000 can simultaneously act as both an input module and an output module. Input module
operation would be configured in one rule, and another rule would be used to configure output module
operation.
NOTE
Only DI channels that are set to DI mode can mirror remote DO channels. Event Counter channels cannot be
used for peer
-to-peer I/O operation. For analog input and output channels, they must be configured to the
same voltage or current mode. Also, a digital channel can not mirror an analog output channel or vise
versa.
Configuring Output Module

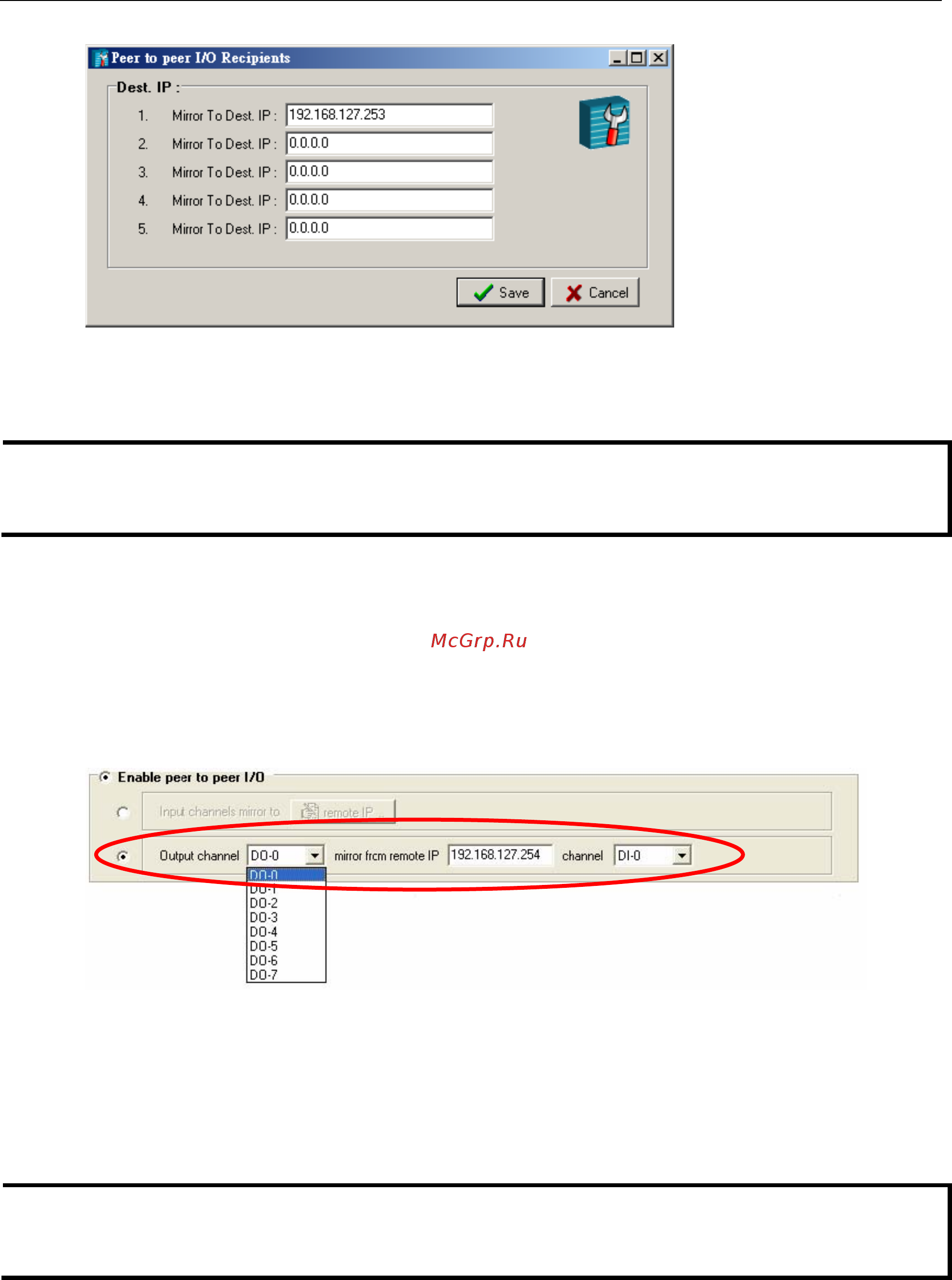

The peer-to-peer I/O output module is configured using one Click&Go rule for each DO channel that is mirroring
a remote input channel. In the Click&Go tab, start a new rule, select Enable peer-to-peer I/O, and then
select Output channel. Specify the output channel that will mirror the remote input channel, the IP address
of the input module, and the input channel on the input module whose signals will be mirrored. The input
module must have specified the output module’s IP address as a destination IP.
When properly configured, the specified output channel will mirror the signals received by the specified remote
input channel, as if the channels were physically connected. For example, If the remote DI channel’s status
changes to “ON”, the specified DO channel’s status will change to “ON”. If the remote DI channel’s status
changes to “OFF”, the DO channel’s status will change to “OFF”.
Once both the input and output modules have been configured start peer-to-peer I/O operation by activating
the rule-set on both units and providing a valid network connection to each unit.
NOTE
Only DO channels that are set to DO mode can mirror remote DI channels. Pulse Output channels cannot be
used for peer
-to-peer I/O operation. For analog input and output channels, they must be configured to the
same voltage or current mode. Also, a digital channel can not mirror an analog output channel or vise versa.
