Click&Go V2 Click&Go V2 Developing Process
3-39
Activating the Rule-set
Download, Restart and Run
In the Click&Go tab, the rules that are displayed in the Click&Go Logic tab comprise the current rule-set, which
acts as the brain of your ioLogik system. The rule-set must be activated for the ioLogik to commence local
control operation as follows:
1. The rule-set must first be ioAdmin to the ioLogik. To download the rule-set, click
Download from the Rule-set Management bar.

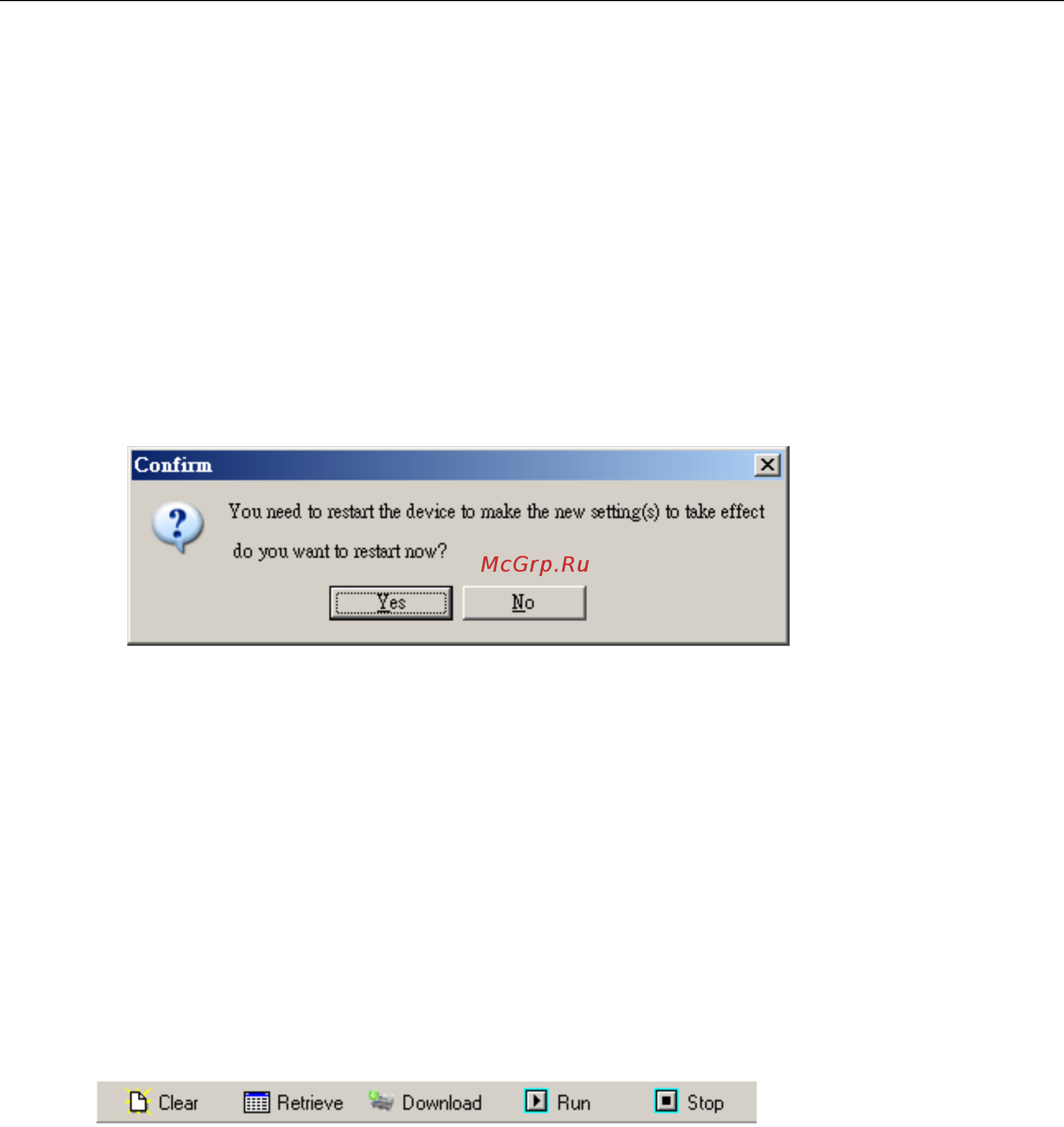

2. After the rule-set has been downloaded, ioAdmin will prompt to restart the ioLogik automatically after
clicking “yes” to confirm. Do not use the reset button, as that will load all factory defaults and erase your
rule-set from memory.
3. After the ioLogik has been restarted, the rule-set must be activated. After logging into ioAdmin as an
administrator, go to the Click&Go Logic tab and click Run in the Rule-set Management bar. The rules in the
rule-set will now be active.
When the rule-set has been activated, it will remain active even when the ioLogik is disconnected from the host
computer or from the network. If the ioLogik is turned off, Active Ethernet I/O operation will resume when it is
turned back on. This allows you to use the ioLogik E2000 for PC-independent automation.
Rule-set Management Bar
In the Click&Go tab, When the rule-set has been activated, it will remain active even when the ioLogik is
disconnected from the host computer or from the network. If the ioLogik is turned off, Active Ethernet I/O
operation will resume when it is turned back on. This allows you to use the ioLogik E2000 for PC-independent
automation.
• Clear: This erases the rule-set in both ioAdmin and the ioLogik E2000 series.
• Retrieve: This copies the rule-set from the ioLogik E2000 series into ioAdmin.
• Download: This copies the rule-set from ioAdmin onto the ioLogik E2000 series.
• Run: This activates the rule-set that the ioLogik booted up with.
• Stop: This de-activates the Click&Go rule-set and returns the ioLogik to normal, passive operation.
Import/Export Configuration
The ioLogik’s system configuration can be imported and exported. This configuration includes the current
Click&Go rule-set. As you make changes to a rule-set, you can export the system configuration in order to save
that rule-set.
The Server Settings tab is where you log in as an ioAdmin administrator. This is required in order to gain
access to the ioLogik configuration options. If no password has been set up, simply click Login and leave the
Password for entry field blank.
