Click&Go V2 Click&Go V2 Developing Process
3-21

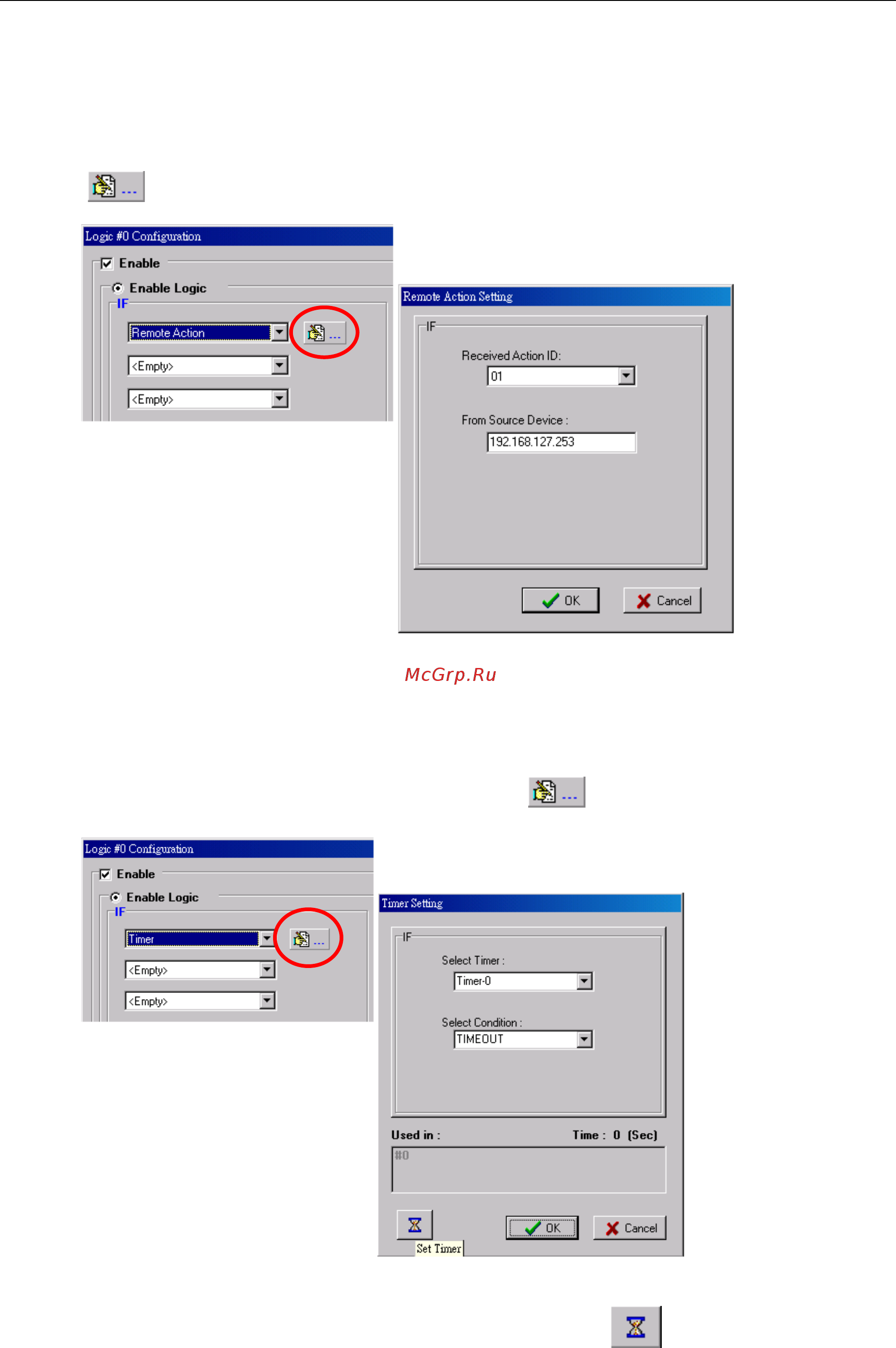

Remote Action
In the IF conditions, the Remote Action receives the command from one or more remote ioLogik. Specifying
the ID and the source IP addresses can create an event. For example, a remote push button connected to an
ioLogik can trigger a local siren. Select the IF condition for Remote Action and click on the property button
( ) to enter the Remote Action Settings window.
Timer
The Timer function can be used to control the timing of a logic rule in the IF conditions. “TIMEOUT” is the only
operator here. For example, uses can delay the triggering of an action or to repeat an action periodically. Select
the IF condition for Timer and click on the property button ( ) to enter the Timer Settings window.
In the above figure, the “Used in:” column indicates this Timer is also used in the Rule-0, which helps the user
to indentify the relationship between rules. Also the Set Timer button ( ) will help to define the default
value for the Timer.
