Click&Go V2 Click&Go Examples and Applications
4-14

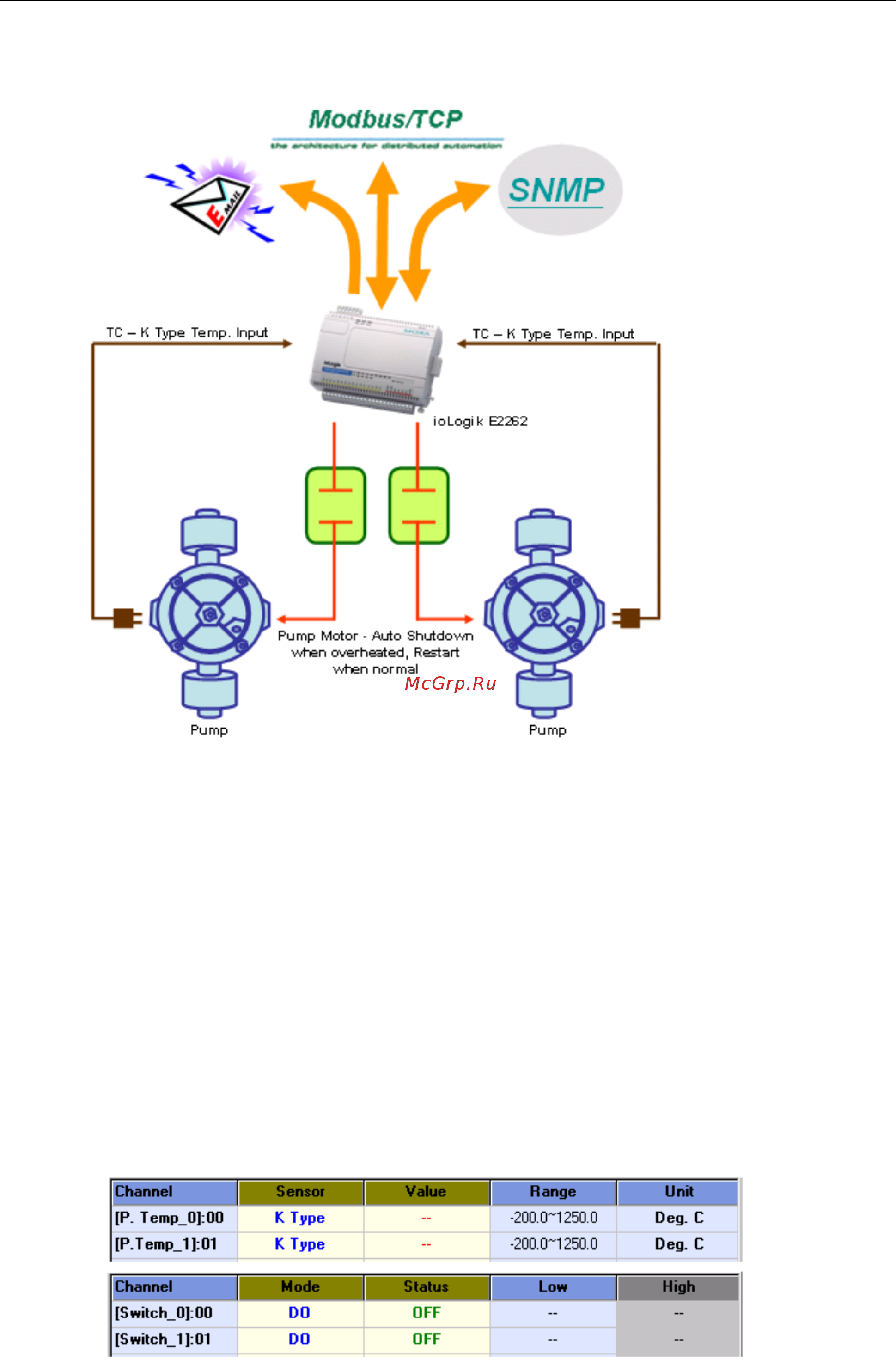

System Diagram
Click&Go Programming Example
I/O Alias Configuration
1. Temperature Input TC_0: 1st Pump Motor Temperature Sensor.
2. Temperature Input TC_1: 2nd Pump Motor Temperature Sensor.
3. Digital Output DO_0: 1st Pump Motor Start/Shutdown Control.
4. Digital Output DO_1: 2nd Pump Motor Start/Shutdown Control.
I/O Mode Configuration
1. Configure the TC Channels to the correct Mode, in this case, it is K-type sensors with calluses display; set
the alias name for each channel.
2. Configure the DO channel, set the alias name for each channel.
