English

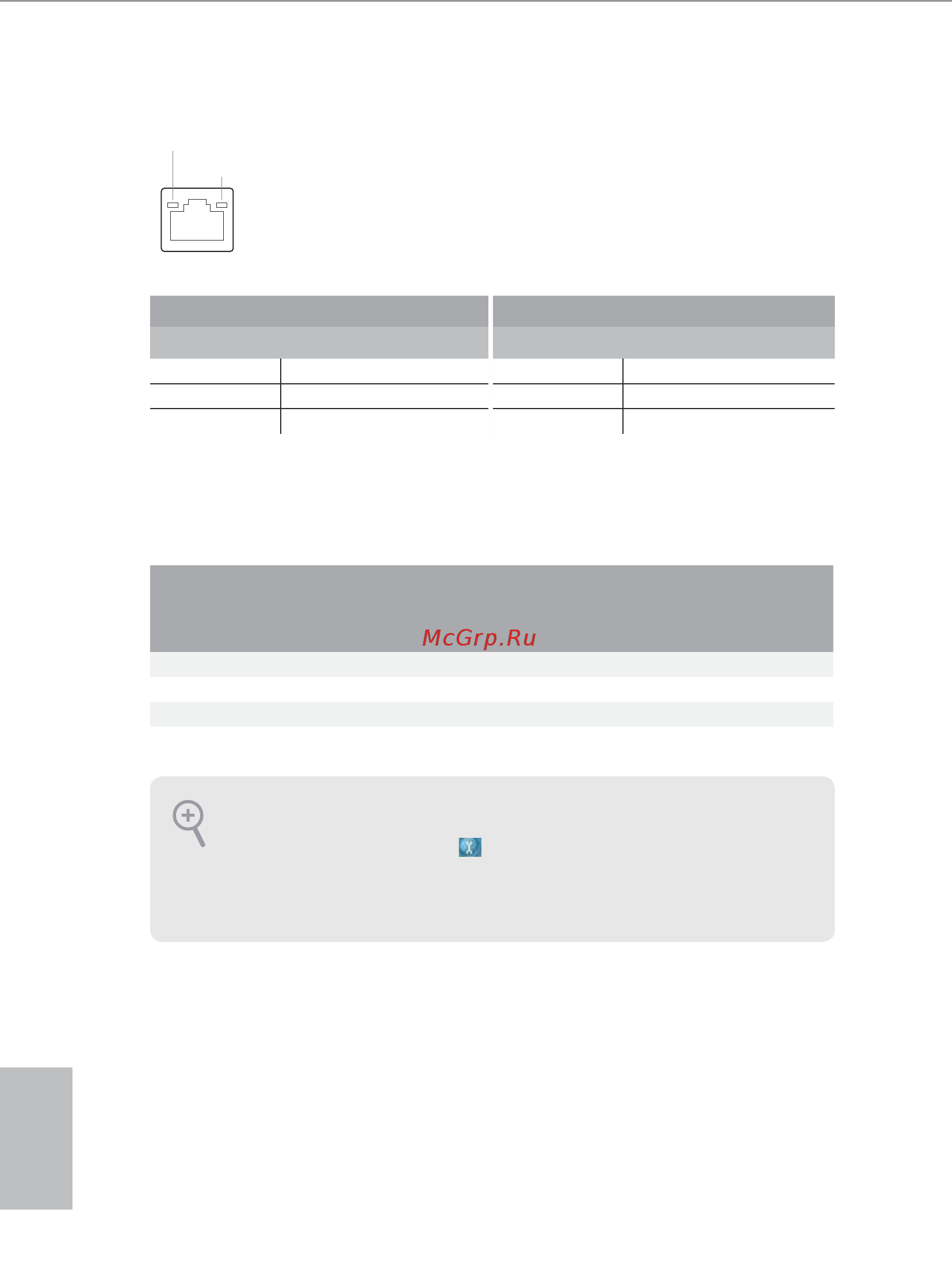

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

Of No Link Of 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 4)

Line in

(No. 3)

Microphone

(No. 5)

Front Panel

Headphone

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, or “6CH” and then you are allowed to select “Realtek

HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker, or select

“Realtek HDA Audio 2nd output” to use the front panel audio.

ACT/LINK LED

SPEED LED

LAN Port

•
