Communication
41
RLON-01 network variables
A detailed description of all the RLON-01 network variables and
configuration properties is given in chapter Network variables.
Resource files
For the installation of the RLON-01 with different installation tools,
resource files are needed. If you have not received these files
together with the RLON-01, please consult your local ABB
representative.
The downloadable application is provided for different drive types.
The resource files are delivered as a compressed (*.ZIP) archive.
Copy the ZIP archive to your LonWorks
®
directory and unpack the

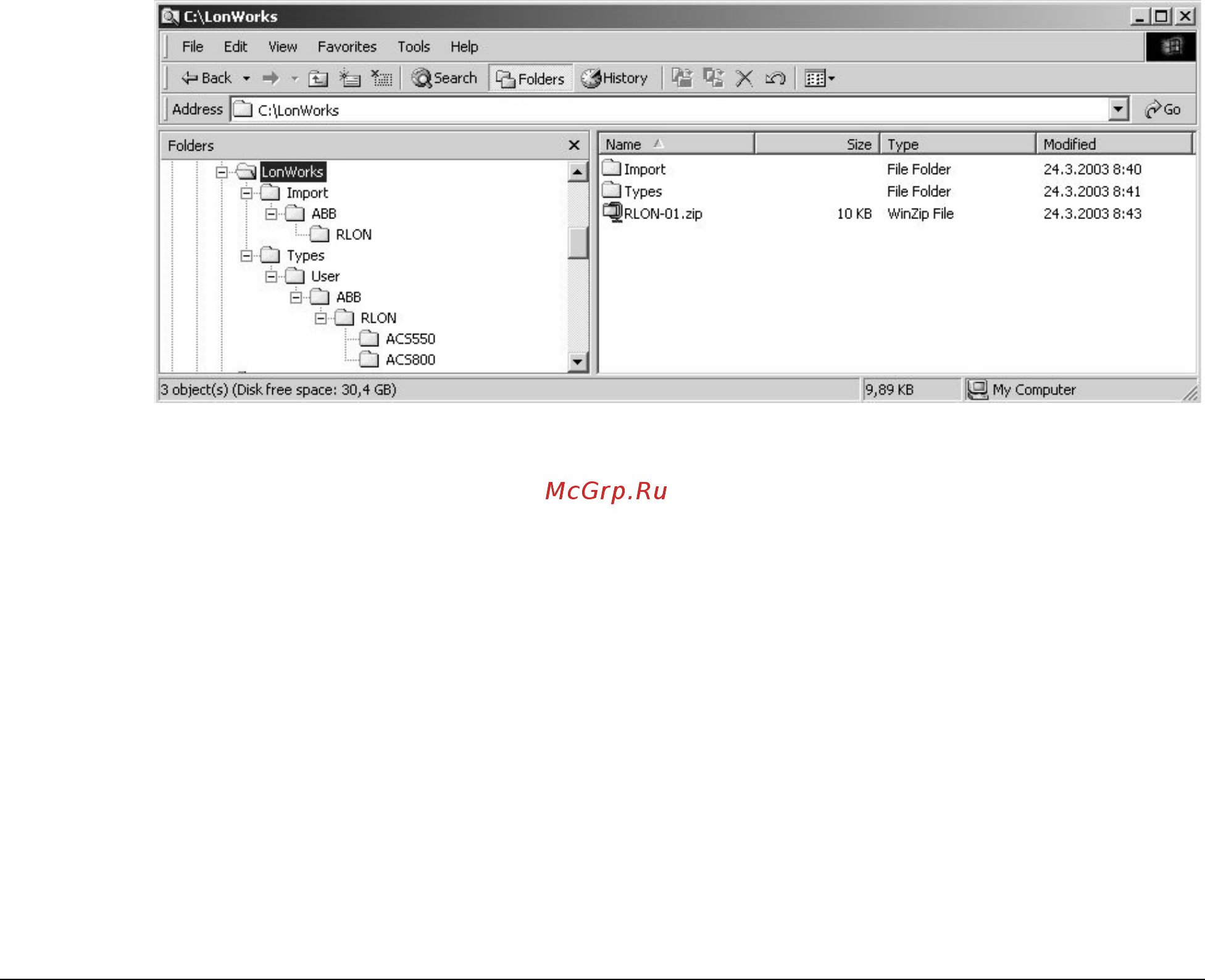

compressed files. The following directory structure is created:
The directory
LONWORKS\TYPES\USER\ABB\RLON
holds the user type and enumeration file (VSD_RLON01.TYP),
the user type formatting file (VSD_RLON01.FMT), the functional
profile template file (VSD_RLON01.FPT) and the language file
(VSD_RLON01.ENU).
The directory
LONWORKS\IMPORT\ABB\RLON
holds the external interface files (*.XIF).
