Technical data
75
Technical data
RLON-01
Enclosure:
Mounting:
Into its option slot inside the drive
Degree of protection:
IP 20
Ambient conditions:
The applicable ambient conditions specified for the drive in its
Hardware Manual are in effect.
Connectors:
• 34-pin parallel bus connector
• 5-pole screw type connector (detachable)

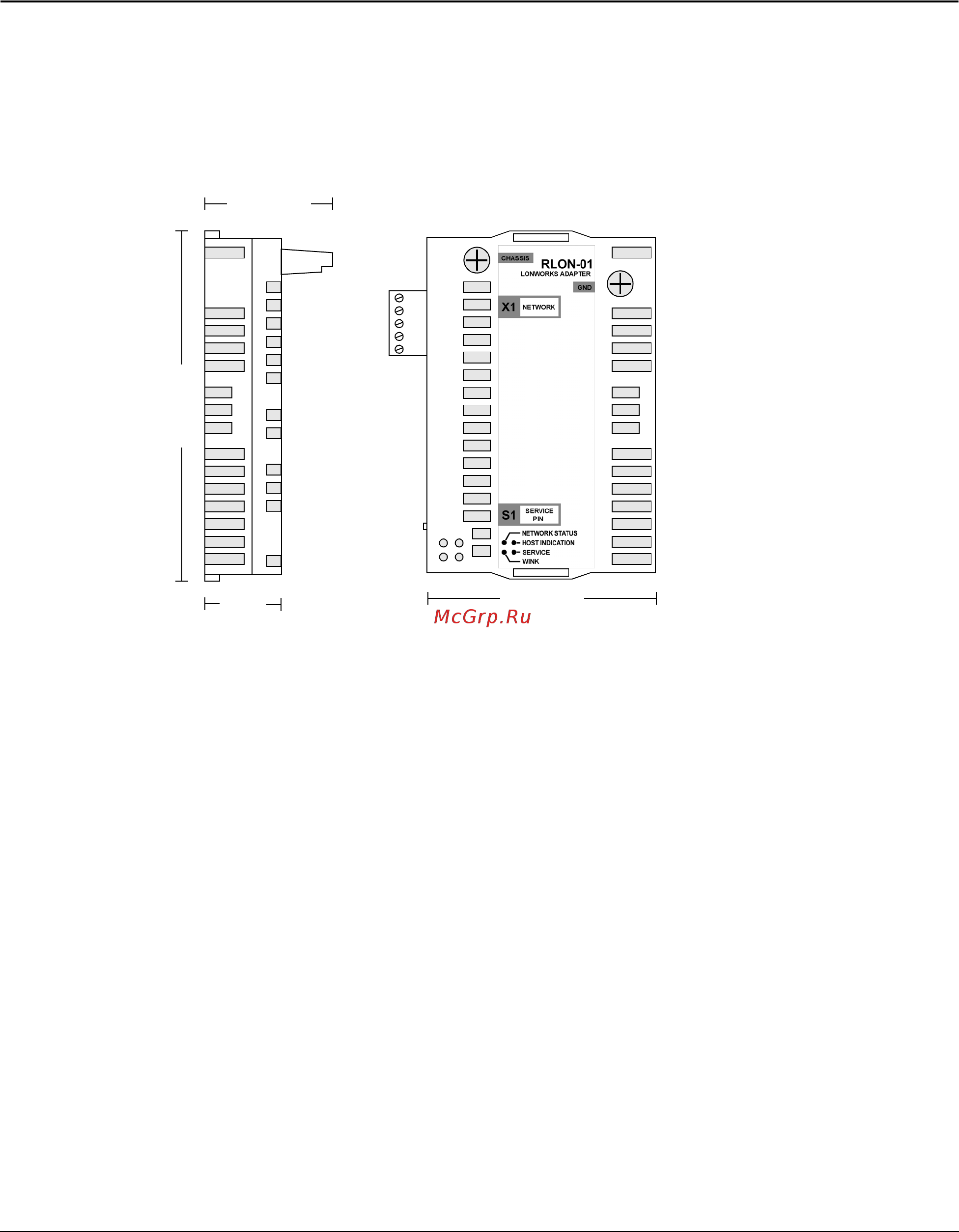

95 mm
34 mm
20
mm
62 mm
