Alarms and Events ESIE10-01
3–24 Part 3 – Troubleshooting
3
1
3
4
5
1.4.6 Low Pressure Ratio
Alarm description (as shown on screen): Low Pressure Ratio N.
Trigger: Pressure ratio is lower than calculated limit for a time longer than Low Pressure Ratio Delay
set point after circuit startup has completed. The calculated limit will vary from 1.4 to 1.8 as the
compressor's capacity varies from 25% to 100%.
Action Taken: Normal shutdown of circuit.
Reset: Alarm can be cleared manually via the Unit Controller keypad.

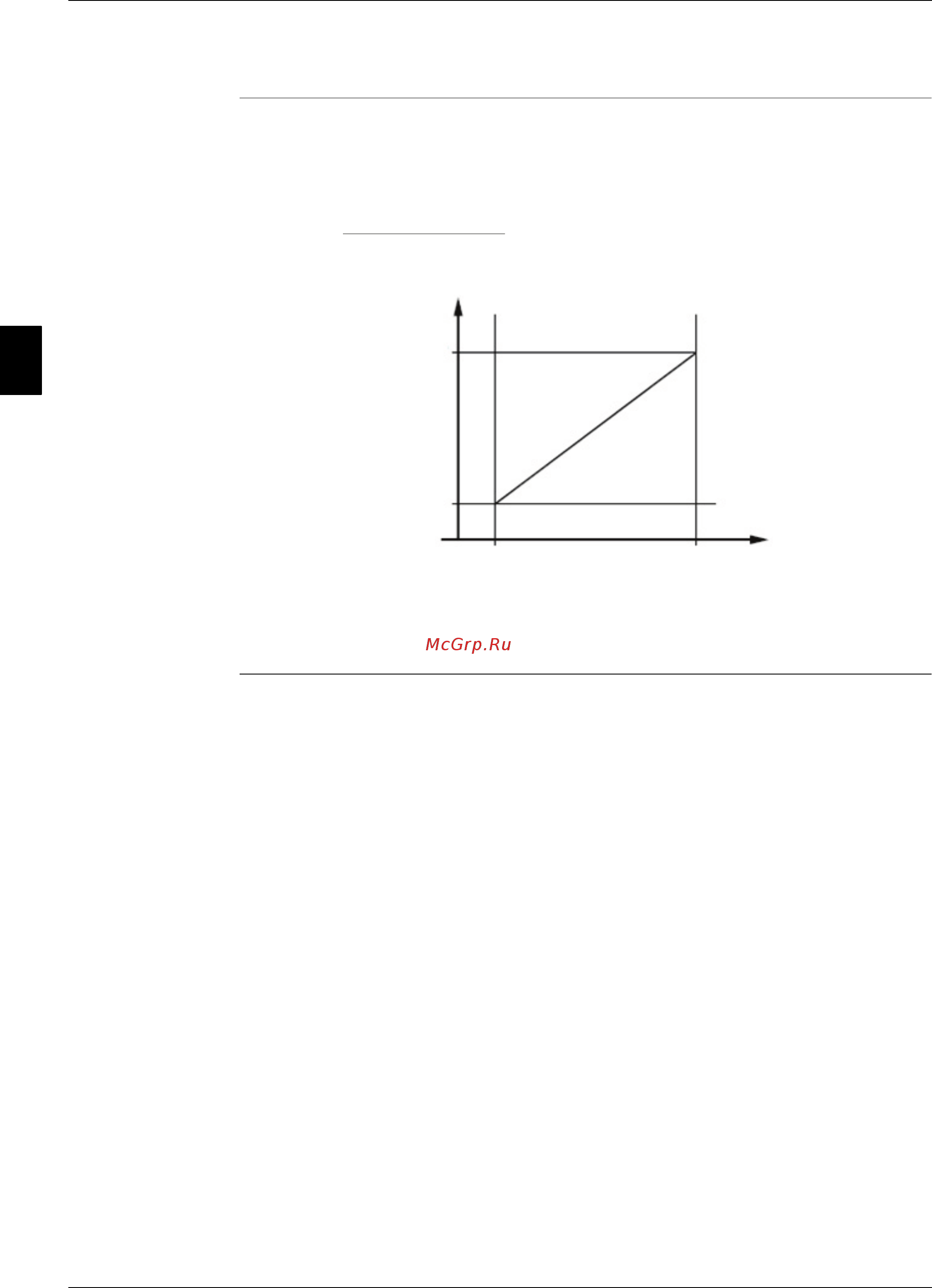

pressure ratio =
discharge pressure (Abs)
suction pressure (Abs)
1.8
1.4
25% cap. 100% cap.
Pressure ratio
