1.5.4 High Condenser Pressure - Unload

Event description (as shown on screen): CondPressHighUnloadN.

Trigger: While the compressor is running and unit mode is Cool, if saturated condenser temperature

is higher or equal to High Saturated Condenser Unload Value, the event is triggered.

Action Taken: Unload the compressor by decreasing the capacity by one step every 5 seconds until

the evaporator pressure rises above the High Condensing Pressure Unload set point.

Reset: While still running, the event will be reset if saturated condenser temperature drops below the

High Saturated Condenser Unload Value - 5°C. The event is also reset if the unit mode is switched to

Ice, or the circuit is no longer in the run state.

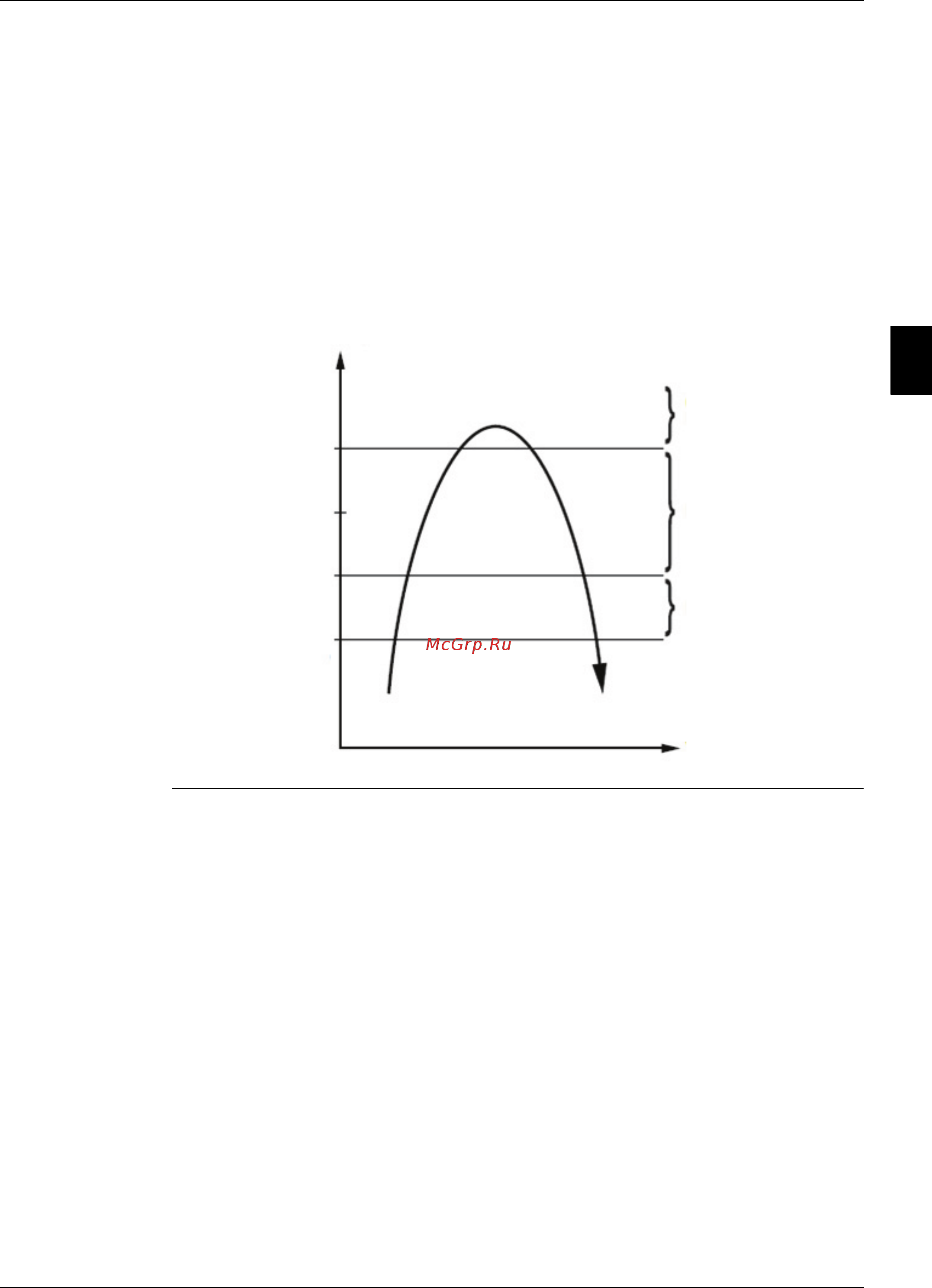

HP Switch

unit switched off by

HP switch

load down area

hold capacity area

21.5 b

Down Cond.

18.5 b

P Hold Cond.

17.5 b

HP (bar)

Time
