PANEL DESCRIPTION
New2001

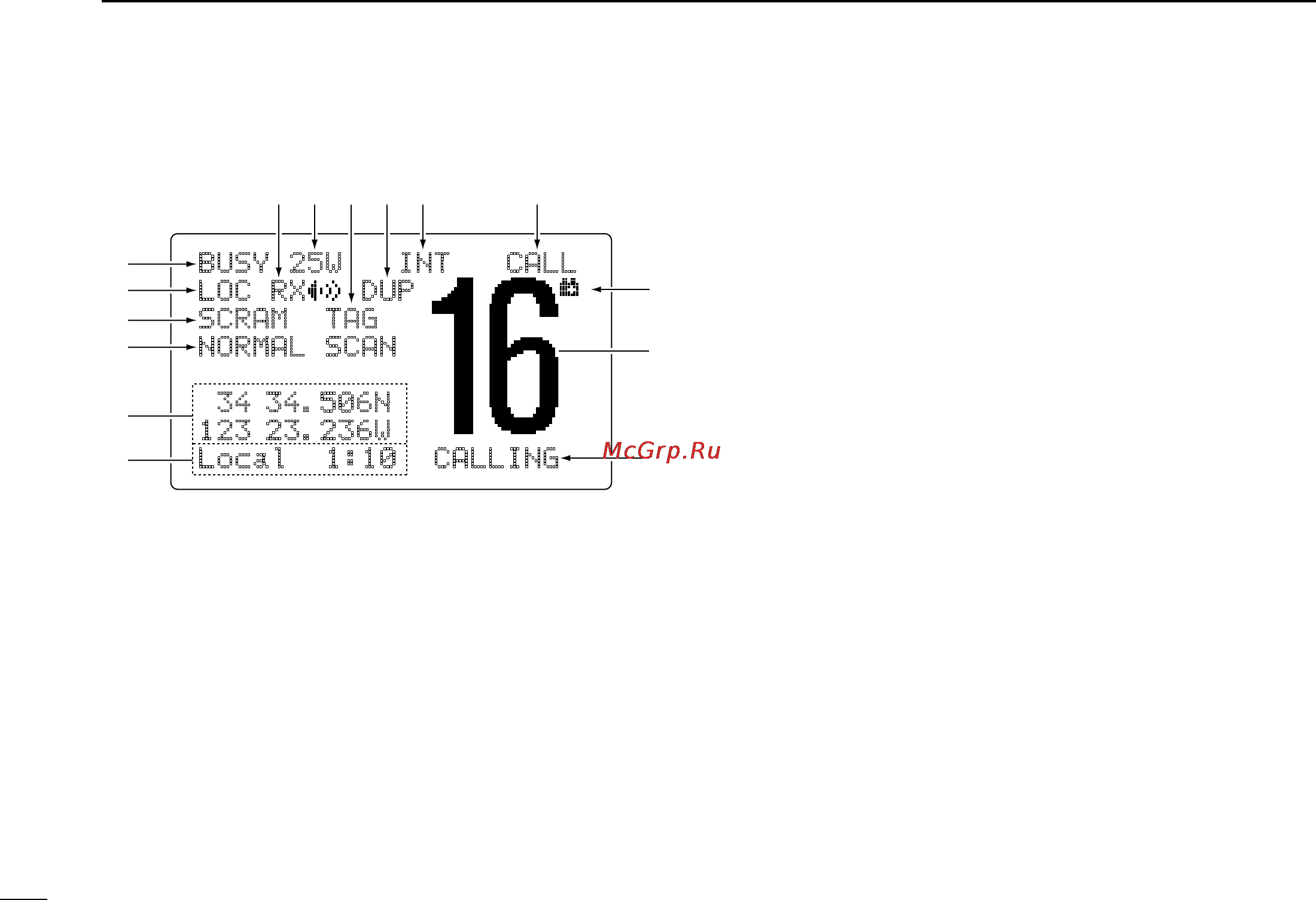

■ Function display
BUSY 25W INT CALL
LOC RX DUP
SCRAM TAG
NORMAL SCAN
-34 34.506N
123 23.236W
Local 1:10 CALLING
q w e r t y
!5
!4
!3
!1
!0
!2
i
o
u
q RX SPEAKER INDICATOR (p. 51)
Appears during the RX Speaker mode.
w POWER INDICATOR (p. 8)
➥ “25W” appears when high power is selected.
➥ “1W” appears when low power is selected.
e TAG CHANNEL INDICATOR (p. 13)
Appears when a TAG channel is selected.
r DUPLEX INDICATOR (p. 7)
Appears when a duplex channel is selected.
t CHANNEL GROUP INDICATOR (p. 7)
Indicates whether an U.S.A. “
USA,” International “INT,”
Canadian “
CAN” or weather “WX” channel is in use.
y CALL CHANNEL INDICATOR (pgs. 6, 9)
Appears when the call channel is selected.
u LOW BATTERY INDICATOR
Blinks when the battery voltage drops to approx. 10 V DC
or below.
i CHANNEL NUMBER READOUT
Indicates the selected operating channel number.
o CHANNEL COMMENT INDICATOR
Channel comment appears if programmed. (p. 10)
!0 TIME ZONE INDICATOR
➥ Shows the current time data when a GPS receiver is
connected.
• “??” may blink every 2 sec. instead of current time data
when the GPS current time data is invalid.
• “??” may blink every 2 sec. instead of current time data
4 hours after the time data is input manually, up until 23.5
hours have past.
➥ “Local” appears when the offset time data is set.
(p. 47)
➥ “No Time” appears when no GPS receiver is con-
nected and no time data is input manually.
