Icom IC-M504 [46/80] D transmitting a polling request reply call
![Icom IC-M504 [46/80] D transmitting a polling request reply call](/views2/1074288/page46/bg2e.png)
40
6
DSC OPERATION
New2001
D Transmitting a polling request reply call
Transmit a polling reply call when a polling request call is re-
ceived.
When the automatic acknowledgement function is ON (p. 48),
the transceiver automatically transmits a reply call after re
-
ceiving a polling request call.

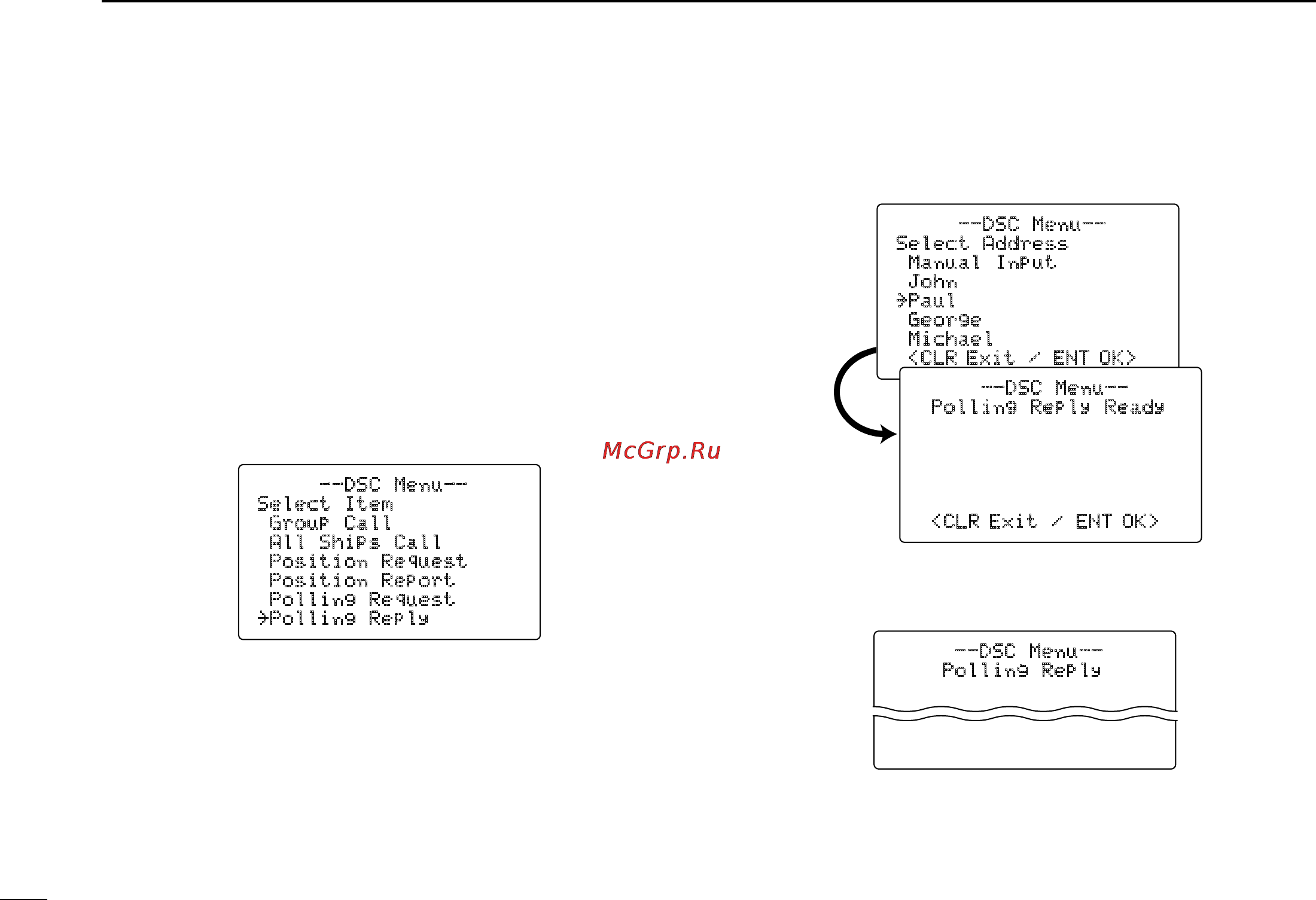

q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Polling Reply,” push
[DIAL•ENTER].
• “Polling Reply” item appears after a polling request call
is received.
e Rotate [DIAL] to select the desired individual address or
ID code, push [DIAL•ENTER].
r Push [DIAL•ENTER] to transmit the polling request reply
call to the selected station.
--DSC Menu--
Polling Reply
Transmitting
--DSC Menu--
Select Item
Group Call
All Ships Call
Position Request
Position Report
Polling Request
˘Polling Reply
--DSC Menu--
Select Address
Manual Input
John
˘Paul
George
Michael
<CLR Exit / ENT OK>
--DSC Menu--
Polling Reply Ready
<CLR Exit / ENT OK>
