Icom IC-M504 [43/80] D transmitting a position request reply call
![Icom IC-M504 [43/80] D transmitting a position request reply call](/views2/1074288/page43/bg2b.png)
37
6
DSC OPERATION
New2001
6

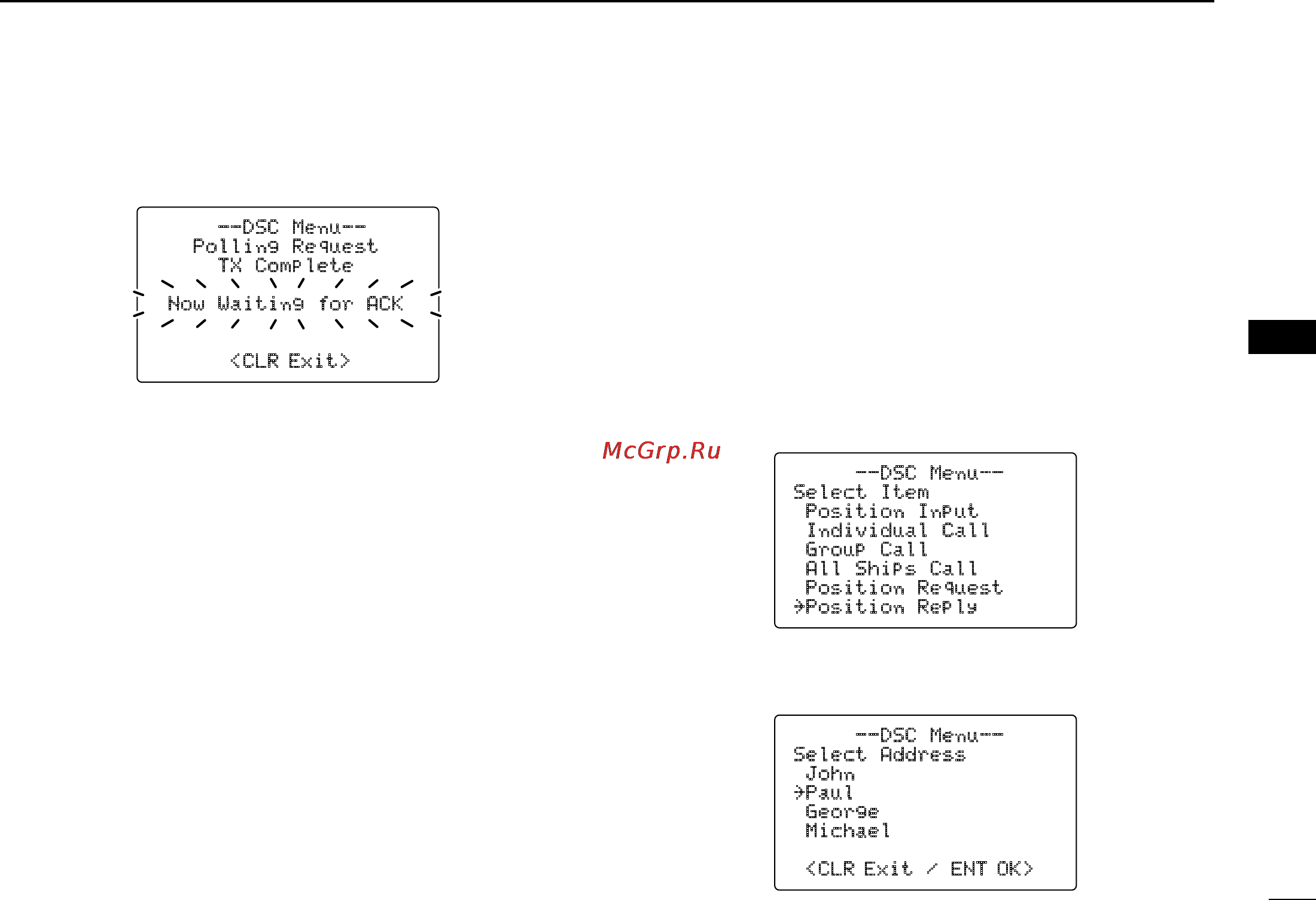

t After the polling request call has been transmitted, the fol-
lowing indication is displayed.
y Push [CLR] to return to the previous indication before en-
tering the DSC menu.
• Even if [CLR] hasn’t been pushed, the display automatically
returns to the previous indication after 2 sec. of inactivity.
D Transmitting a position request reply call
Transmit a position request reply call when a position re-
quest call is received.
When the automatic acknowledgement function is ON (p. 48),
the transceiver automatically transmits a reply call after re
-
ceiving a position request call.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Position Reply,” push
[DIAL•ENTER].
• “Position Reply” item appears after a position request
call is received.
e Rotate [DIAL] to select the desired individual address or
ID code, push [DIAL•ENTER].
--DSC Menu--
Polling Request
TX Complete
Now Waiting for ACK
<CLR Exit>
--DSC Menu--
Select Item
Position Input
Individual Call
Group Call
All Ships Call
Position Request
˘Position Reply
--DSC Menu--
Select Address
John
˘Paul
George
Michael
<CLR Exit / ENT OK>
