Icom IC-M504 [15/80] Basic operation
![Icom IC-M504 [15/80] Basic operation](/views2/1074288/page15/bgf.png)
9
3
BASIC OPERATION
New2001
3

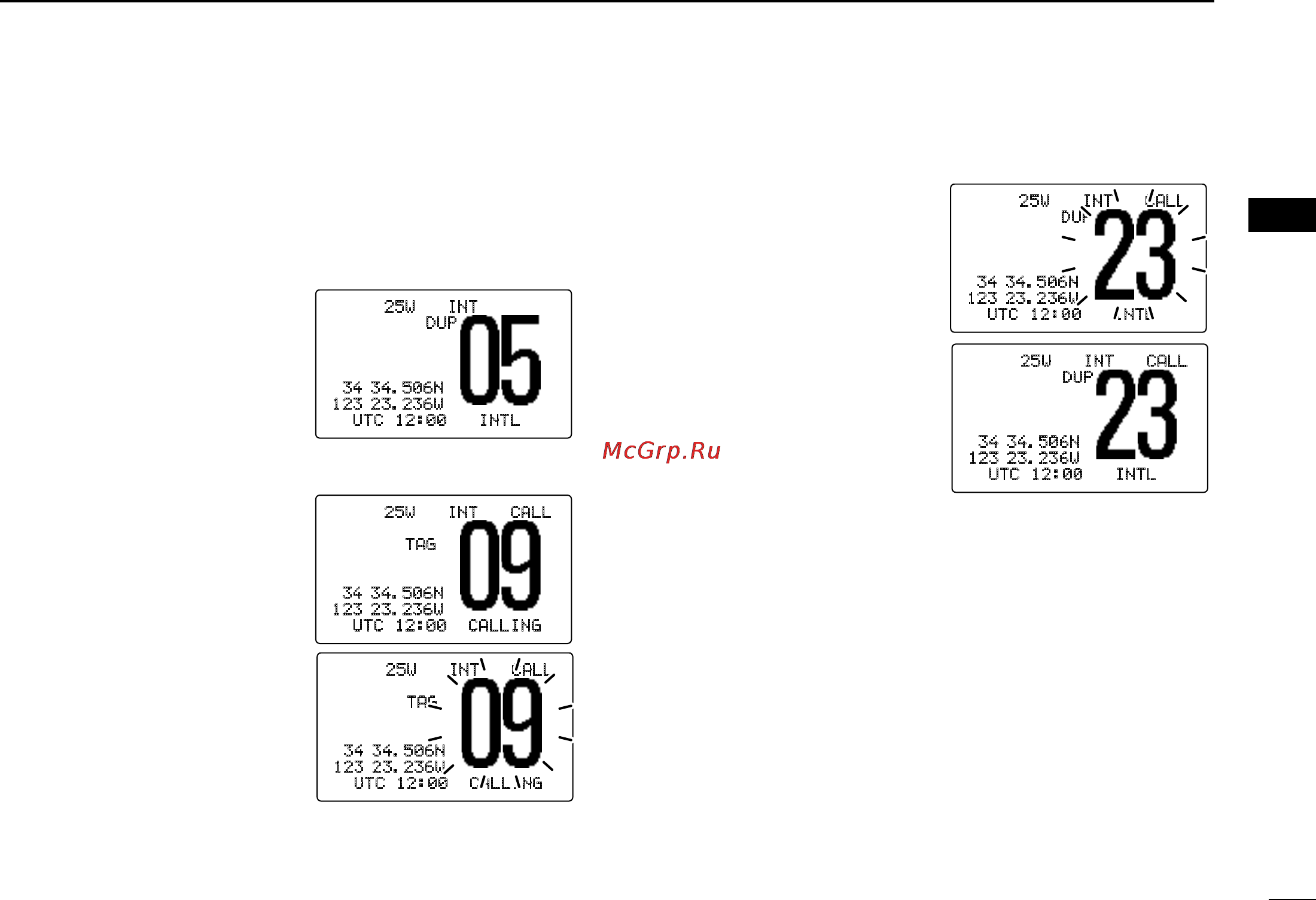

■ Call channel programming
Call channel is used to select Channel 9 (default); however,
you can program the call channel with your most often-used
channels in each channel group for quick recall.
q
While pushing and hold-
ing
[H/L], push [CH/WX•
DUAL•U/I/C] one or more
times to select the desired
channel group (U.S.A., In-
ternational or Canada) to be
programmed.
w Push [16•9] for 1 sec. to
select the call channel of
the selected channel group.
• “C A L L ” and call ch an nel
number appear.
e Push [16•9] again for 3 sec.
(until a long beep changes
to 2 short beeps) to enter
call channel programming.
• Channel number starts blink-
ing.
r Rotate [DIAL] to select the
desired channel.
t Push [16•9] to program the
displayed channel as the
call channel.
• Push [CLR] to cancel.
• The channel number stops
blinking.
25W INT
DUP
34 34.506N
123 23.236W
UTC 12:00 INTL
25W INT CALL
TAG
34 34.506N
123 23.236W
UTC 12:00 CALLING
25W INT CALL
TAG
34 34.506N
123 23.236W
UTC 12:00 CALLING
25W INT CALL
DUP
34 34.506N
123 23.236W
UTC 12:00 INTL
25W INT CALL
DUP
34 34.506N
123 23.236W
UTC 12:00 INTL
