41
6
DSC OPERATION
New2001
6

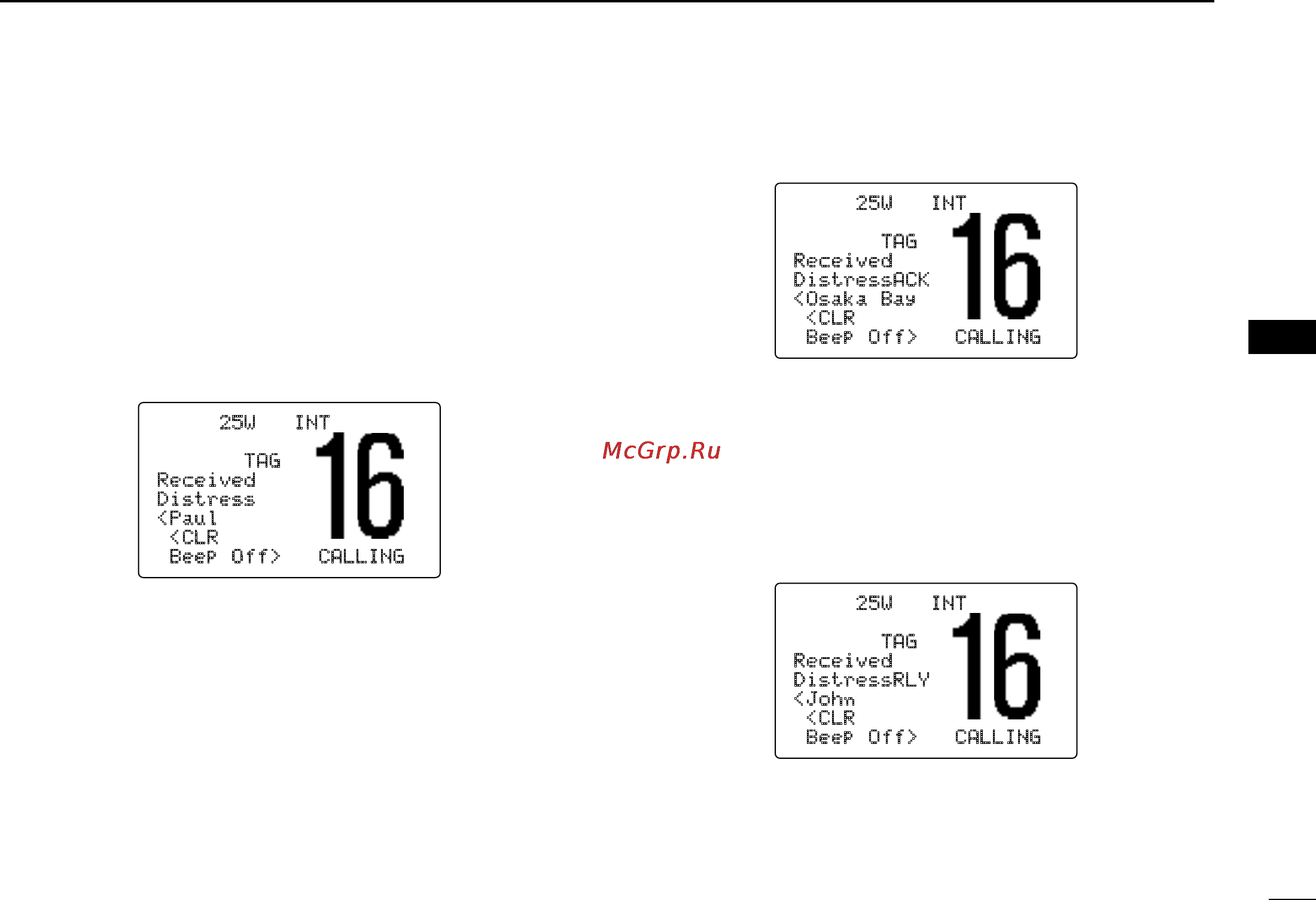

■ Receiving DSC calls
D Receiving a distress call
While monitoring Channel 70 and a distress call is received:
➥ The emergency alarm sounds for 2 minutes.
• Push [CLR] to stop the alarm.
➥ “Received Distress” appears in the display, then
Channel 16 is automatically selected.
➥ Continue monitoring Channel 16 as a coast station may
require assistance.
D Receiving a distress acknowledgement
While monitoring Channel 70 and a distress acknowledge-
ment to other ship is received:
➥ The emergency alarm sounds for 2 minutes.
• Push [CLR] to stop the alarm.
➥ “Received DistressACK” appears in the display,
then Channel 16 is automatically selected.
D Receiving a distress relay call
While monitoring Channel 70 and a distress relay acknowl-
edgement is received:
➥ The emergency alarm sounds for 2 minutes.
• Push [CLR] to stop the alarm.
➥ “Received DistressRLY” appears in the display,
then Channel 16 is automatically selected.
25W INT
TAG
Received
DistressRLY
<John
<CLR
Beep Off> CALLING
25W INT
TAG
Received
Distress
<Paul
<CLR
Beep Off> CALLING
25W INT
TAG
Received
DistressACK
<Osaka Bay
<CLR
Beep Off> CALLING
