Icom IC-M504 [62/80] D beep tone
![Icom IC-M504 [62/80] D beep tone](/views2/1074288/page62/bg3e.png)
56
8

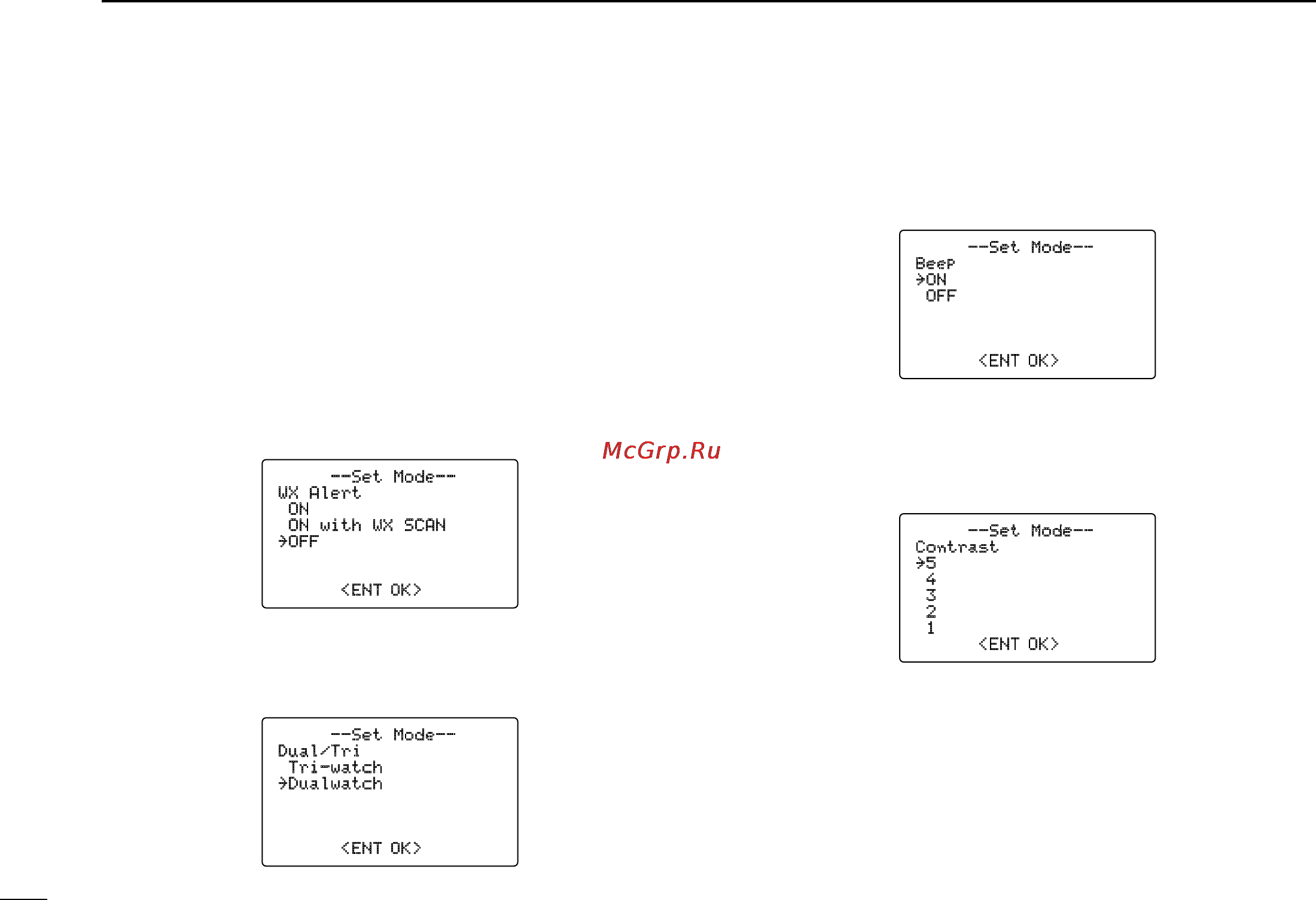

SET MODE
New2001
D Weather alert
A NOAA broadcast station transmits a weather alert tone
before important weather information.
When “ON” is selected, the previously selected (used)
weather channel is checked any time during standby or while
scanning.
When “ON with WX SCAN” is selected, the weather
channels are checked in sequence during standby or while
scanning.
The “WX ALERT” indicator blinks until the transceiver is op-
erated after the transceiver detects the alert.
• “WX ALERT” appears instead of “WX” indication when the function
is set ON.
D Dual/Tri-watch
This item can be selected as Dualwatch or Tri-watch. (p. 14)
D Beep tone
You can select the silent operation by turning beep tones
OFF or you can have confirmation beeps sound at the push
of a key by turning beep tones ON.
D LCD contrast
The LCD contrast can be adjustable to 8 levels. The level 1
is the lowest contrast, and the level 8 is the highest contrast.
--Set Mode--
Dual/Tri
Tri-watch
˘Dualwatch
<ENT OK>
Default: Dualwatch
--Set Mode--
WX Alert
ON
ON with WX SCAN
˘OFF
<ENT OK>
Default: OFF
--Set Mode--
Beep
˘ON
OFF
<ENT OK>
Default: ON
--Set Mode--
Contrast
˘5
4
3
2
1
<ENT OK>
Default: 5
