27
6
DSC OPERATION
New2001
6
e Rotate [DIAL] to select the desired pre-programmed
individual address or “
Manual Input,” push [DIAL•
ENTER].
• The ID code for the individual call can be set in advance. (p. 17)
• When “Manual Input” is selected, set the 9-digit MMSI
number for the individual you wish to call by rotating [DIAL].
1st digit must not be ‘0’.
r Rotate [DIAL] to select a desired intership channel, push
[DIAL•ENTER].
• Intership channels are already preset into the transceiver in rec-
ommended order.
t Push [DIAL•ENTER] to transmit the individual call.
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.

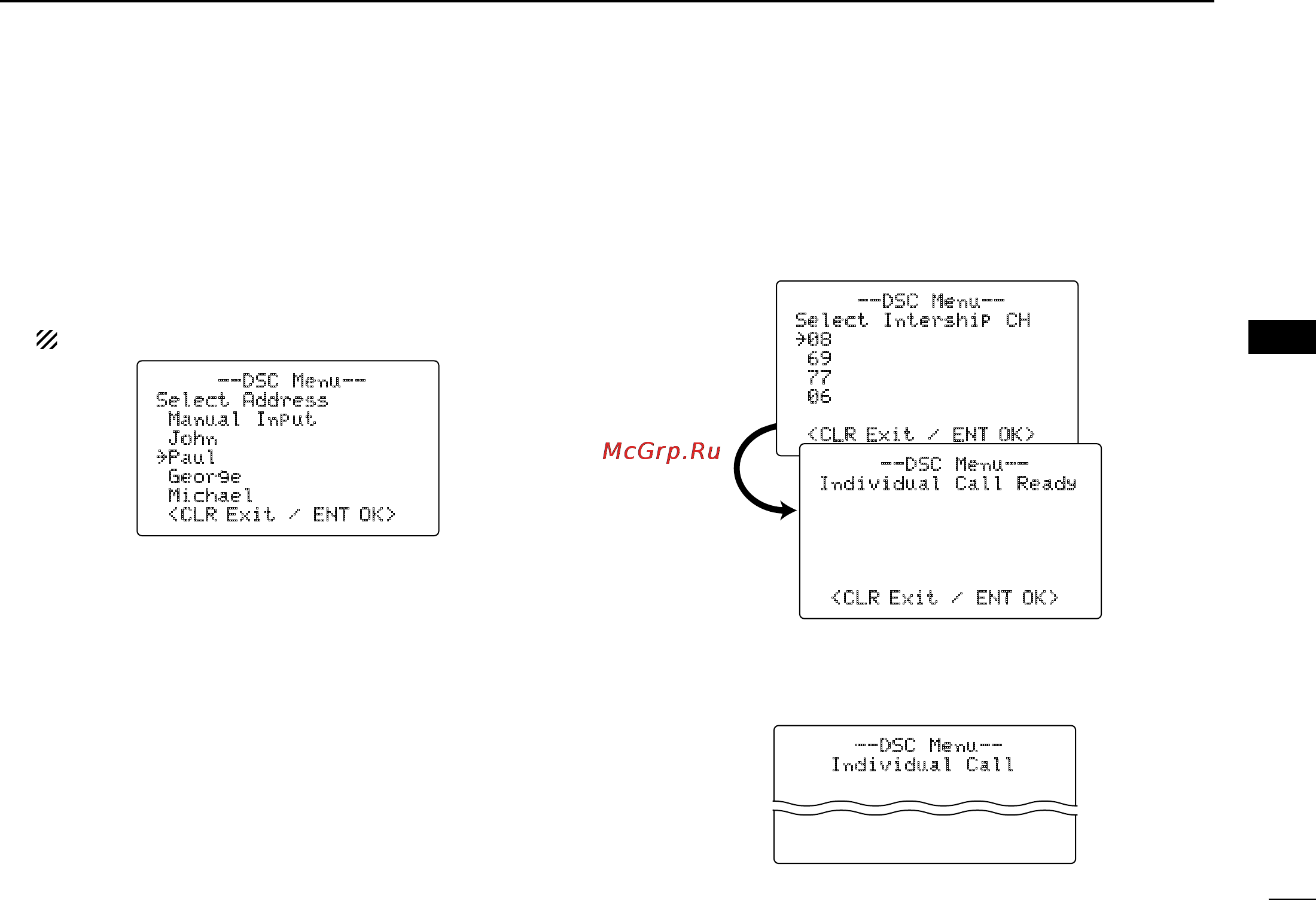

--DSC Menu--
Individual Call
Transmitting
--DSC Menu--
Select Intership CH
˘08
69
77
06
<CLR Exit / ENT OK>
--DSC Menu--
Individual Call Ready
<CLR Exit / ENT OK>
--DSC Menu--
Select Address
Manual Input
John
˘Paul
George
Michael
<CLR Exit / ENT OK>
