Icom IC-M504 [13/80] Basic operation
![Icom IC-M504 [13/80] Basic operation](/views2/1074288/page13/bgd.png)
7
3
BASIC OPERATION
New2001
3
D
U.S.A., international and Canadian channels
The IC-M504 is pre-programmed with 57 U.S.A., 57 inter-
national and 61 Canadian channels. These channel groups
may be specified for the operating area.
q Push [CH/WX•DUAL•U/I/C] to select a regular channel.
•
If a weather channel appears, push [CH/WX•DUAL•U/I/C] again.
w While pushing and holding [H/L], push [CH/WX•DUAL•
U/I/C] to change the channel group, if necessary.
• U.S.A., International and Canadian channel groups can be se-
lected in sequence.
e Rotate [DIAL] to select a channel.
• “DUP” appears for duplex channels.
D Weather channels
The IC-M504 has 10 pre-programmed weather channels.
These are used for monitoring broadcasts from NOAA (Na
-
tional Oceanographic and Atmospheric Administration.)
The transceiver can automatically detect a weather alert
tone on the selected weather channel while receiving the
channel, during standby on a regular channel or while scan
-
ning. (p. 56)
q Push [CH/WX•DUAL•U/I/C] once or twice to select a
weather channel.
• “WX” appears when a weather channel is selected.
• “WX ALERT” appears when the Weather Alert function is in
use. (p. 56)
w Rotate [DIAL] to select a channel.

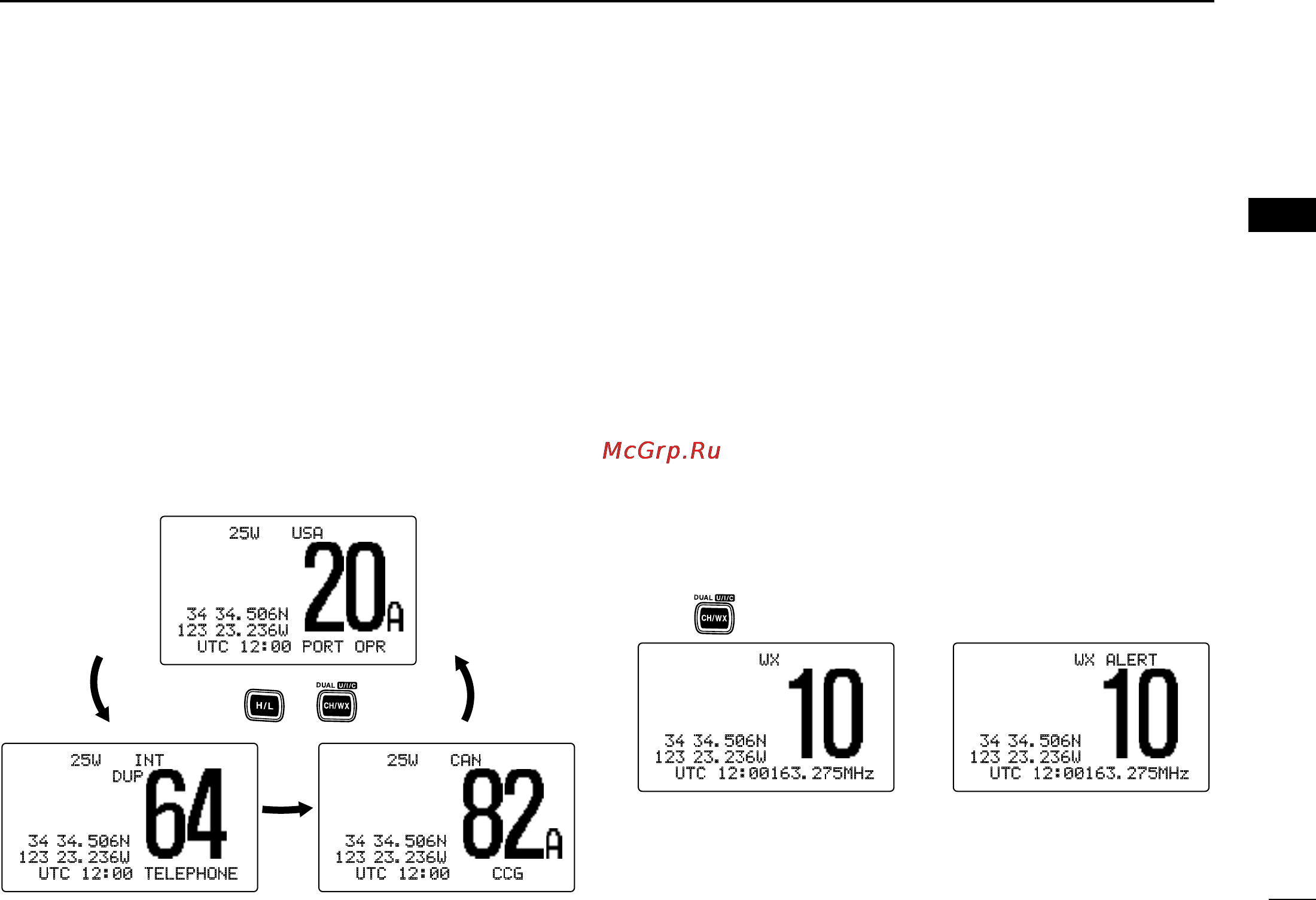

25W USA
34 34.506N
123 23.236W
UTC 12:00 PORT OPR
25W INT
DUP
34 34.506N
123 23.236W
UTC 12:00 TELEPHONE
25W CAN
34 34.506N
123 23.236W
UTC 12:00 CCG
Push +
WX ALERT
34 34.506N
123 23.236W
UTC 12:00163.275MHz
WX
34 34.506N
123 23.236W
UTC 12:00163.275MHz
Push once or twice
When weather alert is OFF. When weather alert is ON.
