Icom IC-M504 [32/80] D transmitting an individual call
![Icom IC-M504 [32/80] D transmitting an individual call](/views2/1074288/page32/bg20.png)
26
6
DSC OPERATION
New2001
i After receiving the acknowledgment, reply using the mi-
crophone.
➥ A distress alert contains (default);
• Nature of distress : Selected nature of the distress
• Position data : GPS or manual input position data is held
for 23.5 hrs or until the power is turned
OFF.
➥ The distress call is repeated every 3.5–4.5 min., until
receiving an ‘acknowledgement.’
➥ Push [CLR] to cancel the ‘Call repeat’ mode.
➥ “??” may blink instead of position and time indications
when the GPS data is invalid, or has not been manually
updated after 4 hours.
■ Transmitting DSC calls
To ensure correct operation of the DSC function, please
make sure you set the squelch correctly. (p. 8)
D Transmitting an individual call
The individual call function allows you to transmit a DSC sig-
nal to a specific ship only.

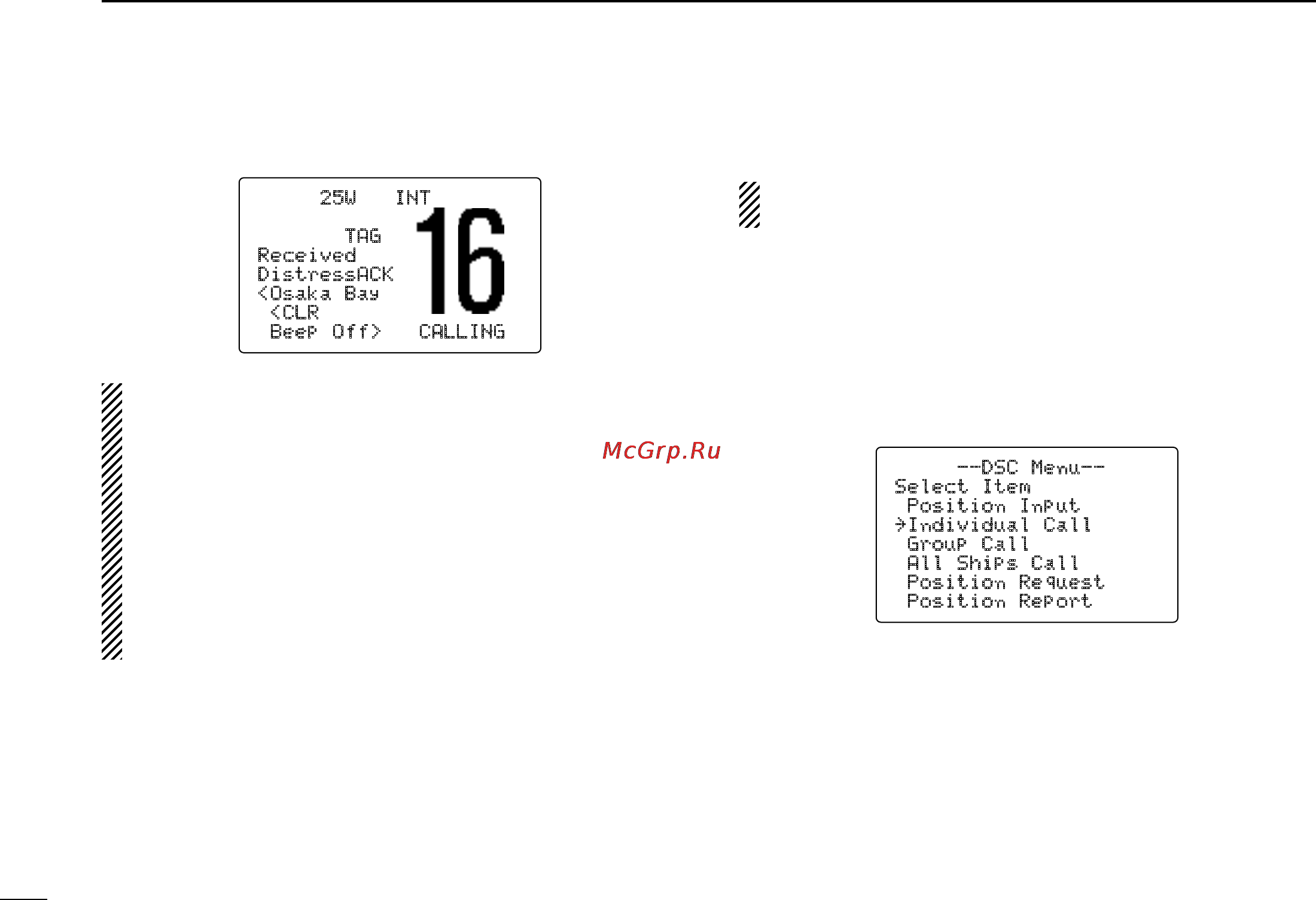

q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Individual Call,” push
[DIAL•ENTER].
25W INT
TAG
Received
DistressACK
<Osaka Bay
<CLR
Beep Off> CALLING
--DSC Menu--
Select Item
Position Input
˘Individual Call
Group Call
All Ships Call
Position Request
Position Report
