Icom IC-M504 [75/80] Specifications and options
![Icom IC-M504 [75/80] Specifications and options](/views2/1074288/page75/bg4b.png)
69
11
SPECIFICATIONS AND OPTIONS
New2001
11

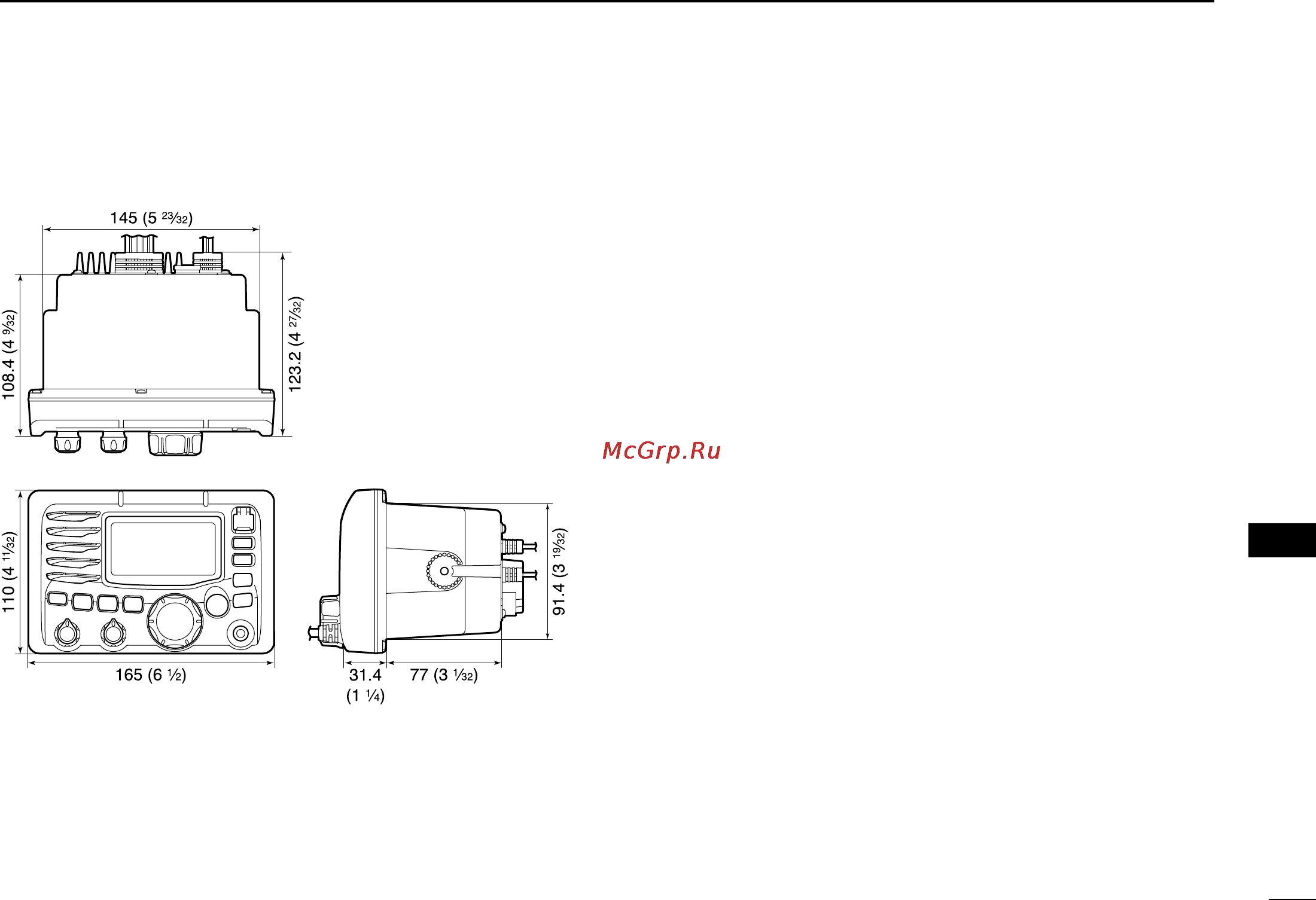

D Dimensions
■ Options
• MB-75 flush mount kit
For mounting the transceiver to a panel.
• HM-162
commandmic iii™
External microphone-type controller. Provides optional inter-
com operation. 6 m (20 feet) microphone cable and mount-
ing base included. Black and white colors are available.
Do not connect the HM-162 to the OPC-999.
• HM-157
commandmic ii™
External microphone-type controller. Provides optional inter-
com operation. 6 m (20 feet) microphone cable and mount-
ing base included. Black and white colors are available.
Do not connect the HM-157 to the OPC-1541.
• OPC-1541
microphone extension cable
6 m (20 feet) microphone extension cable for optional
HM-162 commandmic iii™. Up to 2 OPC-1541 can be con-
nected. (18 m; 60 feet maximum)
• OPC-999
microphone extension cable
6 m (20 feet) microphone extension cable for optional
HM-157 commandmic ii™. Up to 2 OPC-999 can be con-
nected. (18 m; 60 feet maximum)
• UT-112
voice scrambler unit
Ensures private communications. 32 codes are available.
Not available in some countries.
Unit: mm (inch)
110 (4
11
Ú
32
)
108.4 (4
9
Ú
32
)
165 (6
1
Ú
2
)
145 (5
23
Ú
32
)
31.4
(1
1
Ú
4
)
91.4 (3
19
Ú
32
)
77 (3
1
Ú
32
)
123.2 (4
27
Ú
32
)
