36
6
DSC OPERATION
New2001
D Transmitting a polling request call
Transmit a polling request call when you want to know if a
specific vessel is within communication range.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Polling Request,” push
[DIAL•ENTER].
e Rotate [DIAL] to select the desired pre-programmed
individual address or “
Manual Input,” push [DIAL•
ENTER].
• The ID code can be set in advance. (p. 17)
• When “Manual Input” is selected, set the 9-digit MMSI
number for the individual you wish to call by rotating [DIAL].
r Push [DIAL•ENTER] to transmit the polling request call.
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.

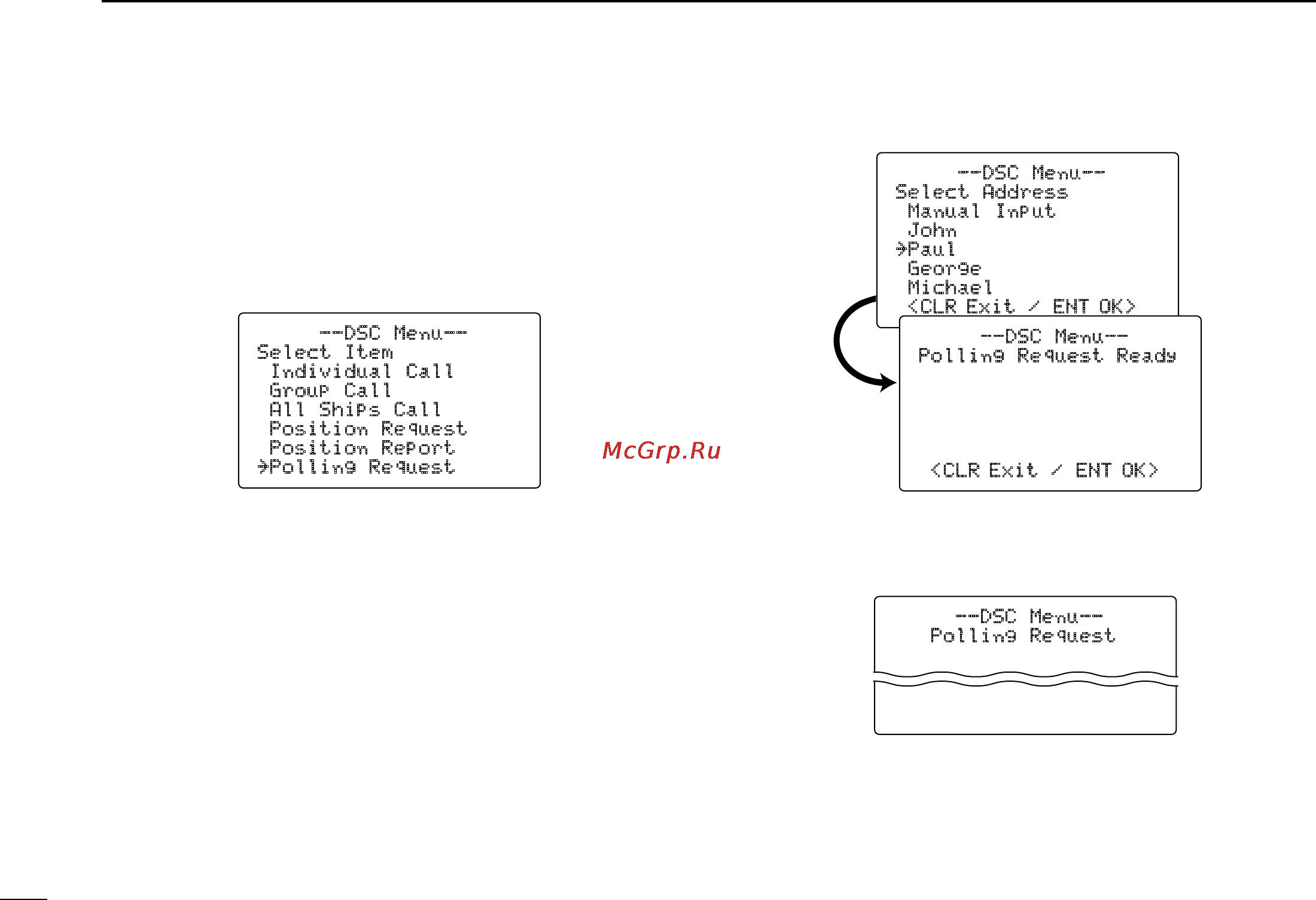

--DSC Menu--
Polling Request
Transmitting
--DSC Menu--
Select Item
Individual Call
Group Call
All Ships Call
Position Request
Position Report
˘Polling Request
--DSC Menu--
Select Address
Manual Input
John
˘Paul
George
Michael
<CLR Exit / ENT OK>
--DSC Menu--
Polling Request Ready
<CLR Exit / ENT OK>
