DSC OPERATION
New2001
r Rotate [DIAL] to select a desired intership channel, push
[DIAL•ENTER].
• Intership channels are already preset into the transceiver in rec-
ommended order.
t Push [DIAL•ENTER] to transmit the group call.
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.

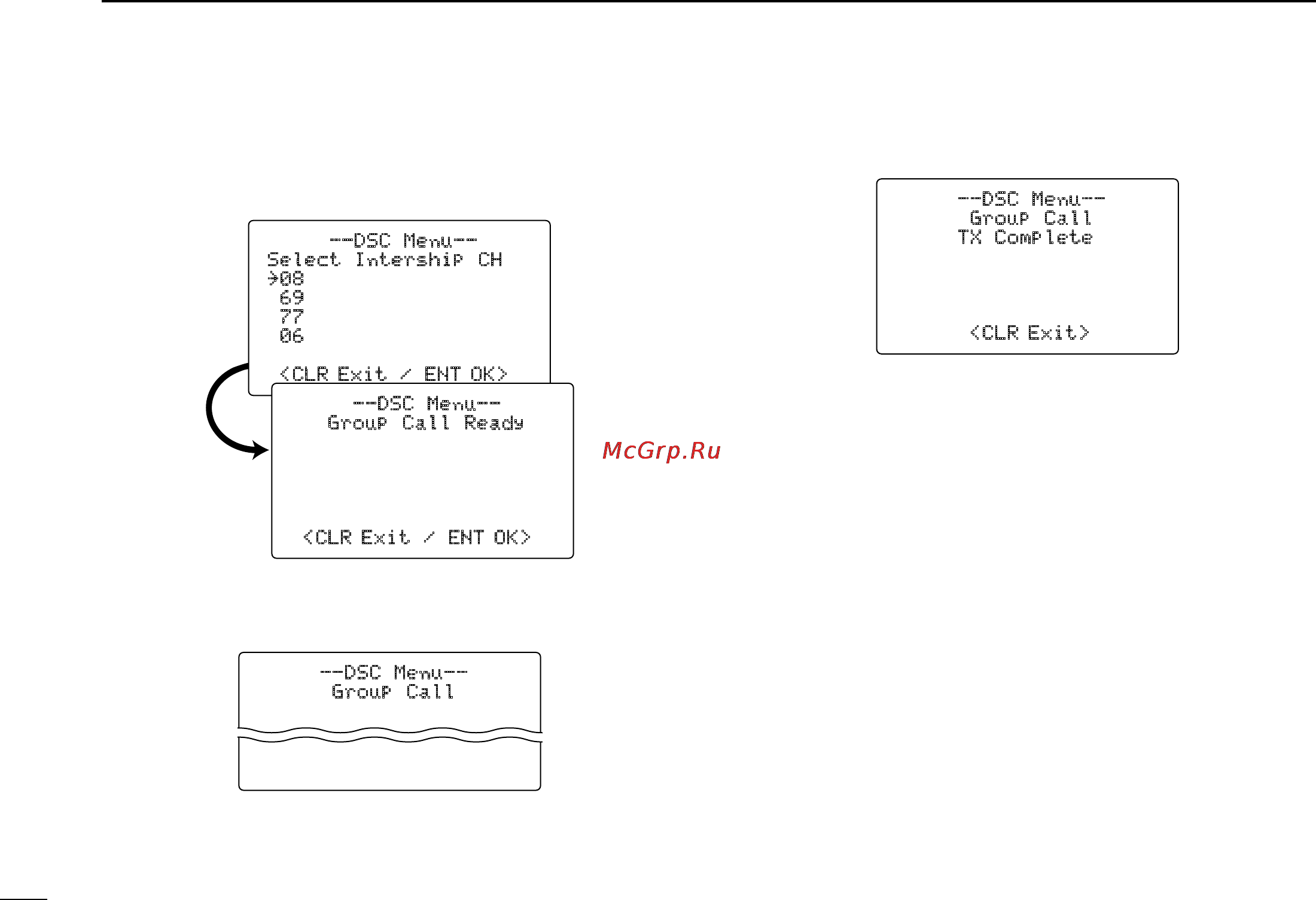

y After the group call has been transmitted, the following
indication is displayed.
u Push [CLR] to exit and the transceiver selects the inter-
ship channel specified in step
r automatically.
• Even if [CLR] hasn’t been pushed, the transceiver selects the
specified intership channel in step r automatically after 2 sec.
of inactivity.
--DSC Menu--
Group Call
Transmitting
--DSC Menu--
Group Call
TX Complete
<CLR Exit>
--DSC Menu--
Select Intership CH
˘08
69
77
06
<CLR Exit / ENT OK>
--DSC Menu--
Group Call Ready
<CLR Exit / ENT OK>
