46
6
DSC OPERATION
New2001
D Other messages
q Rotate [DIAL] to select “Other,” push [DIAL•ENTER].
w Rotate [DIAL] to scroll to the desired message, push
[DIAL•ENTER].
• Messages which are blinking have not been read.
e Rotate [DIAL] to scroll the message.
• The stored message has various information, depending on the
type of distress call.

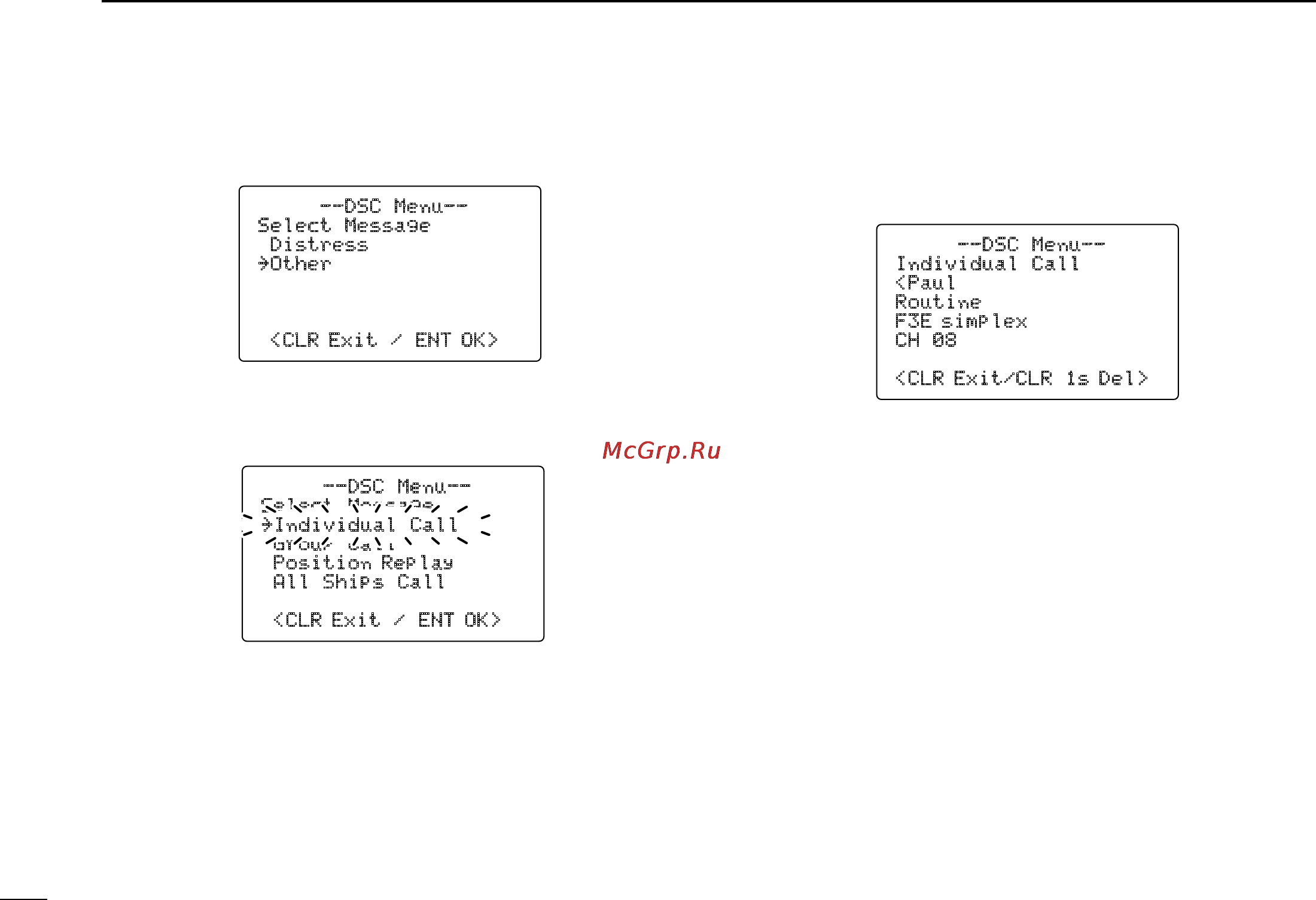

--DSC Menu--
Individual Call
<Paul
Routine
F3E simplex
CH 08
<CLR Exit/CLR 1s Del>
r Push [CLR] to exit or push [CLR] for 1 sec. to delete the
displayed message and returns to the DSC menu.
--DSC Menu--
Select Message
Distress
˘Other
<CLR Exit / ENT OK>
--DSC Menu--
Select Message
-Individual Call
Group Call
Position Replay
All Ships Call
<CLR Exit / ENT OK>
˘Individual Call
