49
6
DSC OPERATION
New2001
6
D NMEA Output
Select an NMEA Output function from OFF, All Station or
List Station.
When receiving position acknowledgment, the transceiver
outputs it to the external equipment via the NMEA connector.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Set up,” push [DIAL•ENTER].
e Rota te [DIA L]
to select “N ME A O u t p u t,”
push
[DIAL•ENTER]
.
r Rotate [DIAL]
to s
elect the NMEA Output function from
OFF, All Station or List Station.
• List Station : Outputs the position data from the specified ves-
sels listed on the DSC individual ID screen.
• All Station : Outputs the position data from all vessels.
• OFF : Does not output any position data to external
equipment.
t Push [DIAL•ENTER] to set the condition.
• Push [CLR] to cancel and return to the set up menu.

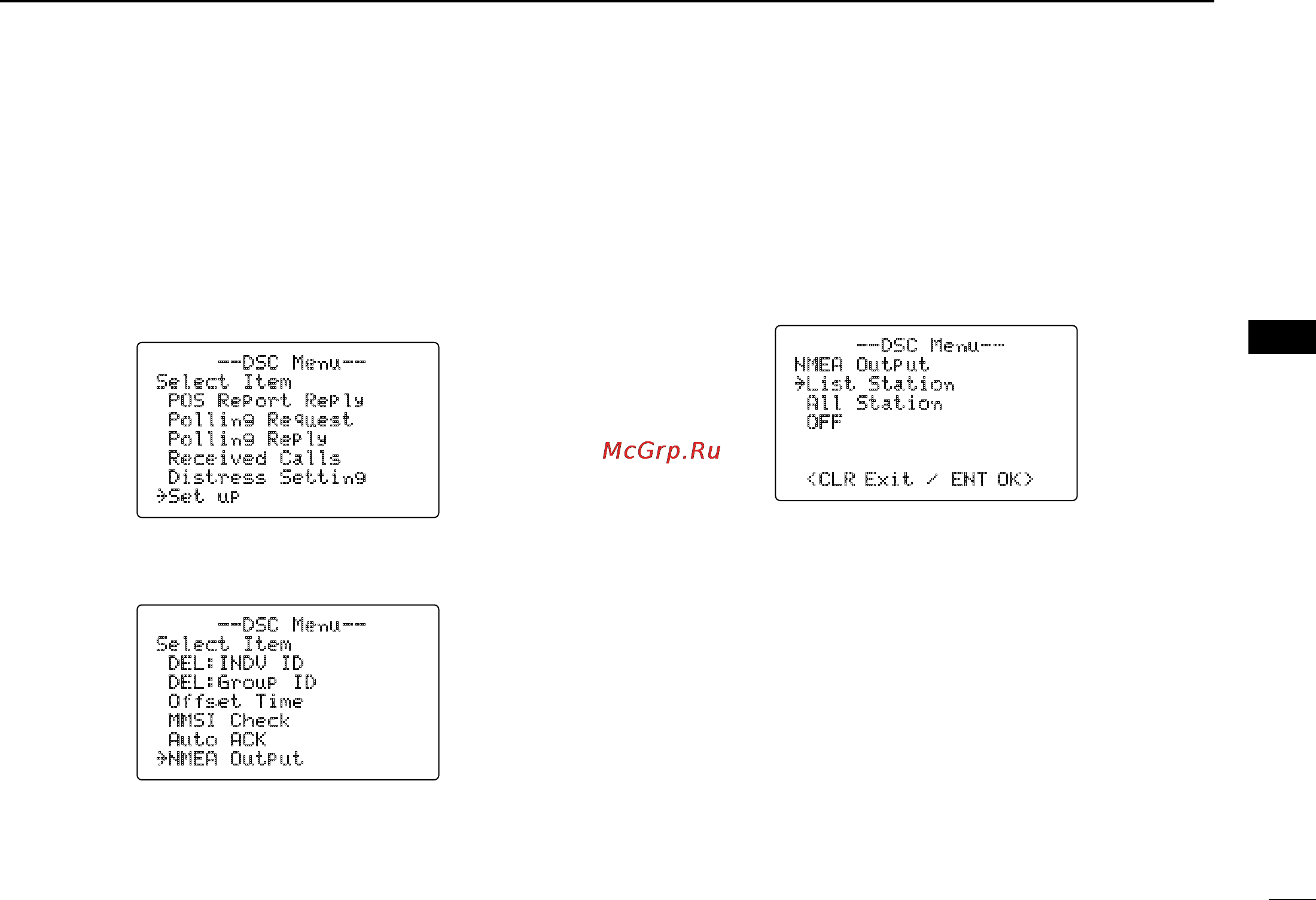

--DSC Menu--
Select Item
DEL:INDV ID
DEL:Group ID
Offset Time
MMSI Check
Auto ACK
˘NMEA Output
--DSC Menu--
Select Item
POS Report Reply
Polling Request
Polling Reply
Received Calls
Distress Setting
˘Set up
--DSC Menu--
NMEA Output
˘List Station
All Station
OFF
<CLR Exit / ENT OK>
