42
6
DSC OPERATION
New2001
D Receiving an individual call
While monitoring Channel 70 and an individual call is re-
ceived:
➥ The emergency alarm or beeps sound depending on the
received category.

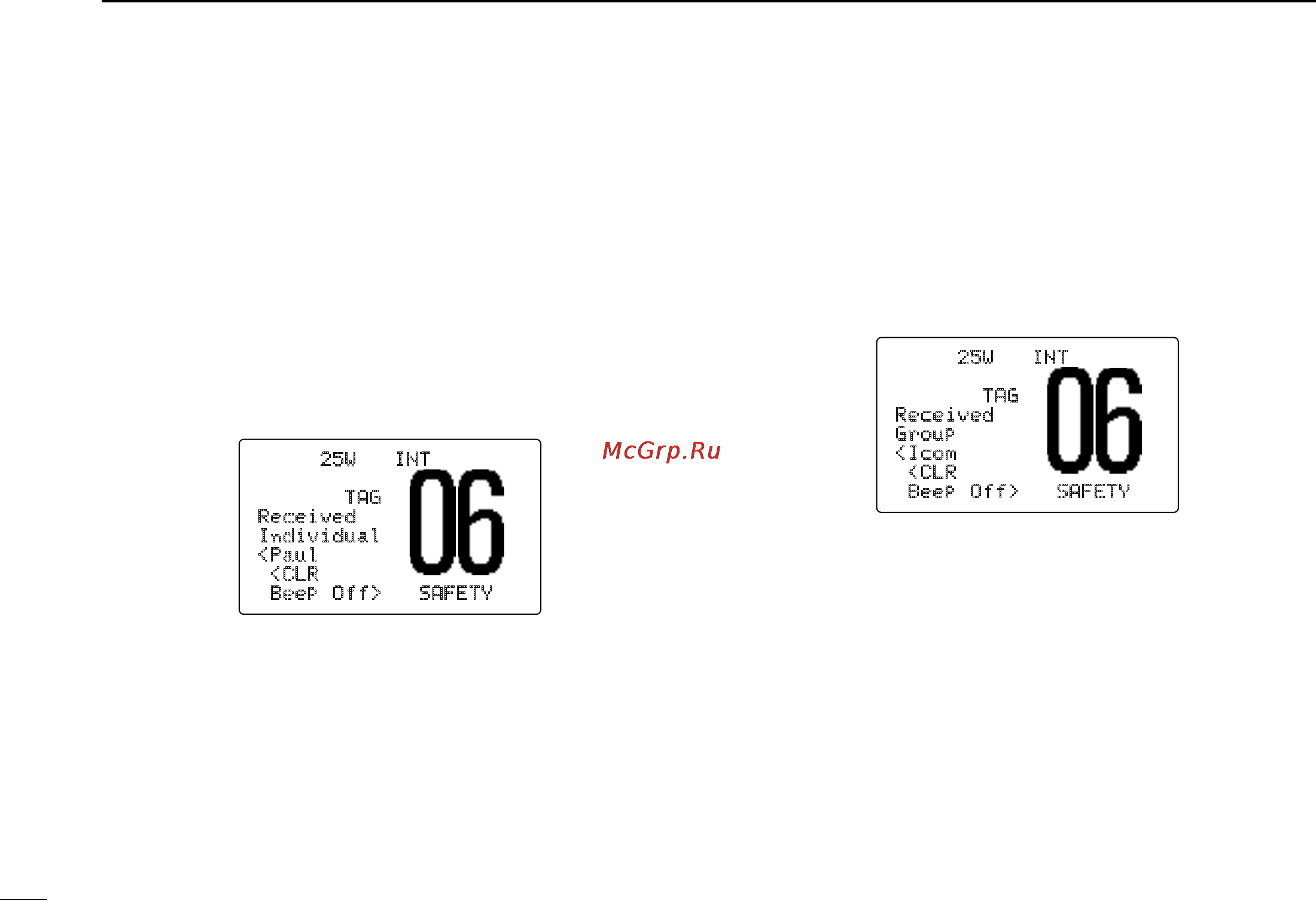

➥ “Received Individual” appears in the display.
➥ Push [CLR] to stop the beep, then push [DIAL•ENTER] to
reply the call and select the channel specified by the call
-
ing station for voice communication (depending on your
replying condition see p. 28 for individual acknowledge
-
ment call procedure for details.); push
[CLR] to ignore the
individual call.
D Receiving a group call
While monitoring Channel 70 and a group call is received:
➥ The emergency alarm or beeps sound depending on the
received category.
➥ “Received Group” appears in the display.
➥ Push [CLR] to stop the beep, then push [DIAL•ENTER]
to select the channel specified by the calling station for
voice communication; push
[CLR] to ignore the group call.
D Receiving an all ships call
While monitoring Channel 70 and an all ships call is re-
ceived:
➥ The emergency alarm sounds when the category is ‘Dis-
tress’ or ‘Urgency’; beeps sound for 2 minutes.
➥ “Received All Ships” appears in the display.
➥ Push [CLR] to stop the beep, then push [DIAL•ENTER]
to monitor channel 16 for an announcement from the call
-
ing vessel; push
[CLR] to ignore the call.
25W INT
TAG
Received
Individual
<Paul
<CLR
Beep Off> SAFETY
25W INT
TAG
Received
Group
<Icom
<CLR
Beep Off> SAFETY
