Icom IC-M504 [38/80] D transmitting a position request call
![Icom IC-M504 [38/80] D transmitting a position request call](/views2/1074288/page38/bg26.png)
32
6
DSC OPERATION
New2001

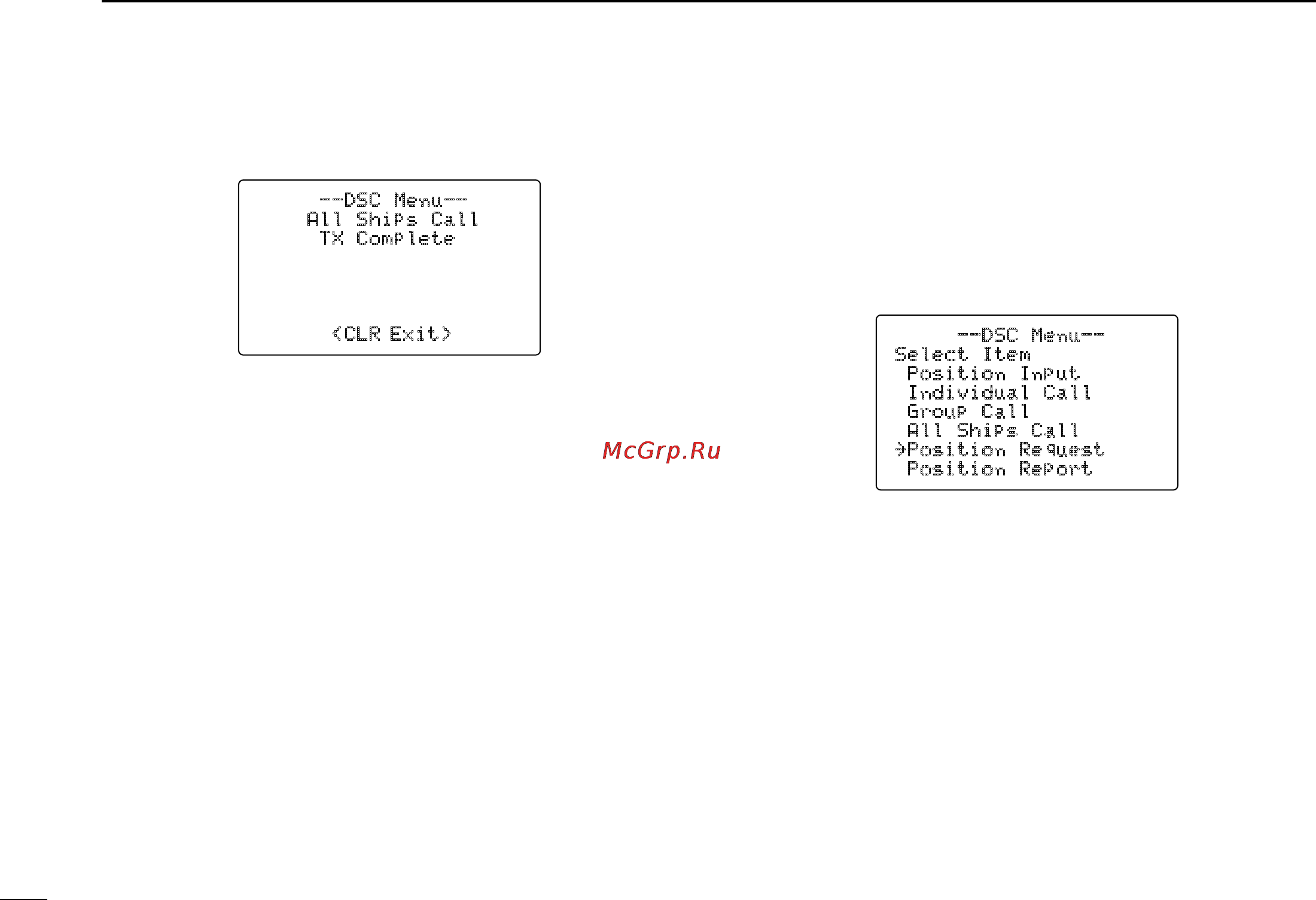

t After the all ships call has been transmitted, the following
indication is displayed.
y Push [CLR] to exit and the transceiver selects Channel
16 automatically.
• Even if [CLR] hasn’t been pushed, the transceiver automatically
selects Channel 16 after 2 sec. of inactivity.
D Transmitting a position request call
Transmit a position request call when you want to know a
specific ship’s current position, etc.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Position Request,” push
[DIAL•ENTER].
--DSC Menu--
Select Item
Position Input
Individual Call
Group Call
All Ships Call
˘Position Request
Position Report
--DSC Menu--
All Ships Call
TX Complete
<CLR Exit>
