Icom IC-M504 [61/80] Set mode

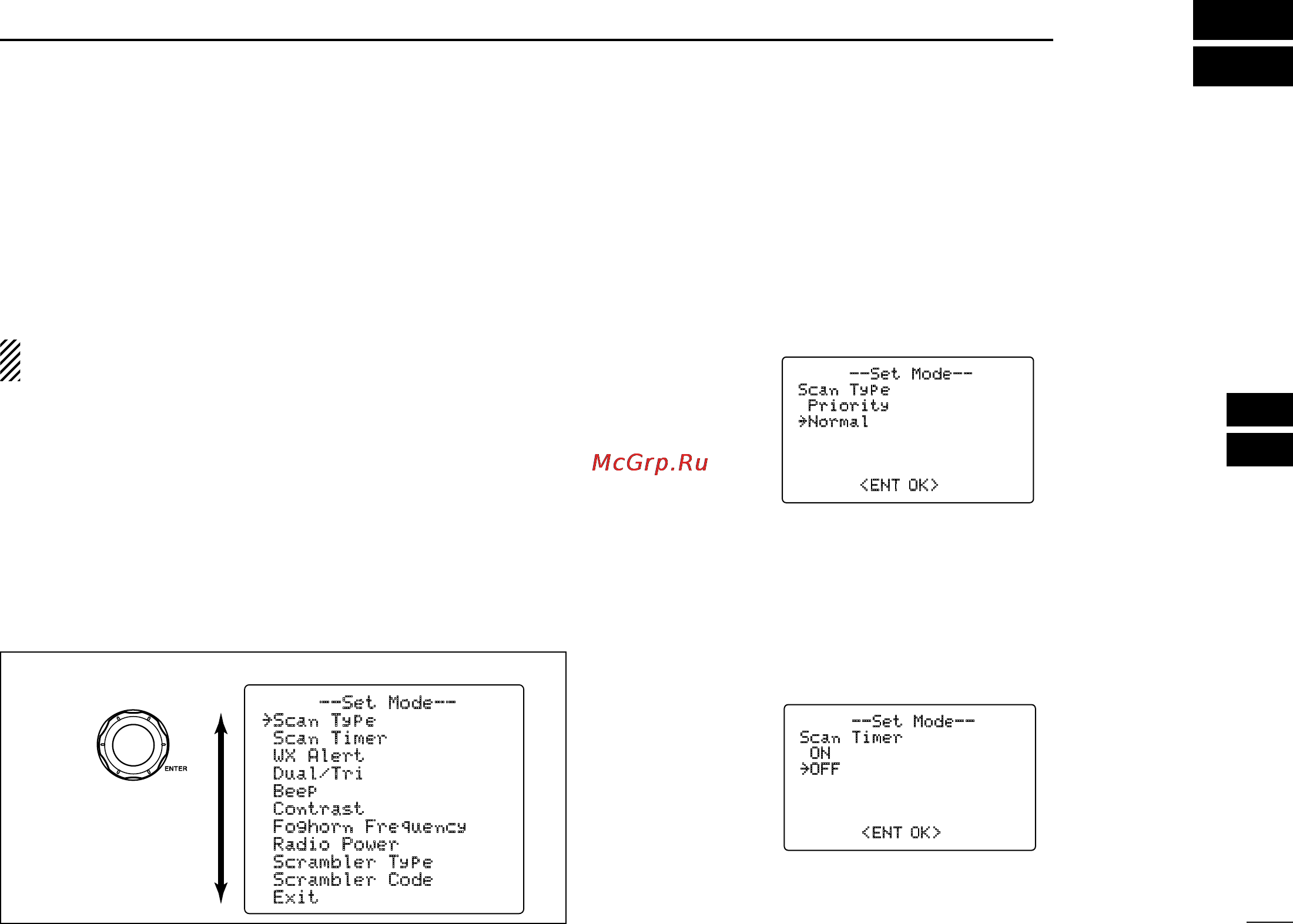

![Icom IC-M504 [61/80] Set mode](/views2/1074288/page61/bg3d.png)
55
8
SET MODE
7
8
■ Set mode programming
Set mode is used to change the conditions of the transceiver’s
functions: Scan type, Scan resume timer, Weather alert, Dual/
Tri-watch, Beep tone, LCD contrast, Automatic foghorn fre
-
quency, Radio power, Scrambler type* and Scrambler code.*
*Appears only when the optional scrambler unit is installed.
Available functions may differ depending on how they are
set by the dealer.
q
Turn power OFF.
w While pushing and holding
[16•9], turn power ON to enter
Set mode.
e After the display appears, release [16•9].
r
Rotate [DIAL] to select the desired item, push [DIAL•
ENTER].
t Rotate [DIAL] to select the desired condition of the item.
y
Push [CLR], or rotate [DIAL] to select “Exit,” then push
[DIAL•ENTER] to exit set mode and returns to normal op-
eration condition.
■ Set mode items
D Scan type
The transceiver has 2 scan types: Normal scan and Priority
scan. Normal scan searches all TAG channels in the se
-
lected channel group. Priority scan searches all TAG chan
-
nels in sequence while monitoring Channel 16.
D Scan resume timer
The scan resume timer can be selected as a pause (OFF)
or timer scan (ON). When OFF is selected, the scan pauses
until the signal disappears. When ON is selected, the scan
pauses 5 sec. and resumes even if a signal has been re
-
ceived on any other channel than Channel 16.
--Set Mode--
Scan Timer
ON
˘OFF
<ENT OK>
Default: OFF
Rotate
--Set Mode--
˘Scan Type
Scan Timer
WX Alert
Dual/Tri
Beep
Contrast
Foghorn Frequency
Radio Power
Scrambler Type
Scrambler Code
Exit
• SET MODE CONSTRUCTION
--Set Mode--
Scan Type
Priority
˘Normal
<ENT OK>
Default: Normal
