DSC OPERATION
New2001
6
D Receiving a geographical area call
While monitoring Channel 70 and a geographical area call
(for the area you are in) is received:
➥ Emergency alarm or beeps sound depending on the re-
ceived category.
➥ “Received Geographic” appears in the display.
➥ Push [CLR] to stop the beep, then push [DIAL•ENTER]
to change to the channel specified by the calling station
for voice communication; push other key to ignore the
geographical area call.
➥ Monitor the selected channel for an announcement from
the calling station.
When no GPS receiver is connected or if there is a prob-
lem with the connected receiver, all geographical area
calls are received, regardless of your position.
D Receiving a position request call
While monitoring Channel 70 and a position request call is
received:
➥ “Received POS Request” appears in the display.
➥ Push [CLR] to stop the beep, then push [DIAL•ENTER]
to reply to the position request call; push
[CLR] to ignore
the position request call.
D Receiving a position report call
While monitoring Channel 70 and a position report call is re-
ceived:
➥ “Received POS Report” appears in the display.
➥ Push [CLR] to stop the beep, then push [DIAL•ENTER]
to reply to the position report call; push
[CLR] to ignore
the position report call.

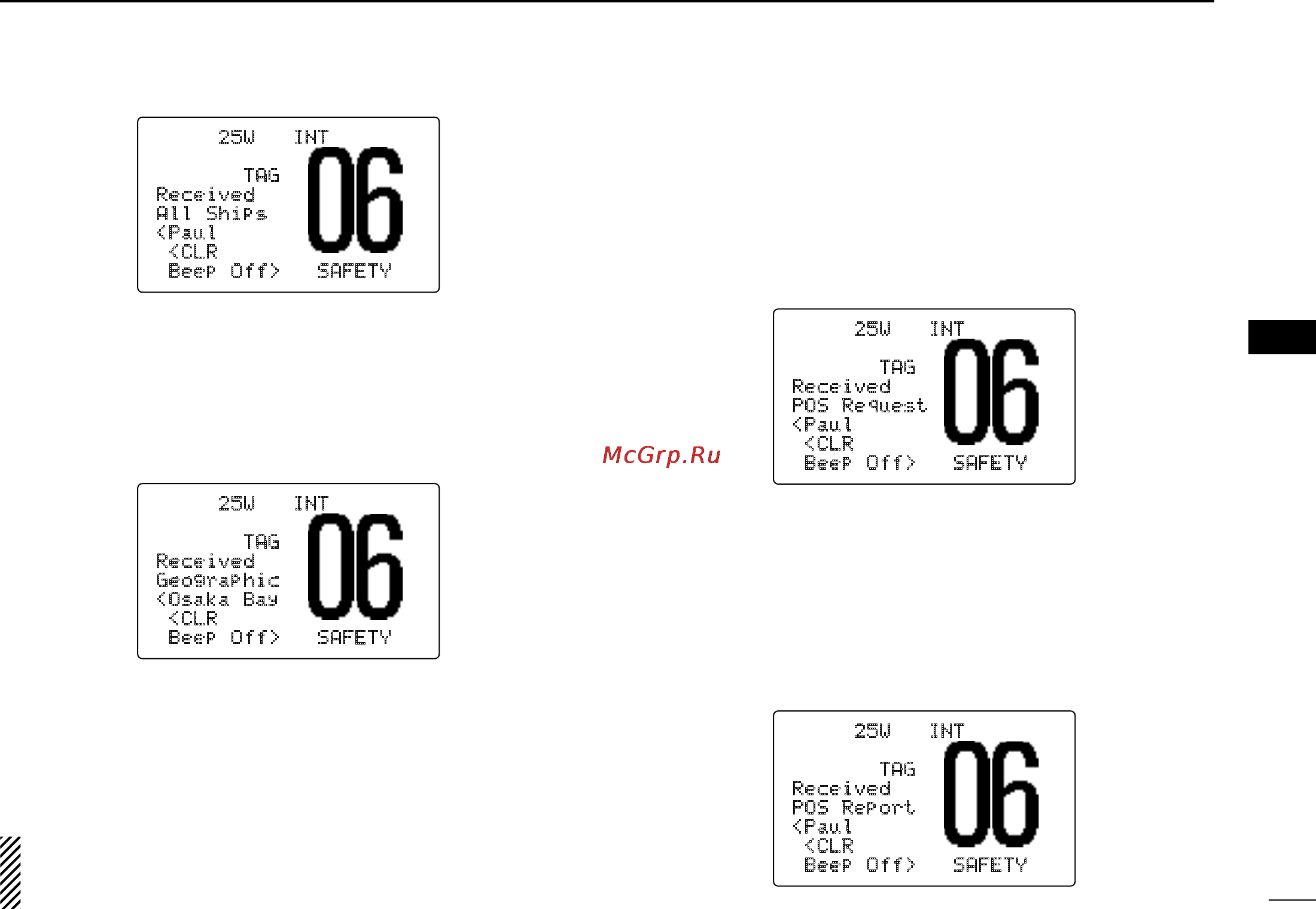

25W INT
TAG
Received
All Ships
<Paul
<CLR
Beep Off> SAFETY
25W INT
TAG
Received
POS Request
<Paul
<CLR
Beep Off> SAFETY
25W INT
TAG
Received
POS Report
<Paul
<CLR
Beep Off> SAFETY
25W INT
TAG
Received
Geographic
<Osaka Bay
<CLR
Beep Off> SAFETY
