Icom IC-M504 [35/80] D transmitting a group call
![Icom IC-M504 [35/80] D transmitting a group call](/views2/1074288/page35/bg23.png)
29
6
DSC OPERATION
New2001
6
r Rotate [DIAL] to select “Able to Comply” or “Un-
able to Comply,” push [DIAL•ENTER].
• When “Unable to Comply” is selected, “No Reason
Given” will be transmitted.
t Push [DIAL•ENTER] to transmit the acknowledgement
call to the selected station.
y After the individual acknowledgement call has been
transmitted, the specified channel (specified by the call
-
ing station) is selected automatically when “
Able to
Comply” is selected, or returns to the previous condition
(before entering the DSC menu) when “
Unable to
Comply” is selected in step r.
D Transmitting a group call
The group call function allows you to transmit a DSC signal
to a specific group only.
q Push [MENU] to enter the DSC menu.
w Ro tat e [D IAL ] to se lec t “ Gr o u p C al l ,” pu sh
[DIAL•ENTER].

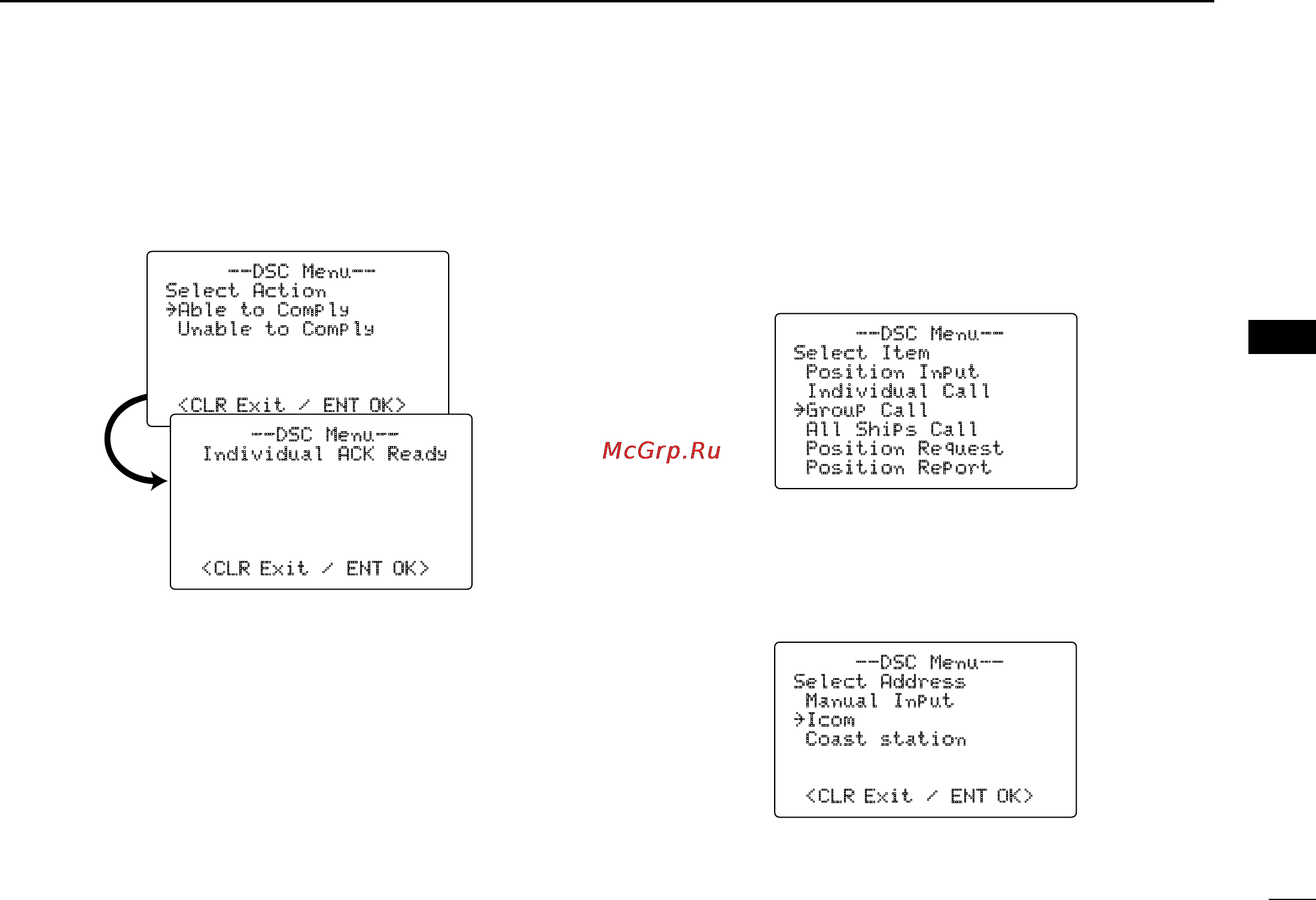

--DSC Menu--
Select Item
Position Input
Individual Call
˘Group Call
All Ships Call
Position Request
Position Report
e
Rotate [DIAL] to select the desired pre-programmed group
address or “Manual Input,” push [DIAL•ENTER].
• The ID code for the group call can be set in advance. (p. 19)
• When “Manual Input” is selected, set the 8-digit ID code
for the group you wish to call by rotating [DIAL].
--DSC Menu--
Select Action
˘Able to Comply
Unable to Comply
<CLR Exit / ENT OK>
--DSC Menu--
Individual ACK Ready
<CLR Exit / ENT OK>
--DSC Menu--
Select Address
Manual Input
˘Icom
Coast station
<CLR Exit / ENT OK>
