20
6
DSC OPERATION
New2001
D Deleting Group ID
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Set up,” push [DIAL•ENTER].
e Rotate [DIAL]
to select “D EL: G rou p ID,” push
[DIAL•ENTER]
.
• When no address ID is programmed, “
No ID
” is displayed.
Push [CLR] to exit.
r Rotate [DIAL] to select the desired ID name for deleting.
t Push [DIAL•ENTER] to delete the group ID and return to
the set up menu.
y Push [CLR] or rotate [DIAL] to select “Exit,” push
[DIAL•ENTER].
• Returns to the DSC menu.
• Repeat again to return to the normal operation condition.

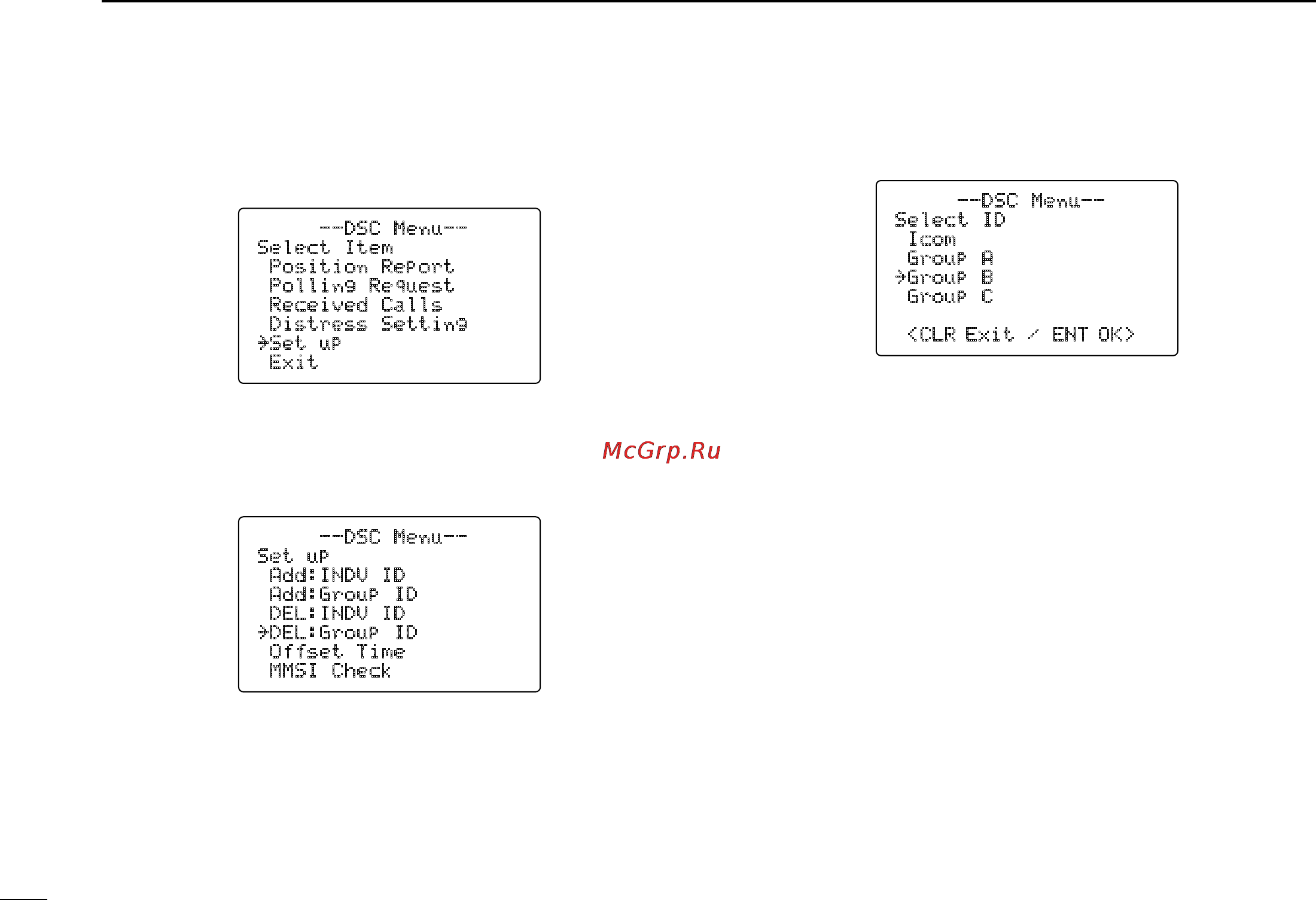

--DSC Menu--
Select Item
Position Report
Polling Request
Received Calls
Distress Setting
˘Set up
Exit
--DSC Menu--
Set up
Add:INDV ID
Add:Group ID
DEL:INDV ID
˘DEL:Group ID
Offset Time
MMSI Check
--DSC Menu--
Select ID
Icom
Group A
˘Group B
Group C
<CLR Exit / ENT OK>
