19
6
DSC OPERATION
New2001
6

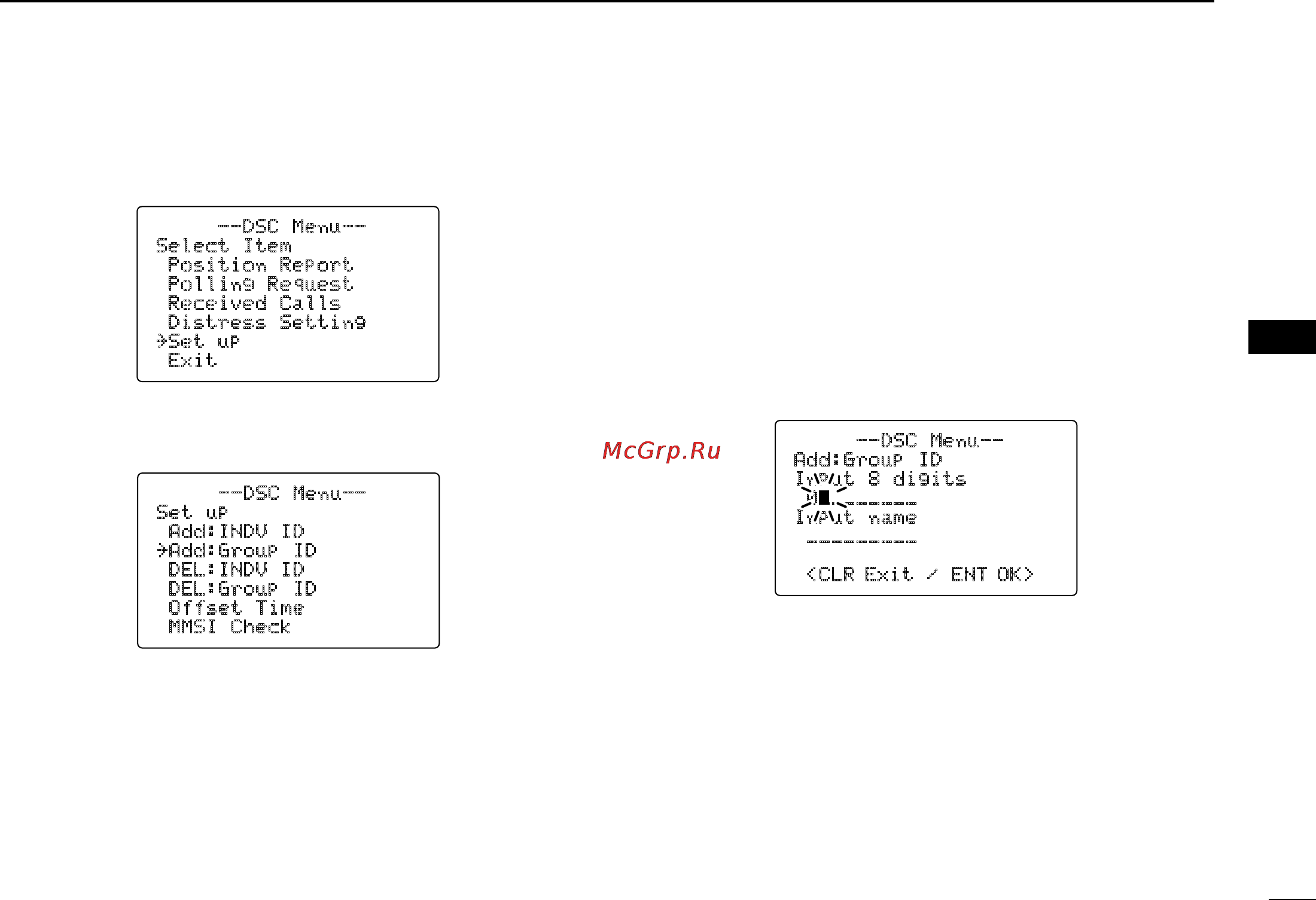

D Programming Group ID
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select “Set up,” push [DIAL•ENTER].
e
Rotate [DIAL]
to select “A dd: G rou p ID,” push
[DIAL•ENTER]
.
r Rotate [DIAL]
to s
et the group ID and ID name.
• The group ID is a unique number that you create for your group.
The ID name is an associated text name for that group.
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
• Push [CLR] to cancel and return to the set up menu.
• “Full ID” appears when 100 DSC address IDs are already
set.
• After entering an 8-digit ID code, push [DIAL•ENTER] or [16•9]
to enter a 10-character ID name.
• 1st digit ‘0’ is fixed for a group ID.
t After inputting, push [DIAL•ENTER] to program.
y Push [CLR] or rotate [DIAL] to select “Exit,” push
[DIAL•ENTER].
• Returns to the DSC menu.
• Repeat again to return to the normal operation condition.
--DSC Menu--
Select Item
Position Report
Polling Request
Received Calls
Distress Setting
˘Set up
Exit
--DSC Menu--
Add:Group ID
Input 8 digits
0________
Input name
_________
<CLR Exit / ENT OK>
--DSC Menu--
Set up
Add:INDV ID
˘Add:Group ID
DEL:INDV ID
DEL:Group ID
Offset Time
MMSI Check
