Icom IC-M504 [44/80] Dsc operation
![Icom IC-M504 [44/80] Dsc operation](/views2/1074288/page44/bg2c.png)
38
6
DSC OPERATION
New2001
Regardless of a GPS receiver (NMEA0183 ver. 2.0 or
3.01) connection, the current position/time information
appears in steps
r and t. If the information is not nec-
essary to be changed, push [DIAL•ENTER] or [16•9]
several times to skip the data input steps.

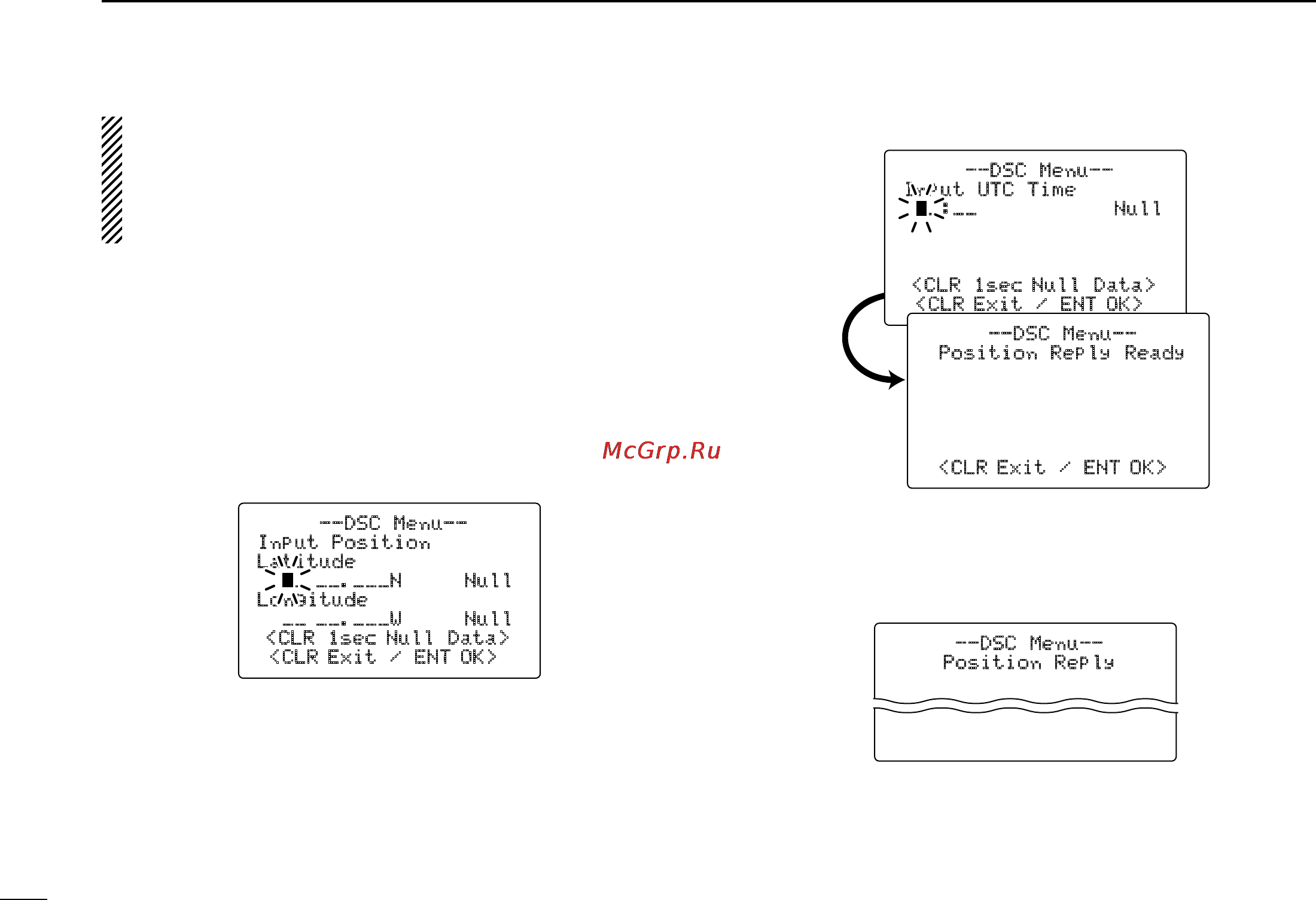

r The position information appears. Set your position (lati-
tude and longitude) data by rotating
[DIAL].
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
• Rotate [DIAL] to edit N; North latitude or S; South latitude when
the cursor is on the ‘N’ or ‘S’ position, and W; West longitude or
E; East longitude when the cursor is on the ‘W’ or ‘E’ position.
• Push [CLR] for 1 sec. to clear the latitude/
longitude
data.
• Push [CLR] to cancel and return to the DSC menu.
t After setting the position data, push [DIAL•ENTER] to set
the current UTC time. Set the current UTC time by rotat
-
ing
[DIAL], then push [DIAL•ENTER].
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
• Push [CLR] for 1 sec. to clear the UTC time data.
• Push [CLR] to cancel and return to the DSC menu.
y Push [DIAL•ENTER] to transmit the position request
reply call to the selected station.
• Your position data is transmitted, when [DIAL•ENTER] is
pushed.
--DSC Menu--
Position Reply
Transmitting
--DSC Menu--
Input Position
Latitude
__ __.___N Null
Longitude
__ __.___W Null
<CLR 1sec Null Data>
<CLR Exit / ENT OK>
--DSC Menu--
Input UTC Time
__:__ Null
<CLR 1sec Null Data>
<CLR Exit / ENT OK>
--DSC Menu--
Position Reply Ready
<CLR Exit / ENT OK>
