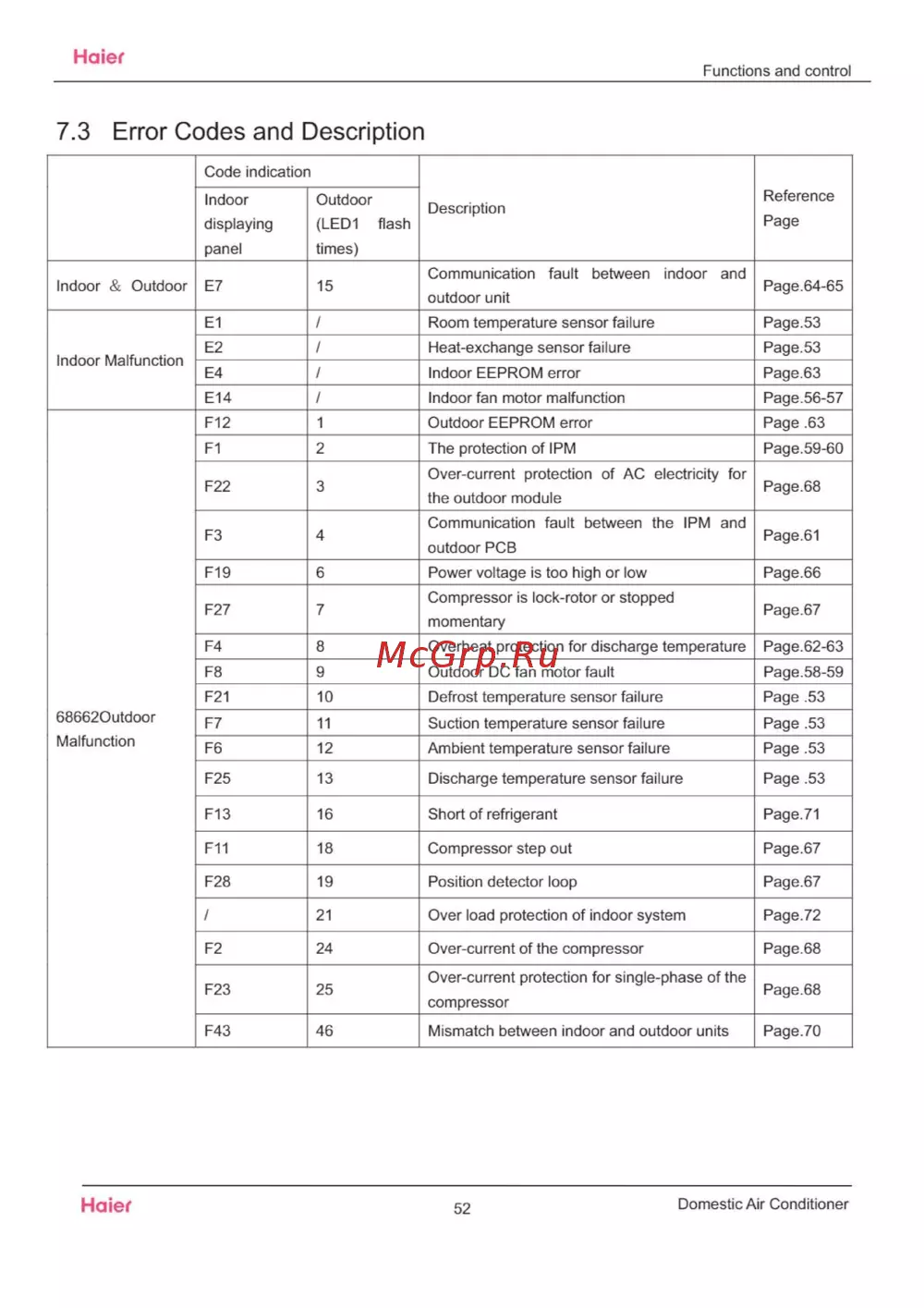

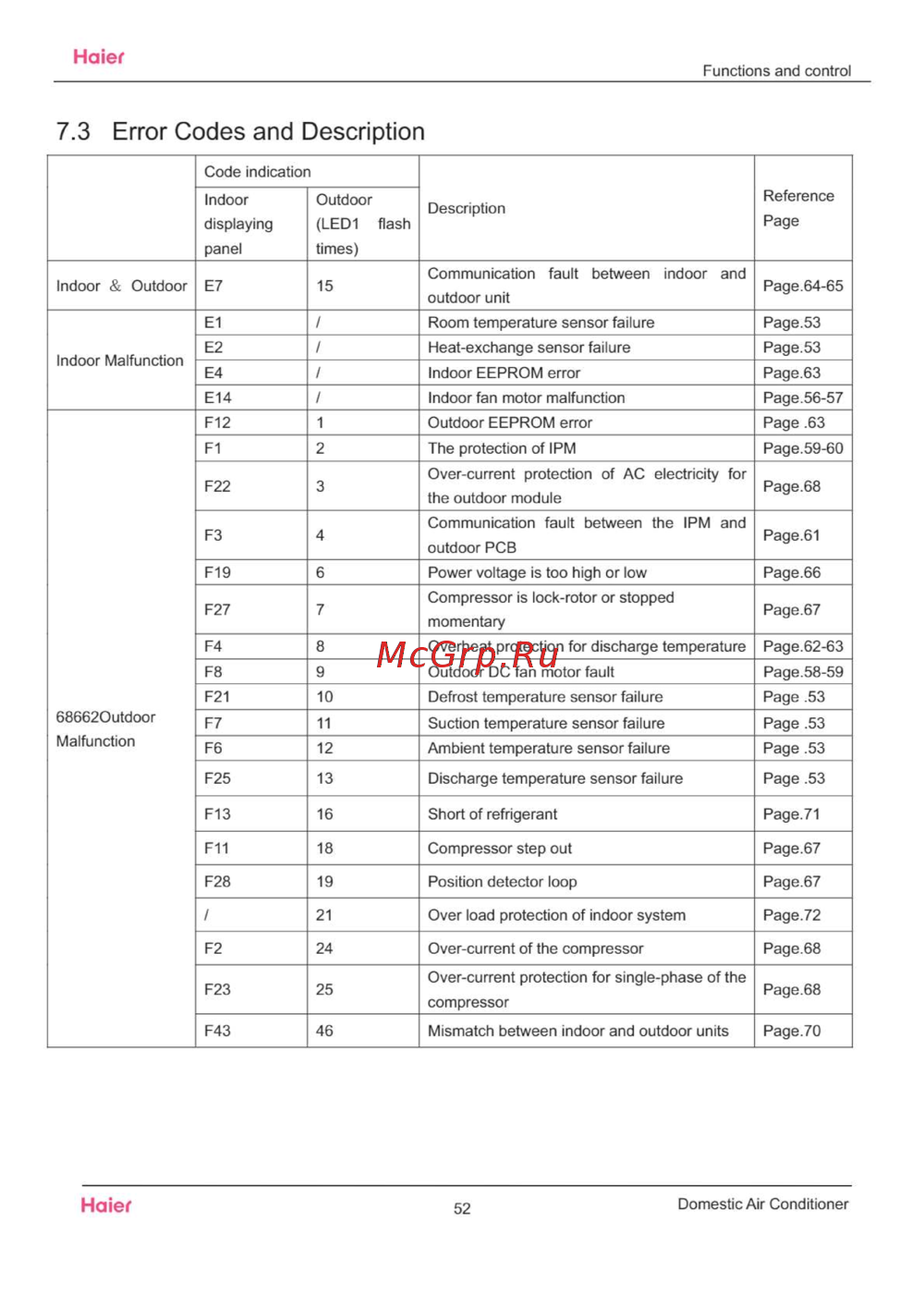

Haiei Functions and control 7 3 Error Codes and Description Code indication Indoor Outdoor Indoor Malfunction 68662Outdoor Malfunction Haier Reference Indoor Outdoor displaying LED1 flash panel times E7 15 E1 Room temperature sensor failure Page 53 E2 Heat exchange sensor failure Page 53 E4 Indoor EEPROM error Page 63 E14 Indoor fan motor malfunction Page 56 57 F12 1 Outdoor EEPROM error Page 63 F1 2 The protection of IPM Page 59 60 F22 3 F3 4 F19 6 F27 7 F4 8 Overheat protection for discharge temperature Page 62 63 F8 9 Outdoor DC fan motor fault Page 58 59 F21 10 Defrost temperature sensor failure Page 53 F7 11 Suction temperature sensor failure Page 53 F6 12 Ambient temperature sensor failure Page 53 F25 13 Discharge temperature sensor failure Page 53 F13 16 Short of refrigerant Page 71 F11 18 Compressor step out Page 67 F28 19 Position detector loop Page 67 21 Over load protection of indoor system Page 72 F2 24 Over current of the compressor Page 68 F23 25 F43 46 Description Page Communication fault between indoor and outdoor unit Over current protection of AC electricity for the outdoor module Communication fault between the IPM and outdoor PCB Power voltage is too high or low Page 68 Page 61 Page 66 Compressor is lock rotor or stopped Page 67 momentary Over current protection for single phase of the compressor Mismatch between indoor and outdoor units 52 Page 64 65 Page 68 Page 70 Domestic Air Conditioner
